680009 ID CCCB 44/230/500-1050 DT8 NFC FV1

< Back

L135 x W56.5 x H21 mm

WT: 0.14 kg

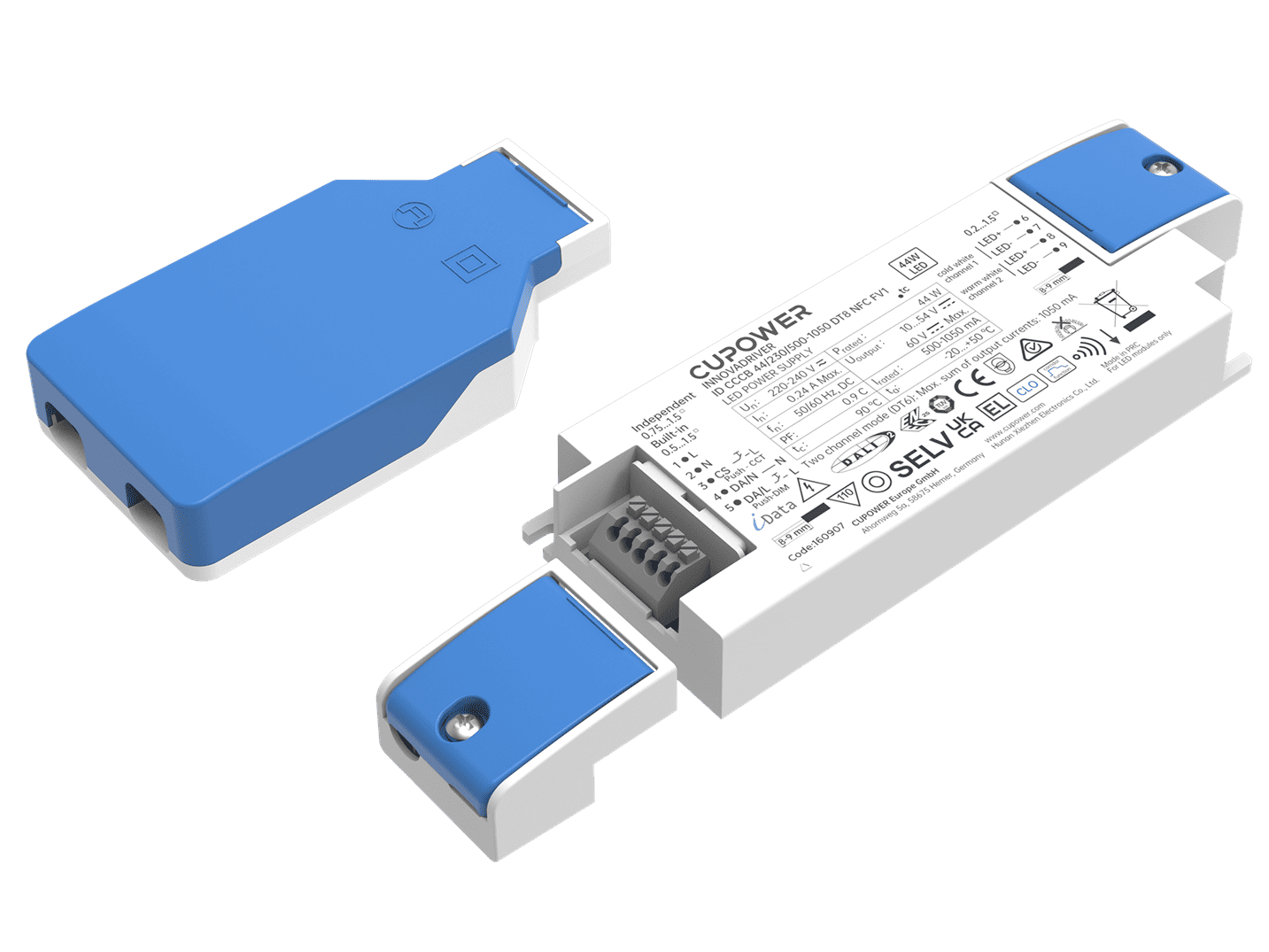

  • 新44 - 副本
Questions Order a Sample
Product description
Isolated adjustable power color temperature LED driver
Supports DALI-2, push DIM control , push CCT control
Usable as DT6 (2-channel) or DT8 (tunable white) driver
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 500…1050 mA
Max. output power 44 W
DC emergency
Flicker-free
Current output default value 100%
For luminaires with protection class l, ll
Anti-glow
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.24 A @ 230 Vac & 0.24 A @ 230 Vdc
THD:< 10%
Inrush current:Inrush current lpeak: 6.26 A, Inrush current Twidth: 35 μs
MCB quantity B10A:37
MCB quantity C10A:37
MCB quantity B16A:59
MCB quantity C16A:59
Output current tolerance:

± 5%

Output voltage max.:60 Vdc
Ripple:5%
Standby power consumption:≤ 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push dimming
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/p-O/p: 3 kVac, < 5 mA 60 sec

I/p-Da: 1.5 kVac, < 5 mA 60 sec

O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product nameOutput

               current		Input


               voltage		Output

               voltage		Efficiency
               @ full load		Current accuracyPower factor
ID CCCB 44/230/500-1050 DT8 NFC FV1500...1050 mA

220...240 Vac

220...240 Vdc

10...54 Vdc89%± 5%

0.9


Operating temperature:-20…+50°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 80°C: 50,000 hrs @ 230 Vac (0.2% / 1,000 h failure rate)
Maximum Tc temperature:90°C
Pcs./ carton:24 pcs
Carton size:280 x 179.5 x 114 mm
Gross weight:3.5 kg
