Non-SELV bluetooth / mesh > ID series

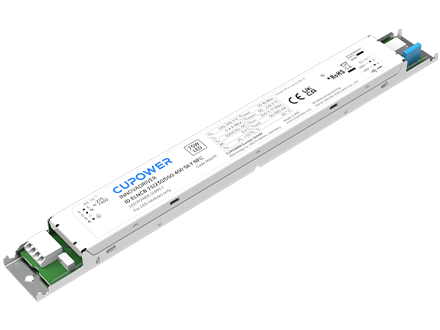

  • 网站-ID ELNCB 75 230 050-400 BH16 NFC CS

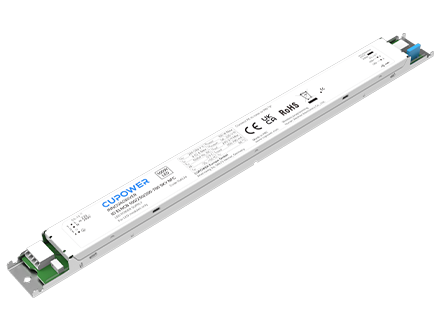

  • 网站-ID ELNCB 100 230 200-700 BH16 NFC MM
Product description
Constant current driver with wide operating windows
Standby power consumption＜0.4 W, meets ErP energy efficiency certification
Integrated wireless module for wireless ecosystem
Support wireless dimming and color temperature adjustable
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Enables reading fixture lifetime data: Data management, energy monitoring, predictive maintenance
Smooth dimming with dimming range 1-100% (amplitude dimming)
External antenna for high quality, strong signals
Product family
Article No. Description Power Input
voltage		 Output
voltage		 Output
current		 Efficiency
@full load		 Dimensions
(mm)		 Data sheet
(download)
166909 ID ELNCB 100/230/200-700 BH16 NFC MM 100W 220-240VAC
220-240VDC
50-220
200-700
93% 360 x 30 x 16
166961 ID ELNCB 100/230/200-700 BH16 NFC ML 100W 220-240VAC
220-240VDC
50-220
200-700
93% 360 x 30 x 16
166848 ID ELNCB 100/230/200-700 BH16 NFC CO 100W 220-240VAC
220-240VDC
50-220
200-700
93% 360 x 30 x 16
166893 ID ELNCB 75/230/050-400 BH16 NFC MM 75W 220-240VAC
220-240VDC
50-220
50-400
92% 278 x 30 x 16
166954 ID ELNCB 75/230/050-400 BH16 NFC ML 75W 220-240VAC
220-240VDC
50-220
50-400
92% 278 x 30 x 16
166831 ID ELNCB 75/230/050-400 BH16 NFC CO 75W 220-240VAC
220-240VDC
50-220
50-400
92% 278 x 30 x 16
166886 ID ELNCB 36/230/050-400 BH16 NFC MM 36W 220-240VAC
220-240VDC
50-137
50-400
91% 278 x 30 x 16
166947 ID ELNCB 36/230/050-400 BH16 NFC ML 36W 220-240VAC
220-240VDC
50-137
50-400
91% 278 x 30 x 16
166817 ID ELNCB 36/230/050-400 BH16 NFC CO 36W 220-240VAC
220-240VDC
50-137
50-400
91% 278 x 30 x 16
166626 ID ELNCB 100/230/200-700 BH16 NFC CS 100W 220-240VAC
220-240VDC
50-220
200-700
93% 360 x 30 x 16
166619 ID ELNCB 75/230/050-400 BH16 NFC CS 75W 220-240VAC
220-240VDC
50-220
50-400
92% 278 x 30 x 16
166602 ID ELNCB 36/230/050-400 BH16 NFC CS 36W 220-240VAC
220-240VDC
50-137
50-400
91% 278 x 30 x 16
Power range:3-110 W
Adjustable output current:NFC
Dimming interface:Bluetooth/Mesh
Dimming range:1-100%
Flicker-free:PstLM≤1，SVM≤0.4
Input votage shock:350 VAC, 2 h
Operating temperature range:Ta -20…+35°C
Power factor:＞ 0.9
Surge protection:L-N: 1 kV, L/N-GND: 2 kV
Start up time:＜ 500 ms @ 230 V
Lifetime:50,000 h
Type of Protection:IP20
Warranty:5 year
  • Download all
  • Download all
Supports multiple protocols and is compatible with multiple lighting fixtures
DALI-2
The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.
NFC
NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.
idata
Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).
Bluetooth
Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.
WIFI
Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.
D4i
D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
