D4i NFC > built-in & independent > ID series

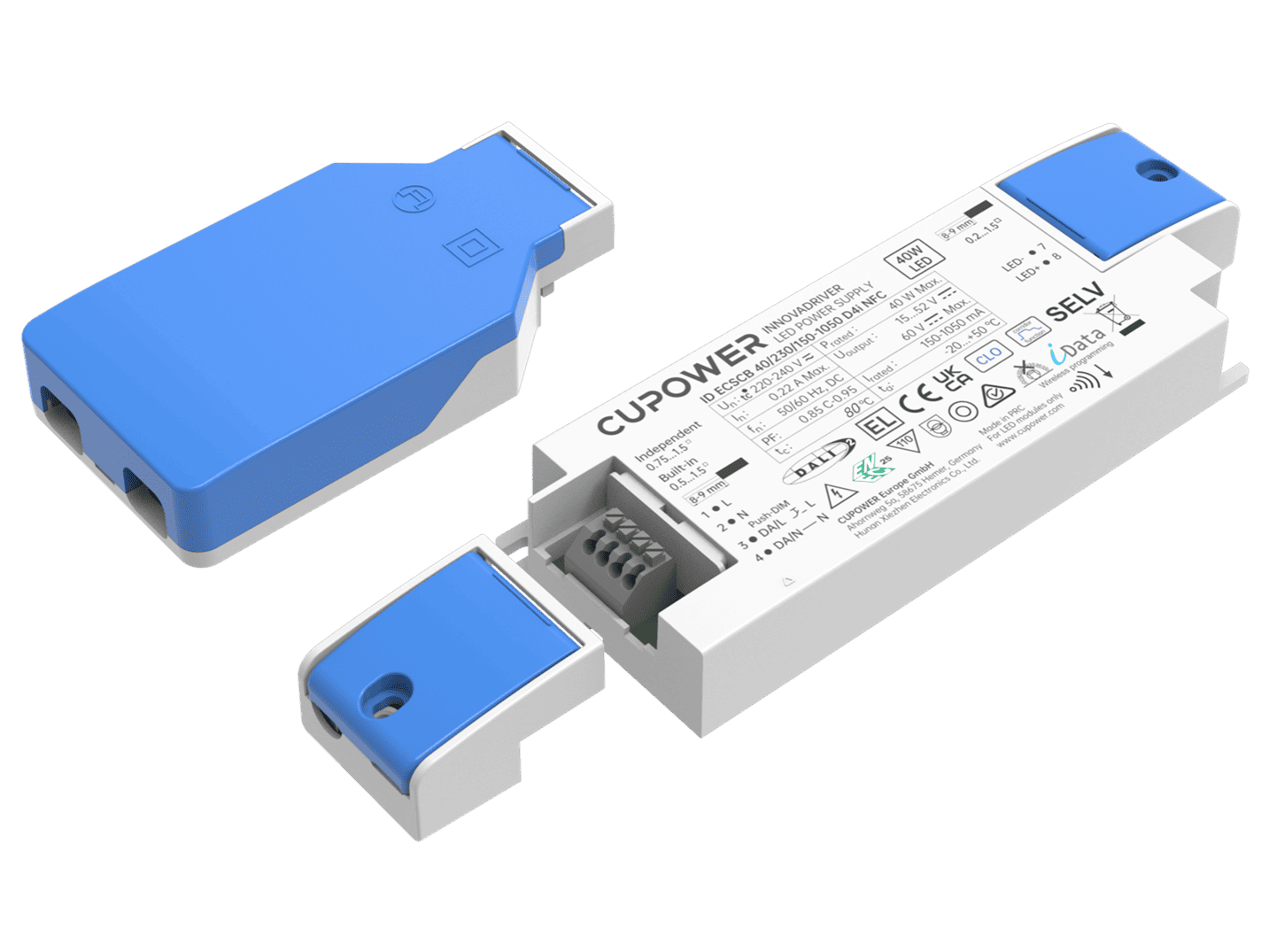

  • 新ID ECSCB 40 230 150-1050 D4i NFC
Product description
Constant current drivers with wide operating windows
Standby power consumption < 0.3 W, meets ErP energy efficiency certification
Smooth dimming with dimming range 1-100 % (amplitude dimming)
The DC emergency mode adjusts the current to 15 % bydefault (adjustable)
Equipped with i-Data: enabling data managament according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports DALl part 250
Supports DALI-2, push DIM, corridor mode, EL emergency, CLO, online upgrade
Supports NFC readers for precise setting and control of multiple functions
Packing unit programming: configure a large number of drivers in parallel via NFC
Optional external NTC functionality available
Product family
Article No. Description Power Input
voltage		 Output
voltage		 Output
current		 Efficiency
@full load		 Dimensions
(L x W x H)		 Data sheet
(download)
167883 ID ECSCB 40/230/150-1050 D4i NFC N 40 W 220-240VAC
220-240VDC
15-52
150-1050
92%
135 x 56.5 x 21 mm
167876 ID ECSCB 40/230/150-1050 D4i NFC 40 W 220-240VAC
220-240VDC
15-52
150-1050
92%
135 x 56.5 x 21 mm
N = External NTC connectable
Power range:2.25-40 W
Adjustable output current:NFC
Dimming interface:DALI
Dimming range:1...100%
Flicker-free:PstLM≤1，SVM≤0.4
Input votage shock:350 VAC, 2 h
Operating temperature range:Ta -20...+50 ℃
Power factor:> 0.9
Surge protection:L-N: 1 kV
Start up time:< 0.75 ms @ 230 V
Lifetime:50,000 h
Type of Protection:IP20
Warranty:5 year
  • Download
Supports multiple protocols and is compatible with multiple lighting fixtures
DALI-2
The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.
NFC
NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.
idata
Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).
Bluetooth
Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.
WIFI
Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.
D4i
D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
