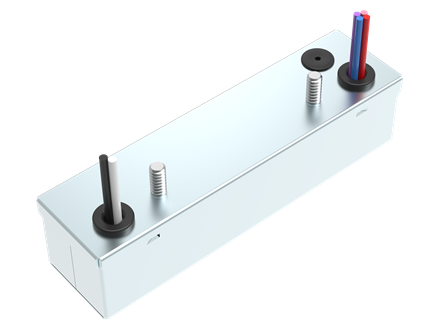

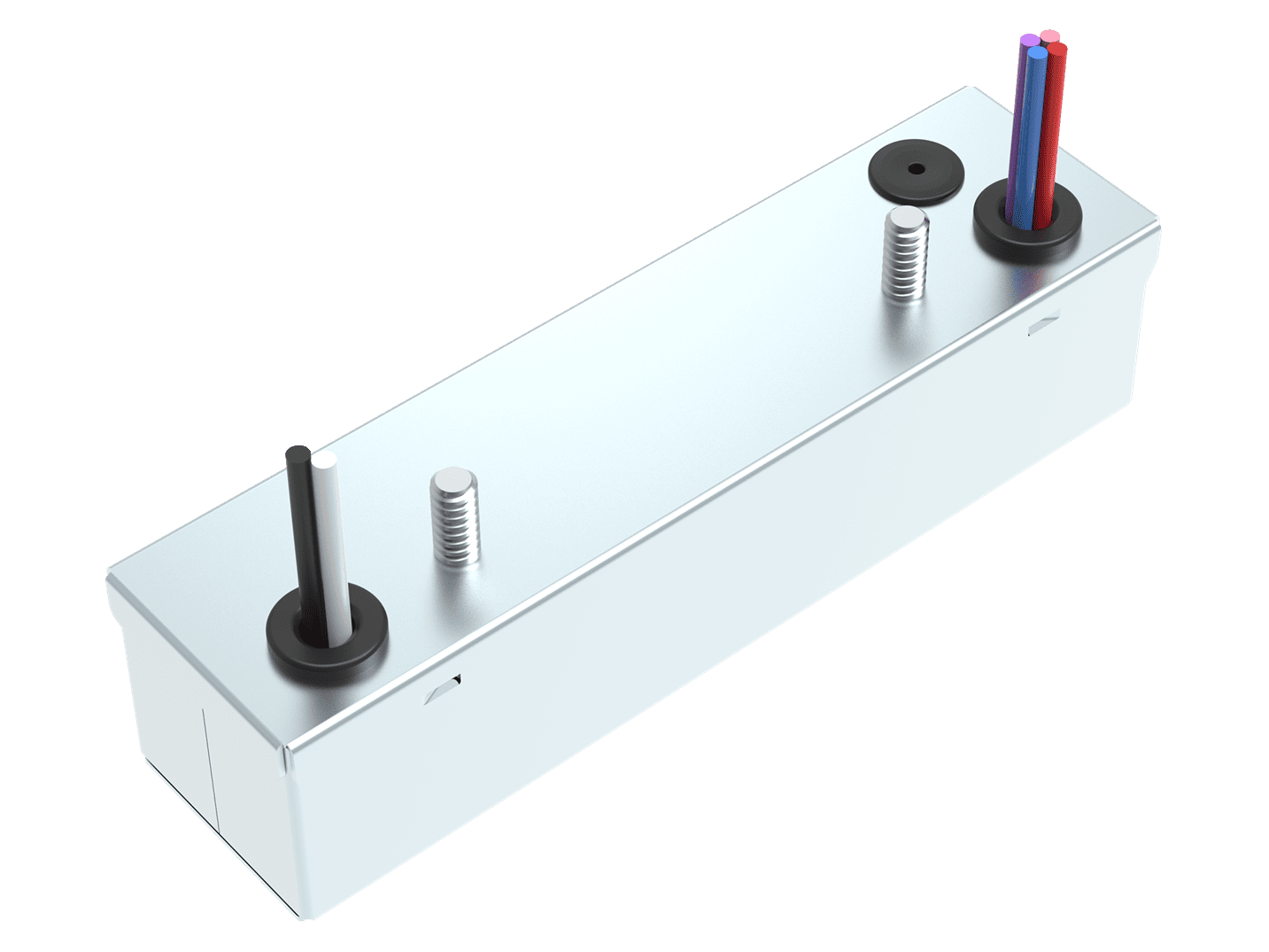

680006 NASFF30-120277-1050T-TRIMODE-WB

< Back

L98.5 x W26.6 x H23.8 mm

WT: 0.135 kg

Product description

Built-in isolated adjustable power LED driver
Output current 350…1050 mA
Max. output power 30 W
Flicker-free
Current output default value 1050 mA
Programmable
For luminaires with protection class l

Swipe for more

Rated input voltage range:	120…277 Vac; performance range
Max.input voltage range:	108...305 Vac; operational safety range
Rated input current DC range:	50/60 Hz
Performance / Operational safety:	47...63 Hz
Max. input current:	0.32 A @ 120 Vac
Withstand voltage:	I/p-O/p: 1.6 kVac, < 5 mA 60 sec, I/p-Earth: 1.6 kVac, < 5 mA 60 sec, O/p-Earth: 0.5 kVac, < 5 mA 60 sec
THD:	≤ 20%
Inrush current [Aµs]:	N/A
MCB Quantity B10A:	N/A
MCB Quantity C10A:	N/A
MCB Quantity B16A:	N/A
MCB Quantity C16A:	N/A
Output current range:	350…1050 mA (programmable)
Default output current.:	1050 mA
Output voltage range:	6…50 Vdc
Noise level:	< 20 dB, at full load @ 100 cm distance
Output current tolerance:	± 5% at rated input voltage performance range
No load output voltage:	≤ 60 Vdc
Ripple output current:	5% (ripple = peak/average total 100 Hz)
Dimming mode:	0/1-10 V (programmable), Triac/ELV
Dimming method:	Hybrid Dimming
Dimming current range:	1%...100% (10.5...1050 mA Triac/ELV) 0.1%...100% (1.05...1050 mA 0/1-10 V)

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
NASFF30-120277-1050T-TRIMODE-WB	350…1050 mA	120...277 Vac	6...50 V	89%	± 5%	0.9

Operating temperature:	-20… +50℃
Storage temperature:	-25… +85℃
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 75℃: 50,000 hrs @ performance range (0.2% / 1,000 h failure rate)
Maximum Tc temperature:	90℃
