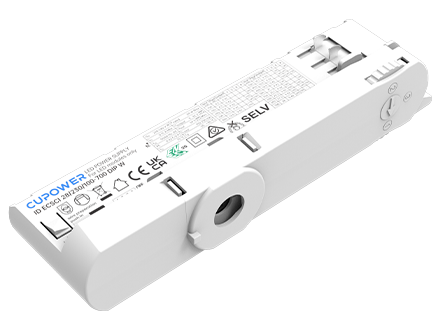

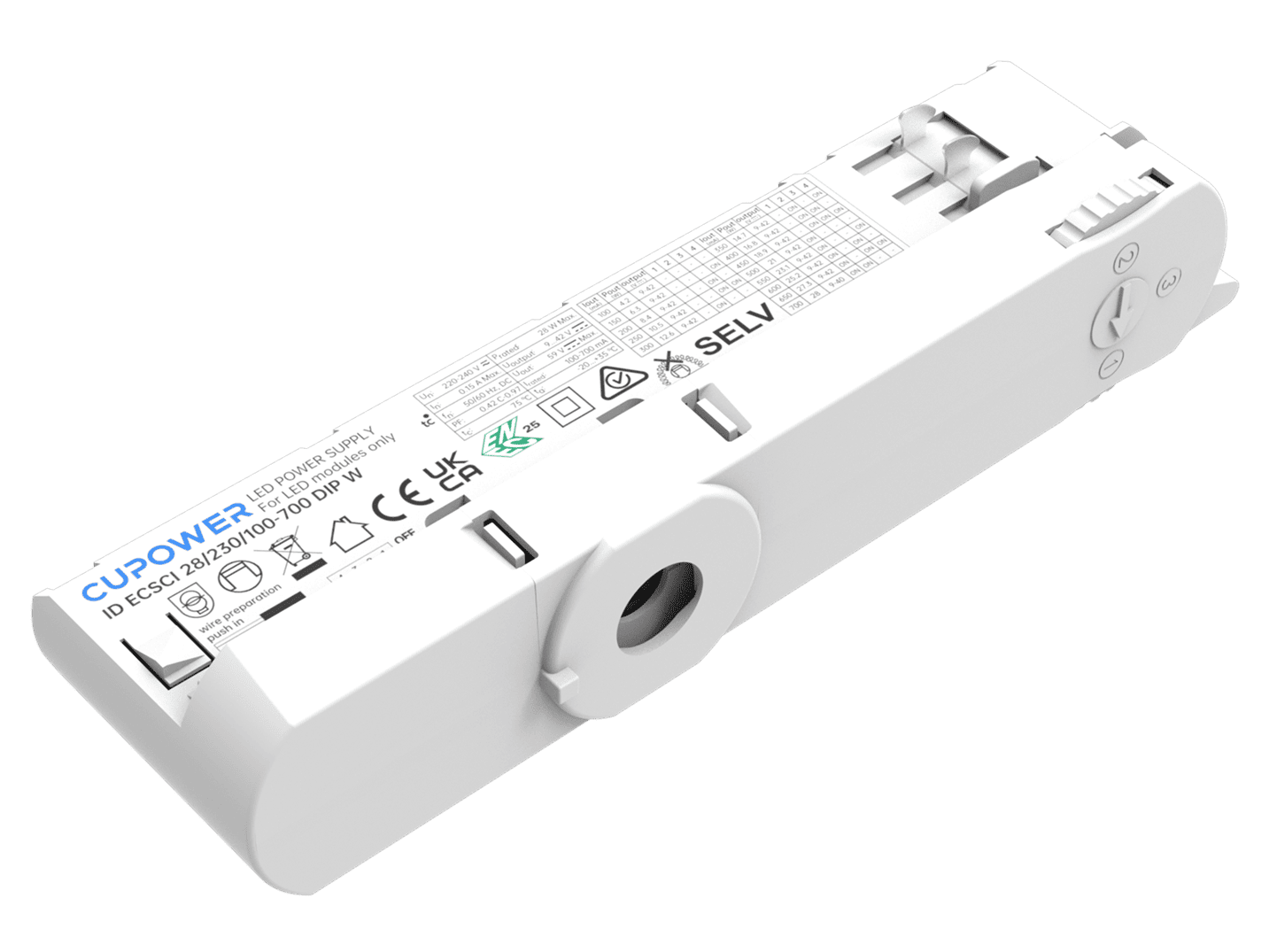

166824 ID ECSCI 28/230/100-700 DIP W

< Back

L160 x W31.1 x H45.7 mm

WT: 0.106 kg

Questions Order a Sample
Product description
  • Multi-current dip is optional to reduce SKUs in stock
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.15 A @ 230 Vac & 0.15 A @ 230 Vdc
THD:≤ 10%
Inrush current:63 μs
MCB Quantity B10A:65
MCB Quantity C10A:65
MCB Quantity B16A:105
MCB Quantity C16A:105
Output current tolerance:± 5%
Output voltage max.:≤ 55 V
Ripple:5%
Standby power consumption:≤ 0.3 W
Output PstLM:≤ 1
Output SVM:≤ 0.4
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:N/A
Withstand voltage:l/p-O/p 3.75 kVac, < 5 mA 60 sec
