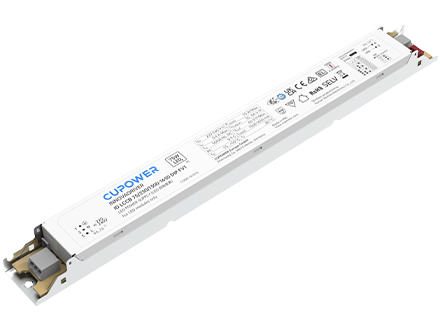

161614 ID LCCB 75/230/1300-1650 DIP FV1

< Back

L302 x W30 x H21 mm

WT: 0.21 kg

Questions Order a Sample
Product description
  • Constant current drivers with wide operating windows
  • High power factor
  • Flicker-free
  • DIP switch for multi-current setting
  • Suitable for Class I luminaires
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.4 A@230 Vac
THD:≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 22.8A、Inrush current Twidth: 326 μs
MCB Quantity B10A:8
MCB Quantity C10A:14
MCB Quantity B16A:14
MCB Quantity C16A:23
Output current tolerance:± 5% at rated input voltage range
Output voltage max:60 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP
Withstand voltage:

I/O:3.0kVac, I/FG: 1.5 kVac, O/FG: 1.5 kVac; < 5 mA, 60 sec
