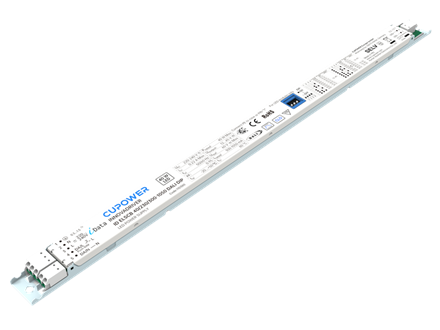

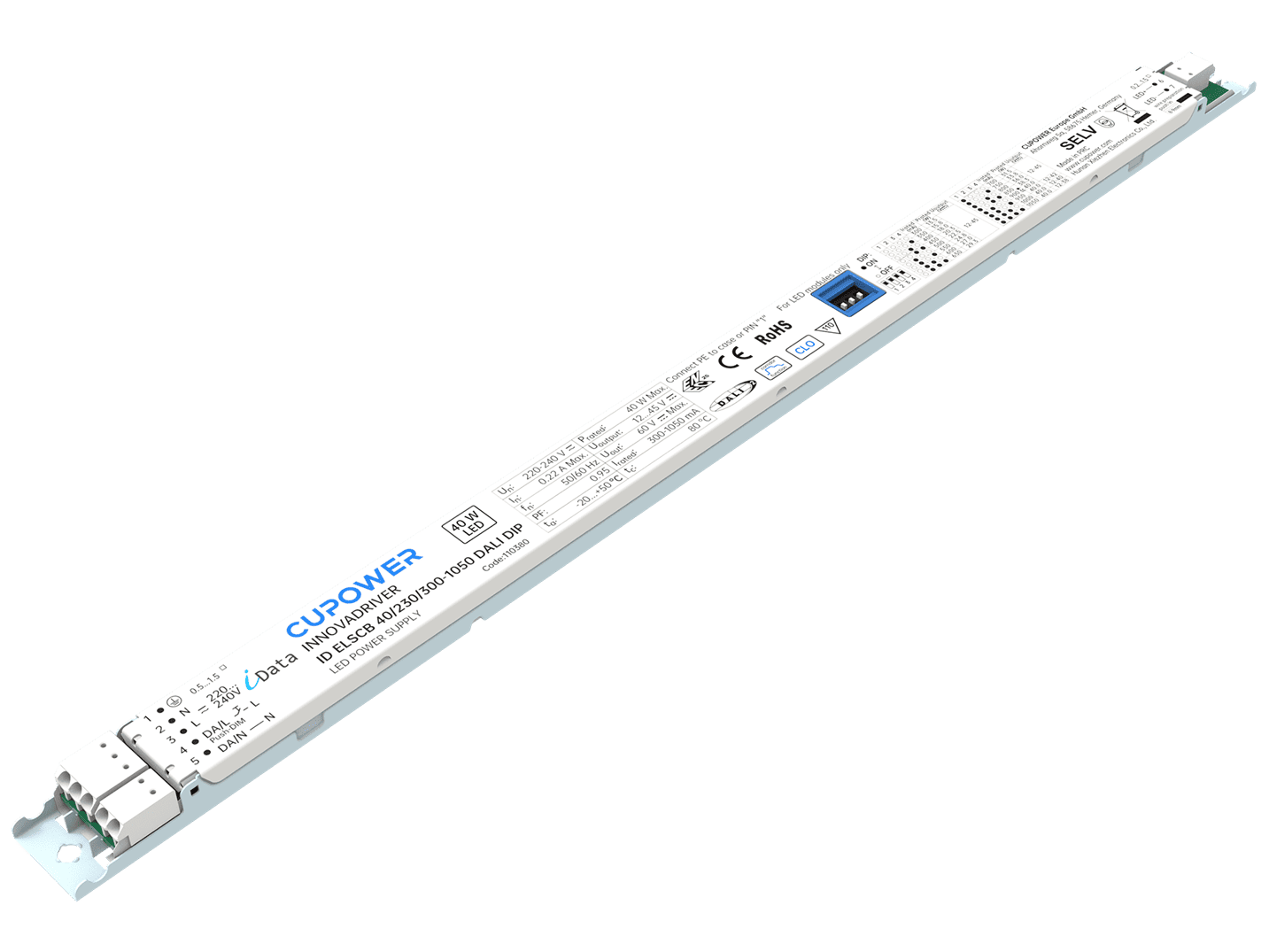

110380 ID ELSCB 40/230/300-1050 DALI DIP

< Back

L360 x W20 x H11 mm

WT: 0.1406 kg


Questions Order a Sample
Product description
Isolated adjustable power LED driver
Supports DALI-2, push DIM control
Supports i-Data function (DALI part 251, 252, 253)
Output current 300…1050 mA by DIP Switch adjust
Max. output power 40 W
Flicker-free, dimming range 1%...100% (amplitude dimming)
Current output default value 100%
DC emergency
For luminaires with protection class l
Constant lumen output (CLO)
Anti-glow
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:198...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.22 A @ 230 Vac & 0.22 A @ 230 Vdc
THD:≤ 10%
Inrush current [Aµs]:32 A, 108µs
MCB Quantity B10A:19
MCB Quantity C10A:32
MCB Quantity B16A:31
MCB Quantity C16A:51
Output current tolerance:± 5%
Output voltage max.:60 Vdc
Ripple:≤ 5%
Standby power consumption:≤ 0.30 W
Output PstLM:≤ 1
Output SVM:≤ 0.4
Dimming mode:DALI-2, push dimming
Dimming range:1%...100%
Adjustable output current:DIP
Withstand voltage:

I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-DA: 1.5 kVac, < 5 mA 60 sec, O/p-DA: 1.5 kVac, < 5 mA 60 sec


Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID ELSCB 40/230/300-1050 DALI DIP

300...1050 mA

220…240 Vac

220…240 Vdc

   12...45 V90%± 5%0.9


Operating temperature:-20...+50℃
Storage temperature:-25...+85℃
Working humidity:10%...90%
Store humidity:5%...95%
Driver lifetime:at Tc 75℃: 50,000 hrs @ 230 Vac
Maximum Tc temperature:75℃
Pcs./ carton:70 pcs
Carton size:381 x 215 x 116 mm
Gross weight:10.0 kg
