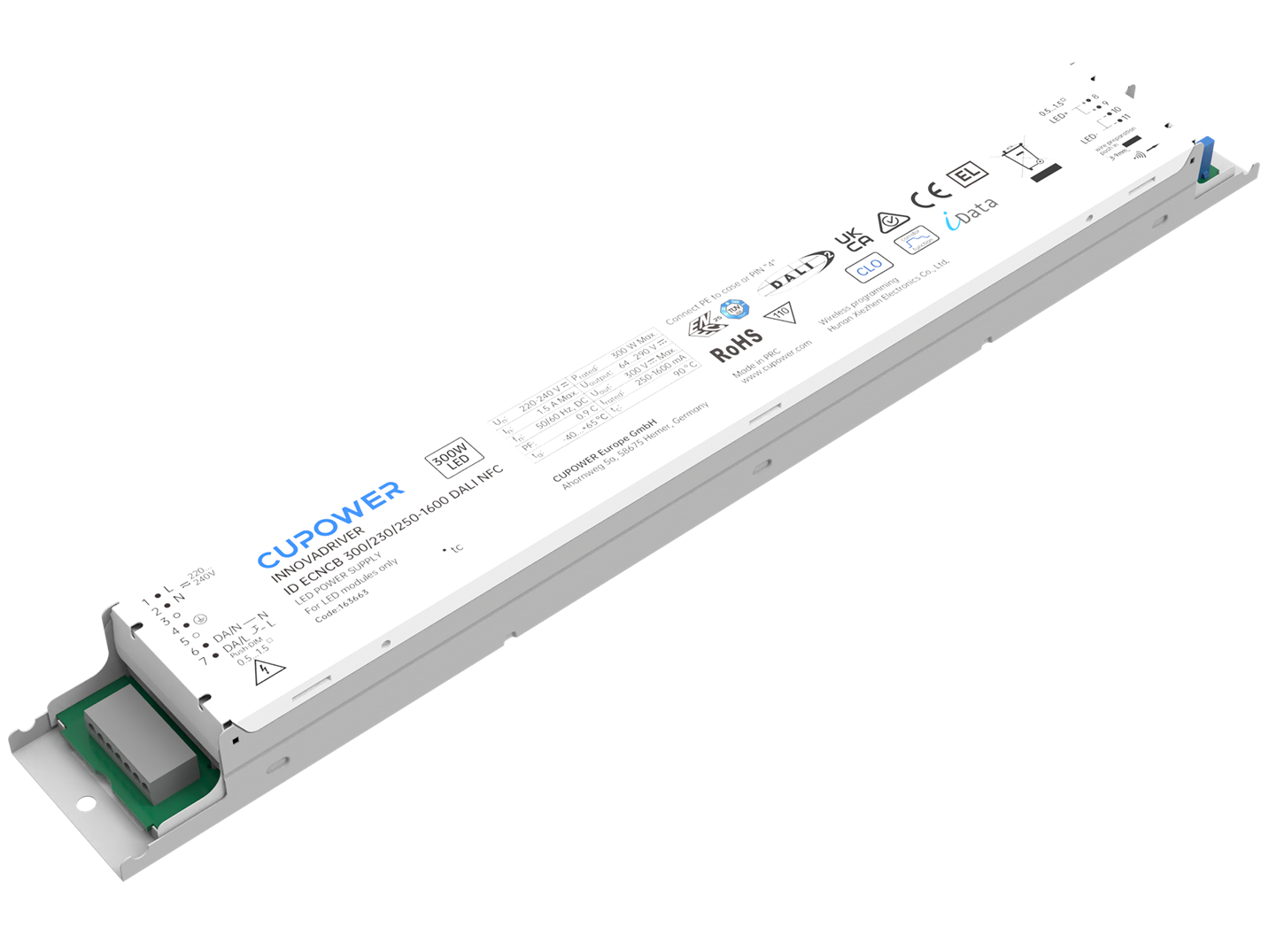

163663 ID ECNCB 300/230/250-1600 DALI NFC

< Back

L360 x W45 x H28 mm

WT: 0.48 kg

Product description
Constant current drivers with wide operating windows
Supports DALI-2 and push DIM
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Smooth dimming with dimming range 1...100% (amplitude dimming)
Standby power consumption ≤ 0.3 W, meets ErP energy efficiency certification
High surge protection L-N: 4 kV, L/N-GND: 4 kV
Packing unit programming: configure a large number of drivers in parallel via NFC
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:1.5 A @ 230 Vac
THD:≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 15.5 A; Inrush current Twidth: 126 μs

MCB quantity B10A:

6
MCB quantity C10A:6
MCB quantity B16A:10
MCB quantity C16A:10
Output current tolerance:± 5% at rated input voltage range
Output voltage max:300 Vdc
Ripple:≤ 5%
Standby power consumption:≤ 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push dimming
Dimming range:1%…100%
Adjustable output current:NFC
Withstand voltage:

I/p-FG: 1.5 kVac, < 5 mA 60 sec

Model number
               (Full model)
Output
               current
Input
               voltage
Output
               voltage
Efficiency                @full loadCurrent accuracyPower factor
ID ECNCB 300/230/250-1600 DALI NFC250...1600 mA

220...240 Vac

220...240 Vac

64...290 V95%± 5%> 0.9


Operating temperature:-40…+65°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:90°C
Pcs./ carton:20 pcs
carton size:381 x 188 x 162 mm
Gross weight:10.5kg
