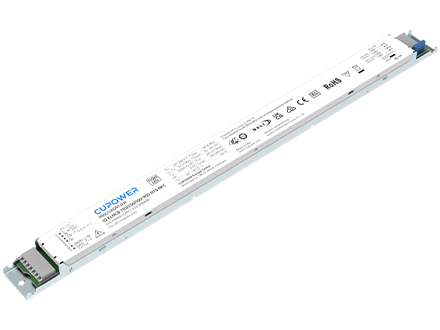

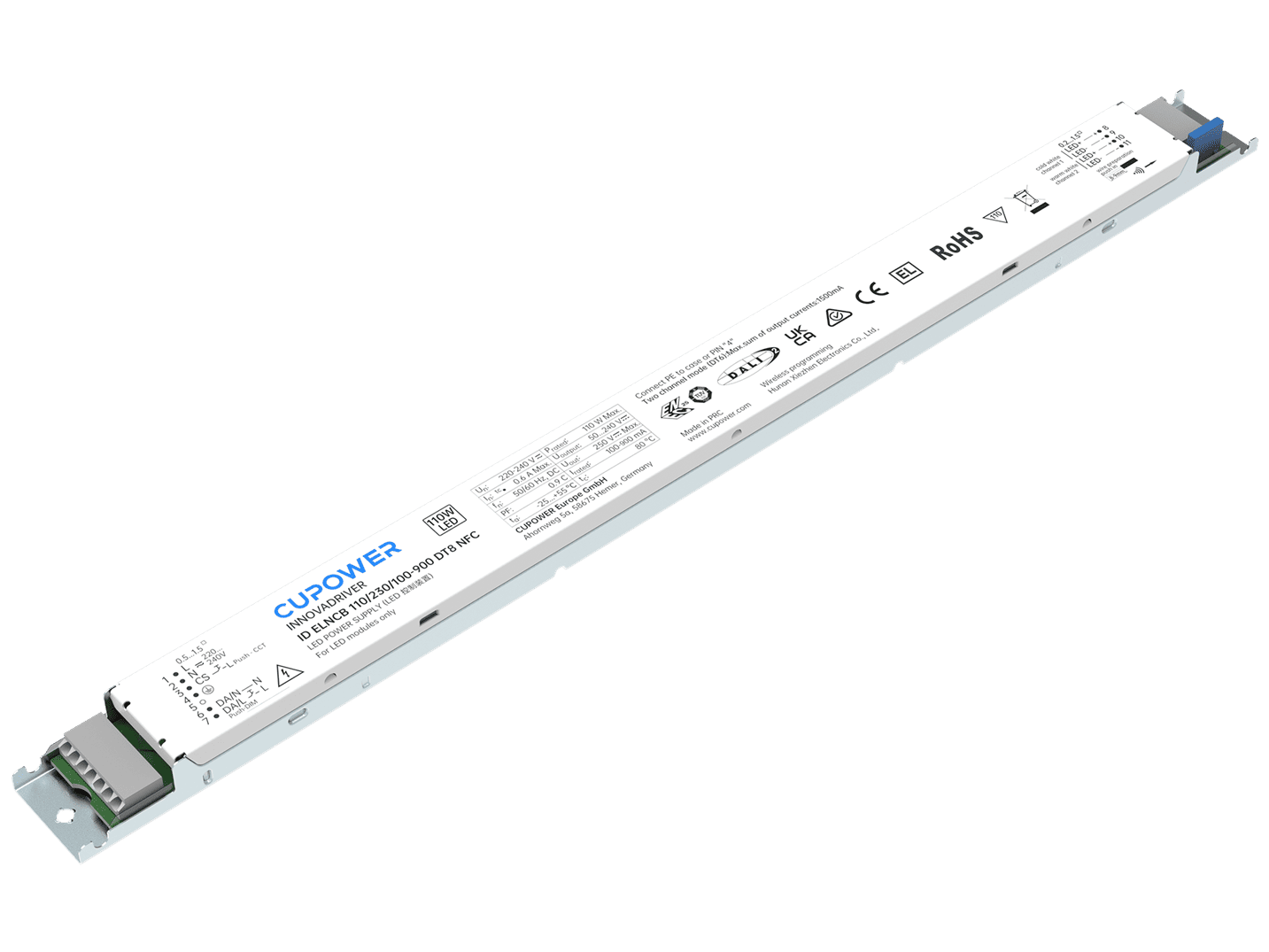

165094 ID ELNCB 110/230/100-900 DT8 NFC

< Back

L405 x W30 x H16 mm

WT: 0.28 kg

Product description

Constant current drivers with wide operating windows
Supports DALI-2 and PUSH DIM and push CCT adjustable
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Supports two independent DT6 or one DT8 output, smooth colour temperature setting and dimming with dimming range 1...100% (amplitude dimming)
Standby power consumption ≤ 0.3 W, meets ErP energy efficiency certification
Packing unit programming: configure a large number of drivers in parallel via NFC

Rated input voltape range:	220...240 Vac
Max. input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...278 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.6 A @ 230 Vac
THD:	≤ 20% at rated input voltage range @ full load
Inrush current:	Inrush current lpeak: 29.4 A，Inrush current Twidth: 300 μs
MCB quantity B10A:	7
MCB quantity C10A:	12
MCB quantity B16A:	11
MCB quantity C16A:	19
Output current tolerance:	± 5% at rated input voltage range
Output voltage max. :	250 Vdc
Ripple:	≤ 5%
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2, Push dimming
Dimming range:	1％...100％
Adjustable output current:	NFC
Withstand voltage:	I/p-FG: 1.5 kVac, < 5 mA 60 sec
