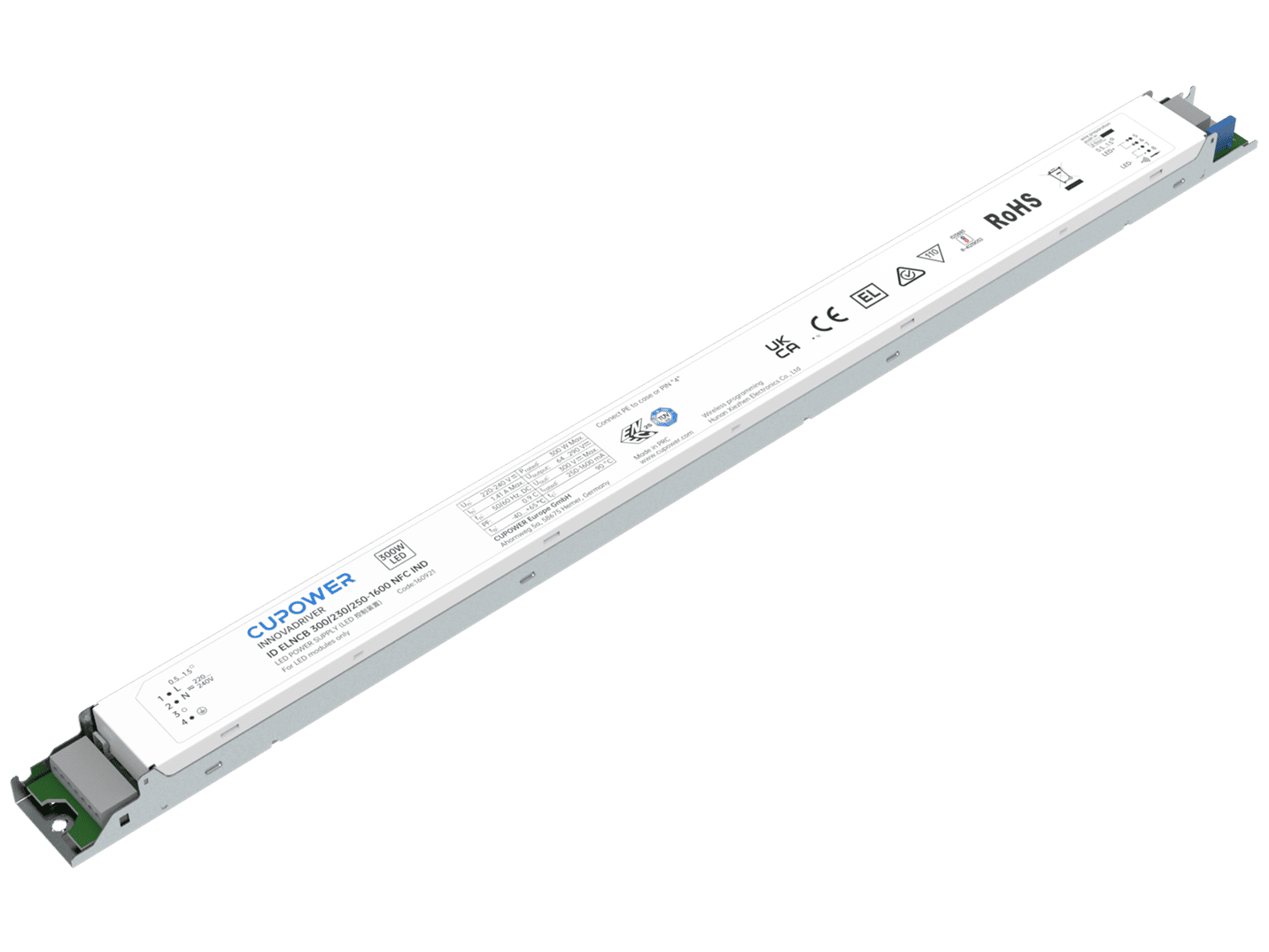

161645 ID ELNCB 300/230/250-1600 NFC IND

< Back

L480 x W30 x H21 mm

WT: 0.48 kg

Product description

Constant current driver with wide operating windows
High power factor
Flicker-free
Supports NFC readers for precise setting and control of multiple functions
High surge protection L-N: 4 kV, L/N-GND: 4 kV
Packing unit programming: configure a large number of drivers in parallel via NFC

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/ 50 / 60 Hz
Rated input current:	1.41A @ 230 Vac
THD:	≤ 10 % at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 15.5A、Inrush current Twidth:126 μs
MCB Quantity B10A:	6
MCB Quantity C10A:	6
MCB Quantity B16A:	10
MCB Quantity C16A:	10
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	300 Vdc
Ripple:	≤ 5%
Standby power consumption:	≤ 0.3
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	NA
Dimming range:	NA
Adjustable output current:	NFC control adjusts the current; 200...700mA
Withstand voltage:	I/P-FG: 1.5 kVac, < 5 mA 60 sec

Model Number
(Full Model)

output
Current

Input
voltage

Output
voltage

Efficiency @full load

Current ACCURACY

Power Factor

ID ELNCB 300/230/250-1600 NFC IND

250...1600 mA

220...240 Vac

220...240 Vdc

64...290 V

95%

± 5%

＞0.9

(@ 75...300 W)

Operating temperature:	-40…+65°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at tc < 85°C: 50,000 hrs;
Maximum Tc temperature:	90°C
