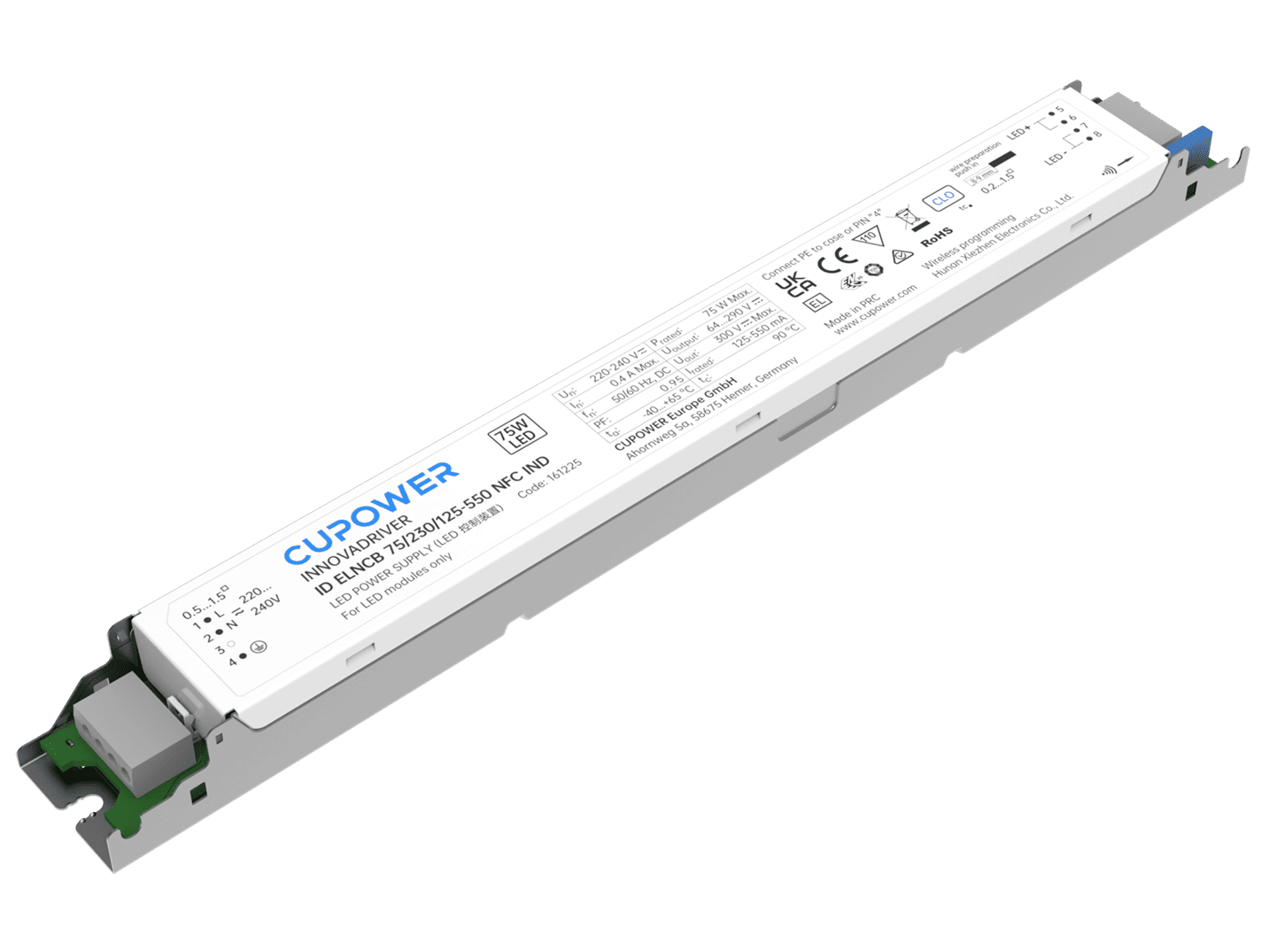

161225 ID ELNCB 75/230/125-550 NFC IND

< Back

L278 x W30 x H21 mm

WT: 0.213 kg

Questions Order a Sample

Product description

Constant current driver with wide operating windows
High power factor
Flicker-free
Supports NFC readers for precise setting and control of multiple functions
High surge protection L-N: 4 kV, L/N-GND: 4 kV
Packing unit programming: configure a large number of drivers in parallel via NFC

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	198...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.4A @ 230 Vac
THD:	≤ 10 % at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 10.2A、Inrush current Twidth:360 μs
MCB Quantity B10A:	17
MCB Quantity C10A:	28
MCB Quantity B16A:	27
MCB Quantity C16A:	45
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	300 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	< 1 at full load @ rated input voltage
Output SVM:	< 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current：	NFC control adjusts the current; 125...550mA
Withstand voltage:	I/P-FG: 1.5 kVac, < 5 mA 60 sec

Operating temperature:	Ta-40…+65°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at tc < 85°C: 50,000 hrs; at tc < 70°C: 100,000 hrs @230 Vac
Maximum Tc temperature:	90°C

Pcs./ carton:	20 pcs
Carton size:	299 x 128 x 128 mm
Gross weight:	4.7 kg

Data sheets
Approvals
3D Drawing
Declaration

SAA_ID_ELNCB_75_230_125-550_NFC_IND
CE-LVD_ID_ELNCB_75_230_125-550_NFC_IND
ENEC+EL_ID_ELNCB_75_230_125-550_NFC_IND
CE-EMC_ID_ELNCB_75_230_125-550_NFC_IND
CE-RED_ID_ELNCB_75_230_125-550_NFC_IND
Download all
