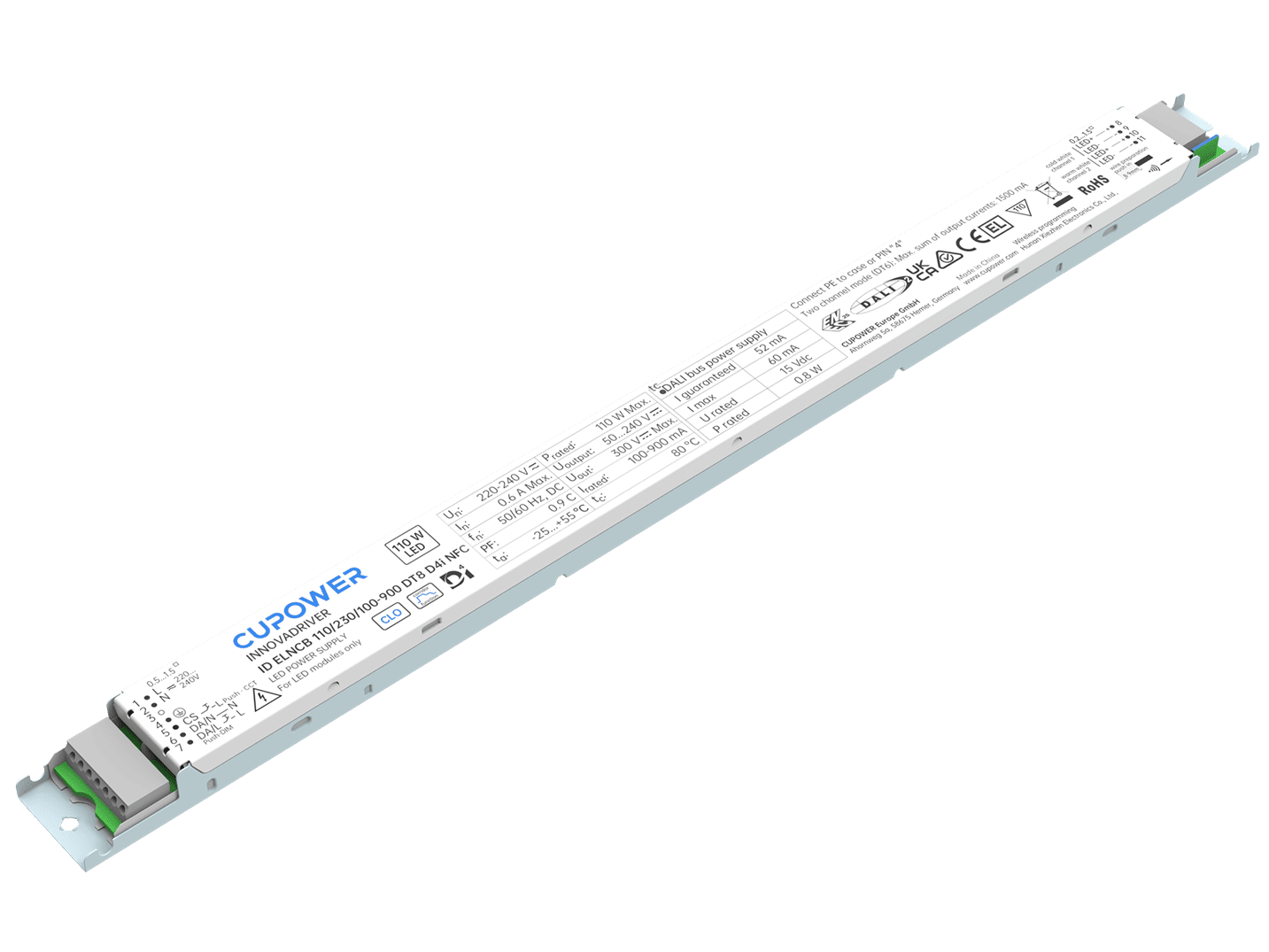

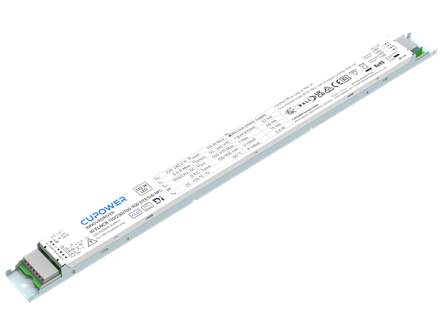

110595 ID ELNCB 110/230/100-900 DT8 D4i NFC

< Back

L405 x W29.5 x H16 mm

WT: 0.28 kg

Product description

Flicker-free LED driver
Supports DALI-2, push DIM, push CCT control, D4i
Usable as DT6 (2-channel) or DT8 (tunable white) driver
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 100 … 900 mA
Max. output power 110 W
DC emergency
Current output default value 100 %
For luminaires with protection class l
Anti-glow

Swipe for more

Rated input voltage range:	220 ... 240 Vac
Max.input voltage range:	198 ... 264 Vac
DC Rated input voltage range:	220 ... 240 Vdc
DC operation voltage range:	176 ... 280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.6 A@ 230 Vac & 0.6 A @ 230 Vdc
THD:	≤ 10 %
Inrush current [Aµs]:	10.8 A, 63 μs
MCB Quantity B10A:	15
MCB Quantity C10A:	15
MCB Quantity B16A:	24
MCB Quantity C16A:	24
Output current tolerance:	± 5 %
Output voltage max.:	250 V
Ripple:	5 %
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	DALI-2, Push dimming
Dimming range:	1 ... 100 %
Adjustable output current:	NFC
Withstand voltage:	l/p-FG: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELNCB 110/230/100-900 DT8 D4i NFC

100 ... 900 mA

220 ... 240 Vac

220 ... 240 Vdc

50 ... 240 V

94 %

± 5 %

0.9

Operating temperature:	-20 ... +55 ℃
Storage temperature:	-40 ... +85 ℃
Working humidity:	10 ... 90 %
Store humidity:	5 ... 95 %
Driver lifetime:	at Tc 75 ℃: 50,000 h @ 230 Vac
Maximum Tc temperature:	80 ℃
