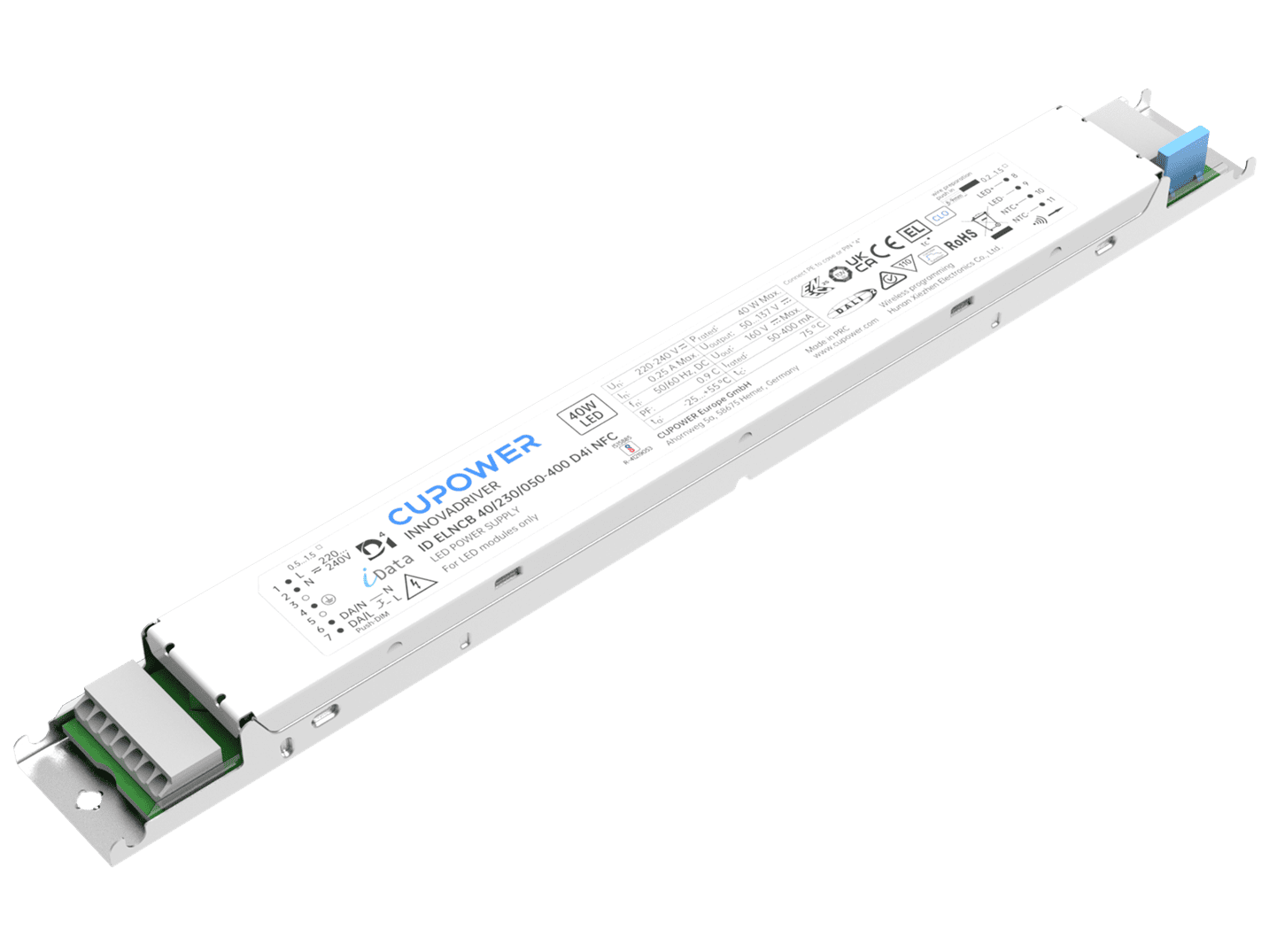

167043 ID ELNCB 40/230/050-400 D4i NFC

< Back

L278 x W29.5 x H16 mm

WT: 0.154 kg


Questions Order a Sample
Product description
Built-in non isolated adjustable power LED driver
Supports DALI-2 D4i, push DIM control
Current adjustment via NFC
Constant lumen output (CLO)
Supports i-Data function (DALI part 250, 251, 252, 253)
Output current 50 … 400 mA
Max. output power 40 W
DC emergency
Flicker-free, dimming range 1 ... 100 % (amplitude dimming)
Current output default value 50 mA
For luminaires with protection class l
Anti-glow
Packing unit programming: configure a large number of drivers in parallel via NFC
Swipe for more
Rated input voltage range:220 ... 240 Vac
Max.input voltage range:198 ... 264 Vac
Rated input current DC range:220 ... 240 Vdc
DC operation voltage range:176 ... 276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.22 A @ 230 Vac & 0.22 A @ 230 Vdc
THD:< 10 %
Inrush current [Aµs]:14.3 A, 254 us
MCB Quantity B10A:17
MCB Quantity C10A:29
MCB Quantity B16A:28
MCB Quantity C16A:46
Output current tolerance:± 5 %
Output voltage max.:160 V
Ripple:5 %
Standby power consumption:< 0.30 W (@ DALI BUS OFF)
Output PstLM:≤ 1
Output SVM:≤ 0.4
Dimming mode:DALI-2, push dimming
Dimming range:1 ... 100 %
Adjustable output current:NFC
Withstand voltage:

I/p-FG: 1.5 kVac, < 5 mA 60 sec, I/p-DA: 1.5 kVac, < 5 mA 60 sec


Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID ELNCB 40/230/050-400 D4i NFC

50 ... 400 mA

220 ... 240 Vac

220 ... 240 Vdc

   50 ... 137 V91 %± 5 %> 0.9


Operating temperature:-20 ... +55 ℃
Storage temperature:-40 ... +80 ℃
Working humidity:10 ... 90 %
Store humidity:5 ... 95 %
Driver lifetime:

at Tc 80 ℃: 50,000 h @ 230 Vac; at Tc 70 ℃:

100,000 h @ 230 Vac (0.2 % / 1,000 h failure rate)

Maximum Tc temperature:80 ℃
Pcs./ carton:20 pcs
Carton size:299 x 128 x 103 mm
Gross weight:3.6 kg
  • Download
