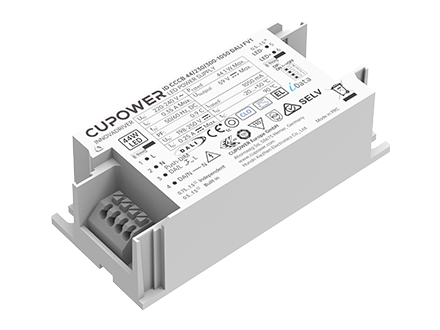

161317 ID CCCB 44/230/300-1050 DALI FV1

< Back

L97 x W43 x H30 mm

WT: 0.14 kg

  • 新44 - 副本
Questions Order a Sample
Product description
Constant current driver with wide operation windows
Supports DALI-2 and push DIM
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
The DC emergency mode adjusts the current to 15% by default (adjustable)
Smooth dimming with dimming range 1-100% (amplitude dimming)
DIP switch for multi-current setting
Loop through connection comply with 2.5mm² engineering cable entry specifications
Standby power consumption ≤ 0.5 W, meets ErP energy efficiency certification
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:198...250 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.35 A @ 230 Vac
THD:≤ 15%
Inrush current [Aµs]:Inrush current lpeak: 3.26 A, Inrush current Twidth: 34 μs
MCB Quantity B10A:38
MCB Quantity C10A:38
MCB Quantity B16A:60
MCB Quantity C16A:60
Output current tolerance:

± 5%

Output voltage max:59 Vdc
Ripple:≤ 5%
Standby power consumption:≤ 0.5 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2，Push Dimming
Dimming range:1％...100％
Adjustable output current:DIP
Withstand voltage:

I/P-O/P: 3.75kVac,＜5mA 60 sec,I/P-DA: 1.5kVac,＜5mA 60 sec；O/P-DA: 1.5kVac,＜5mA 60 sec

Product nameOutput

                current		Input

               voltage		Output

               voltage		Efficiency
               @full load		Current accuracyPower factor
ID CCCB 44/230/300-1050 DALI FV1300...1050 mA

220...240 Vac

220...240 Vdc

6...52 Vdc89%± 5%> 0.9


Operating temperature:-20…+50°C
Storage temperature:-40…+80°C
Working humidity:10%…90%
Store humidity:5%...90%
Driver lifetime:at Tc < 90°C: 50,000 hrs; at Tc＜80°C: 100,000 hrs @230 Vac
Maximum Tc temperature:90°C
Pcs./ carton:45 pcs
Carton size:303 x 225 x 120 mm
Gross weight:6.8 kg
