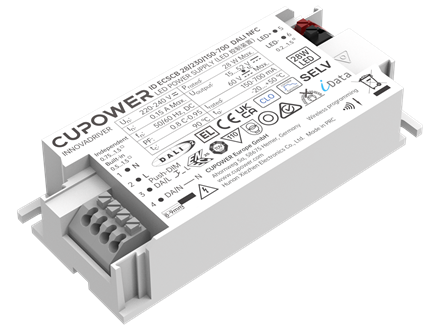

162949 ID ECSCB 28/230/150-700 DALI NFC

< Back

L97 x W43 x H21.4 mm

WT: 0.093 kg

  • 新2 - 副本
Questions Order a Sample
Product description
Isolated adjustable power LED driver
Supports DALI-2, push DIM control
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 150…700 mA
Max. output power 28 W
DC emergency
Flicker-free, dimming range 1%...100% (amplitude dimming)
Current output default value 100%
For luminaires with protection class l, ll
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range220...240 Vac
DC operation voltage range:176…276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.16 A @ 230 Vac & 0.24 A @ 230 Vdc
THD:≤ 10% at rated input voltage range @ full load
Inrush current:Inrush current lpeak: 12.9 A; Inrush current Twidth: 236 μs
MCB quantity B10A:21
MCB quantity C10A:35
MCB quantity B16A:33
MCB quantity C16A:56
Output current tolerance:± 5%
Output voltage max:60 Vdc
Ripple:5%
Standby power consumption:≤ 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push Dimming
Dimming range:1%...100%
Adjustable output current:150…700 mA
Withstand voltage:I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec,

O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product nameOutput
               current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID ECSCB 28/230/150-700 DALI NFC150...700 mA

220...240 Vac

220...240 Vdc

15...52 Vdc

90% (@ 52 V 540 mA)

± 5%＞ 0.9


Operating temperature:-20…+50°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%…95%
Driver lifetime:at Tc 85℃: 50,000 hrs @ 230 Vac
Maximum Tc temperature:90℃
Pcs./ carton24 pcs
Carton size204 x 139 x 116 mm
Gross weight2.93 kg
