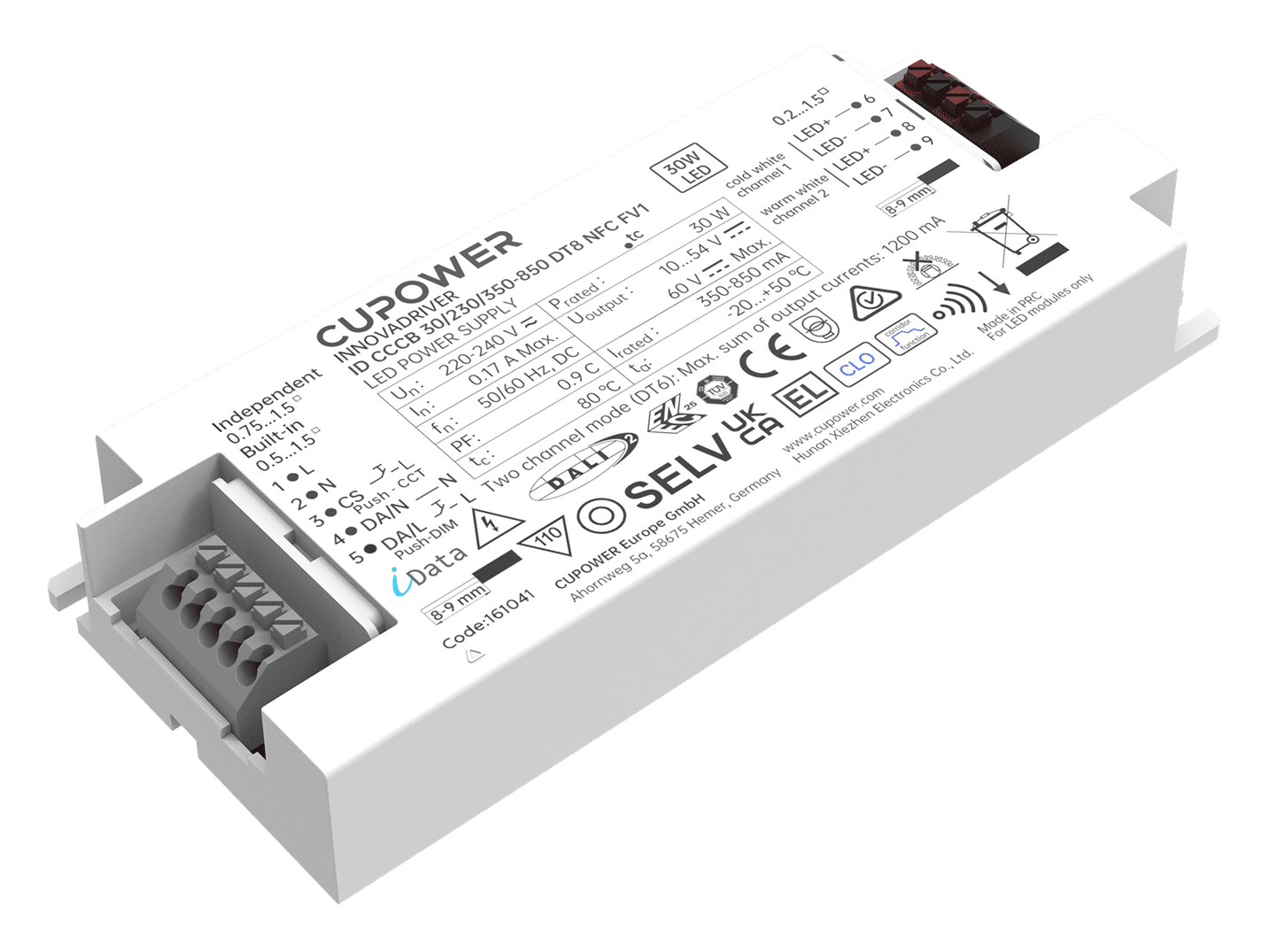

680008 ID CCCB 30/230/350-850 DT8 NFC FV1

< Back

L135 x W56.5 x H21 mm

WT: 0.117 kg

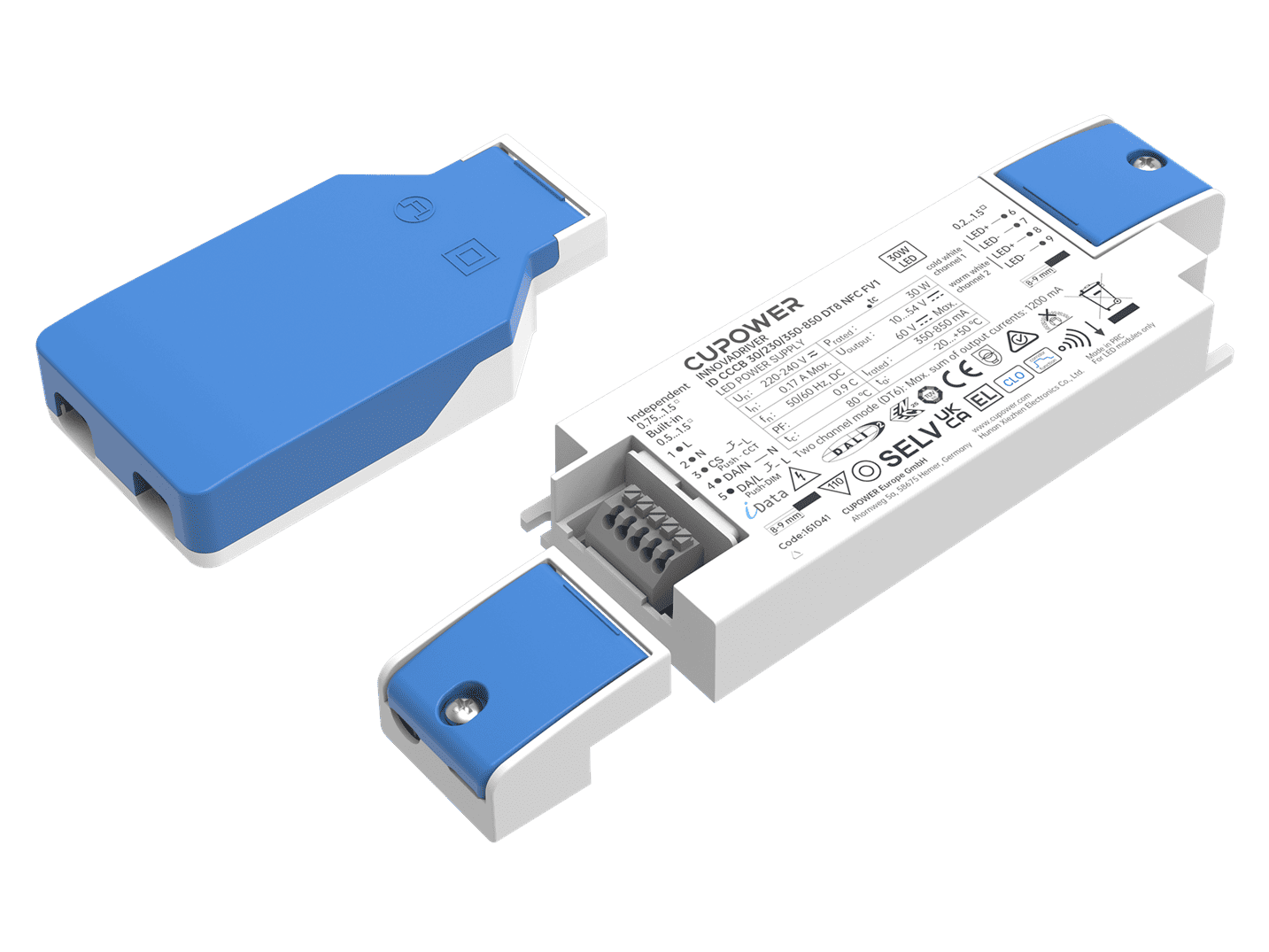

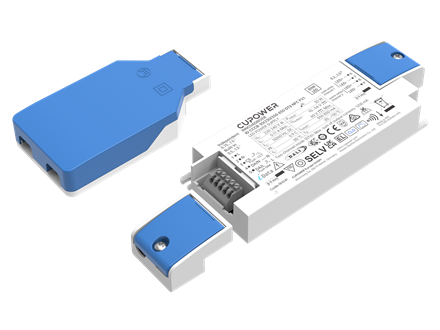

  • 新30 - 副本
Questions Order a Sample
Product description
Isolated adjustable power color temperature LED driver
Supports DALI-2, push DIM control , push CCT control
Usable as DT6 (2-channel) or DT8 (tunable white) driver
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 350…850 mA
Max. output power 30 W
For luminaries of protection class l, ll
DC emergency
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.17 A @ 230 Vac
THD:≤ 20%
Inrush current [Aµs]:Inrush current lpeak: 4.69 A、Inrush current Twidth: 40.5 μs
MCB Quantity B10A:53
MCB Quantity C10A:53
MCB Quantity B16A:84
MCB Quantity C16A:84
Output current tolerance:

± 5%

Output voltage max:60 Vdc
Ripple:≤ 5%
Standby power consumption:≤ 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2，Push Dimming
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/P-O/P: 3.75KVac,＜5mA 60 sec,I/P-DA: 1.5KVac,＜5mA 60 sec；O/P-DA: 1.5VKac,＜5mA 60 sec

Product nameOutput currentInput


               voltage		Output

               voltage		Efficiency
               @full load		Current accuracyPower factor
ID CCCB 30/230/350-850 DT8 NFC FV1350...850 mA

220...240 Vac

220...240 Vdc

10...54 V90%± 5%

0.9(@ 10...30 W)


Operating temperature:-20…+50 °C
Storage temperature:-25…+85 °C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 80°C: 50,000 hrs @230 Vac
Maximum Tc temperature:80°C
Pcs./ carton:

24 pcs

Carton size:

280 x 179.5 x 114 mm

Gross weight:

4 kg
