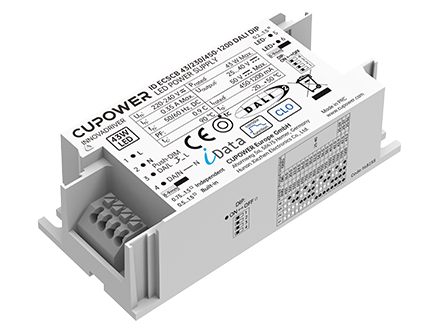

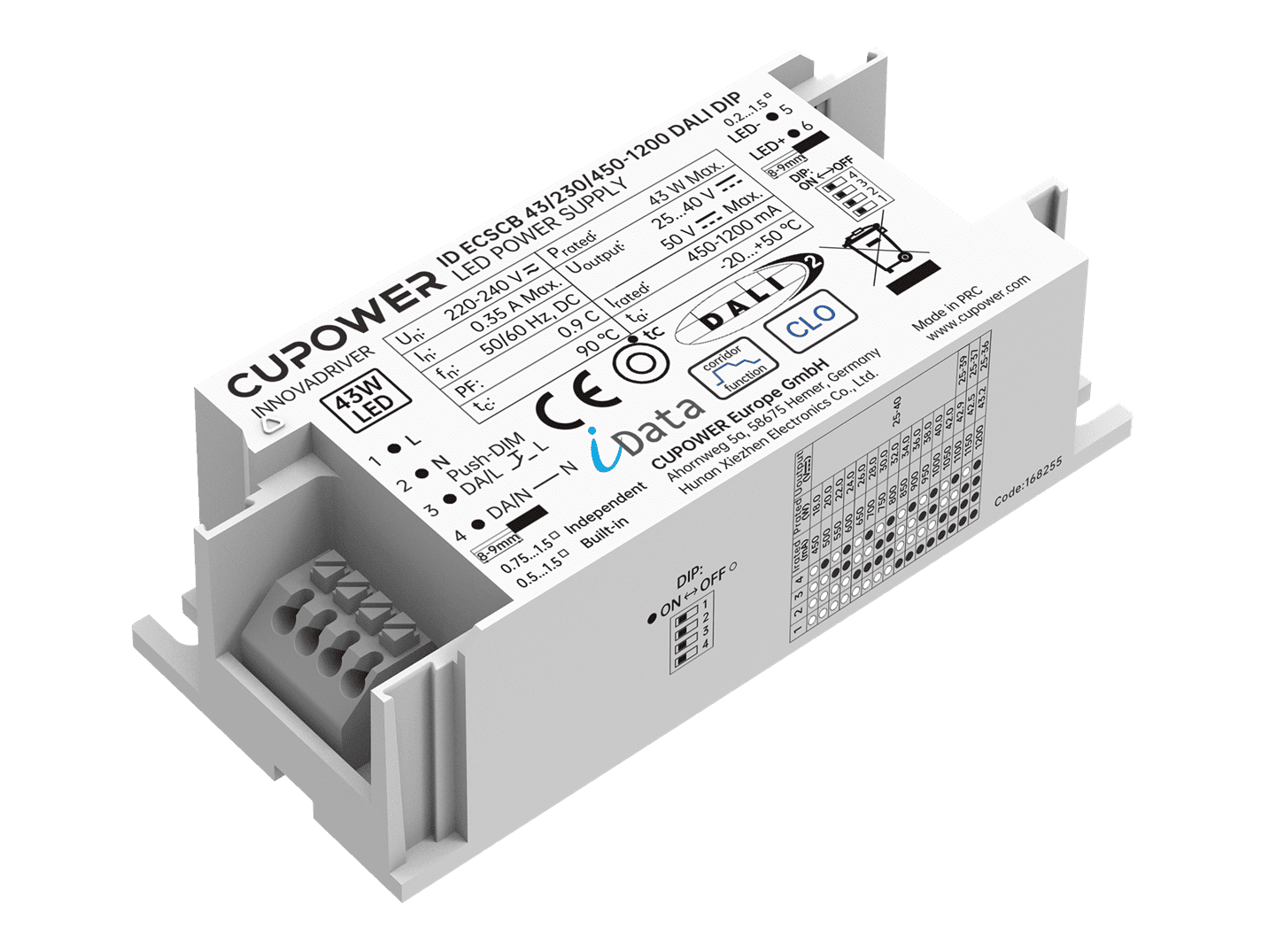

168255 ID ECSCB 43/230/450-1200 DALI DIP

< Back

L97 x W43 x H30 mm

WT: 0.14 kg

Product description

Constant current driver with wide operation windows
Supports DALI-2 and push DIM
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
The DC emergency mode adjusts the current to 15% by default (adjustable)
Smooth dimming with dimming range 1-100% (amplitude dimming)
DIP switch for multi-current setting
Loop through connection comply with 2.5mm² engineering cable entry specifications
Standby power consumption ≤ 0.5 W, meets ErP energy efficiency certification

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	198...250 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.35 A @ 230 Vac
THD:	≤ 15%
Inrush current [Aµs]:	Inrush current lpeak: 3.26 A, Inrush current Twidth: 34 μs
MCB Quantity B10A:	38
MCB Quantity C10A:	38
MCB Quantity B16A:	60
MCB Quantity C16A:	60
Output current tolerance:	± 5%
Output voltage max:	59 Vdc
Ripple:	≤ 5%
Standby power consumption:	≤ 0.5 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2，Push Dimming
Dimming range:	1％...100％
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.75kVac,＜5mA 60 sec,I/P-DA: 1.5kVac,＜5mA 60 sec；O/P-DA: 1.5kVac,＜5mA 60 sec
