111127 ID UCSVB 96/120277/48 ND

< Back

L6 x W1.07 x H0.78 in [L152.4 x W27.3 x H19.8 mm]

WT: 0.185 kg

Product description

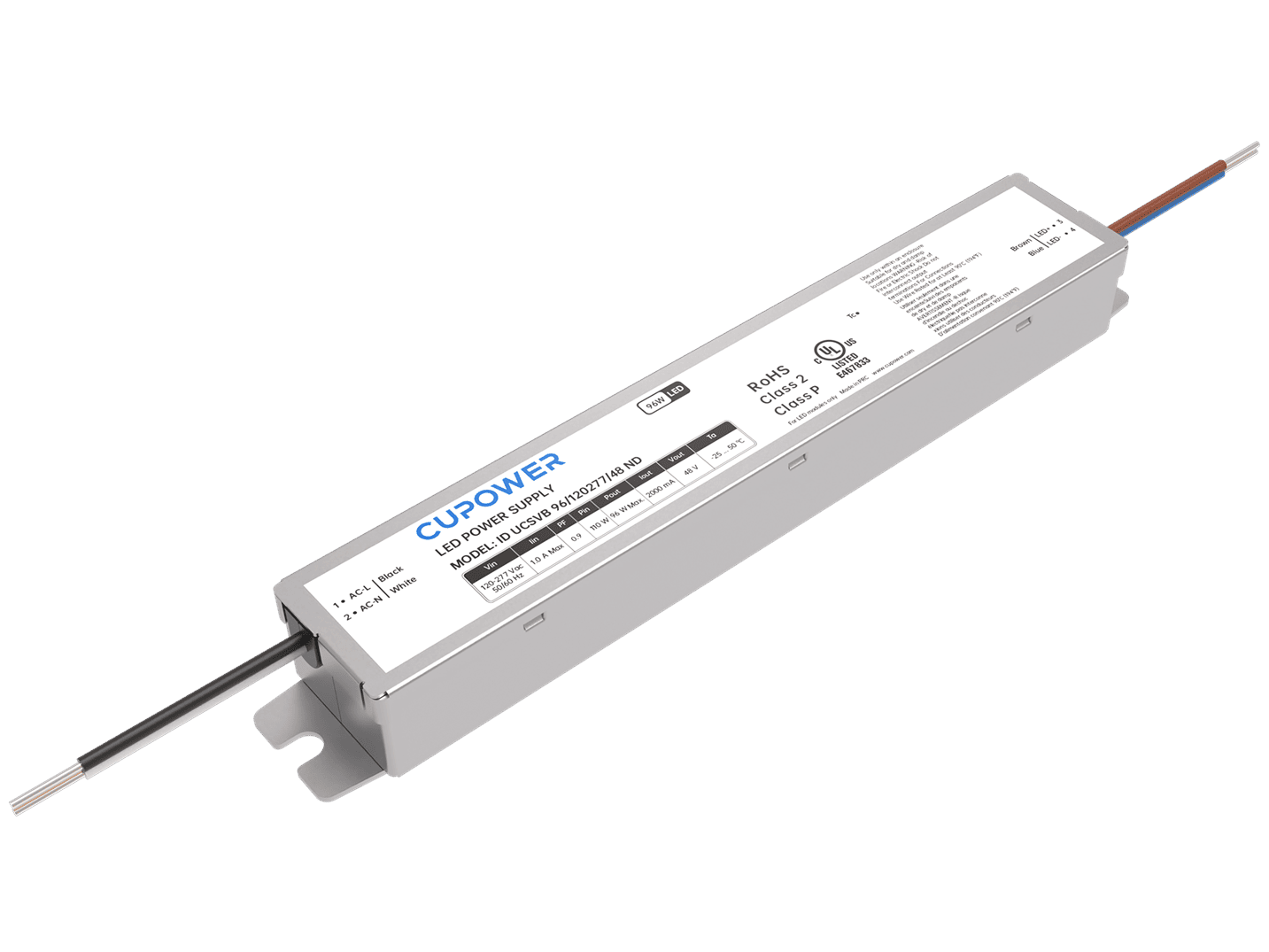

Compact Constant Voltage LED Driver
Built-in active PFC function
Efficiency up to 93 %
Flicker-free LED driver
Max. output power 96 W
Protections: short circuit/over load/ over temperature
5 years warranty

Swipe for more

Rated input voltage range:	120 … 277 VAC; performance range
Max.input voltage range:	108 ... 305 VAC; operational safety range
Rated input current DC range:	50/60 Hz
Performance / Operational safety:	47 ... 63 Hz
Max. input current:	1 A
Withstand voltage:	I/p-O/p: 1.8 kVAC, < 5 mA 60 s, I/p-earth: 1.8 kVAC, < 5 mA 60 s, O/p-earth: 0.6 kVAC, < 5 mA 60 s
THD:	≤ 20 %
Inrush current [Aµs]:	/
MCB Quantity B10A:	/
MCB Quantity C10A:	/
MCB Quantity B16A:	/
MCB Quantity C16A:	/
Output current range:	/
Default output current.:	/
Output voltage range:	/
Noise level:	< 20 dB(A) at full load @ 100 cm distance
Output current tolerance:	± 5 % at rated input voltage range
No load output voltage:	/
Ripple output current:	2 %
Dimming mode:	/
Dimming method:	/
Dimming current range:	/

Product name

Output current

Input

voltage

Output

voltage

Efficiency
@full load

Current accuracy

Power factor

ID UCSVB 96/120277/48 ND

0 … 2,000 mA

120 ... 277 VAC

48 V

90 % @ 120 VAC

93 % @ 277 VAC

± 5 %

0.95

Operating temperature:	-25 … +50 ℃
Storage temperature:	-25 … +85 ℃
Working humidity:	10 … 90 %
Storage humidity:	5 … 95 %
Driver lifetime:	at Tc 75 ℃: 50,000 h @ performance range (0.2 % / 1,000 h failure rate)
Maximum Tc temperature:	90 ℃
