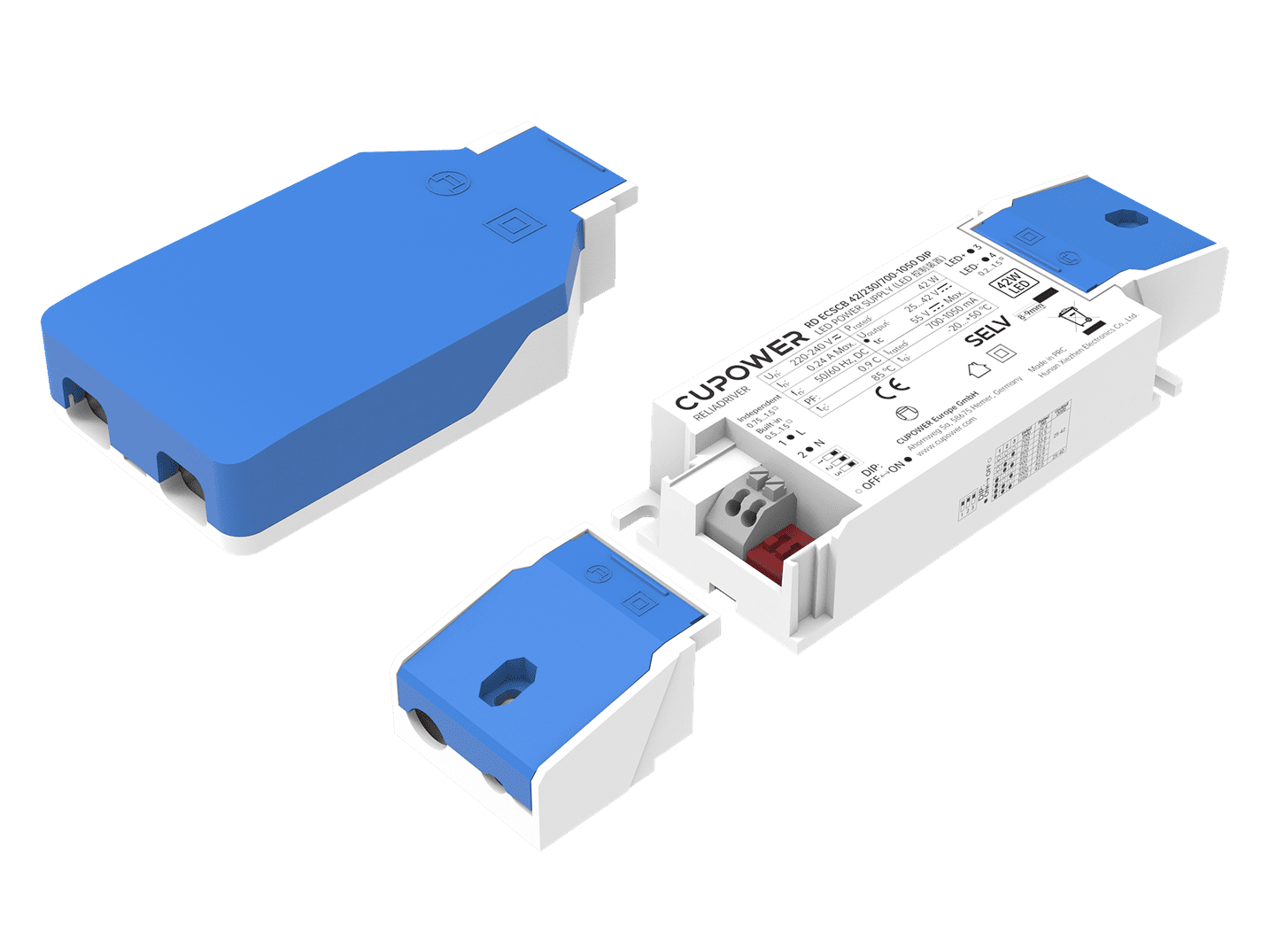

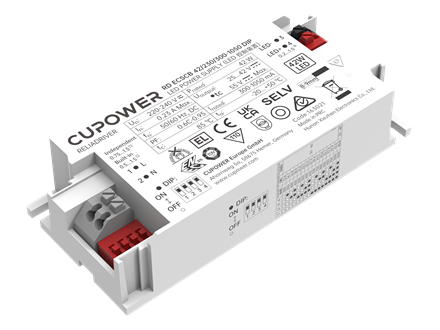

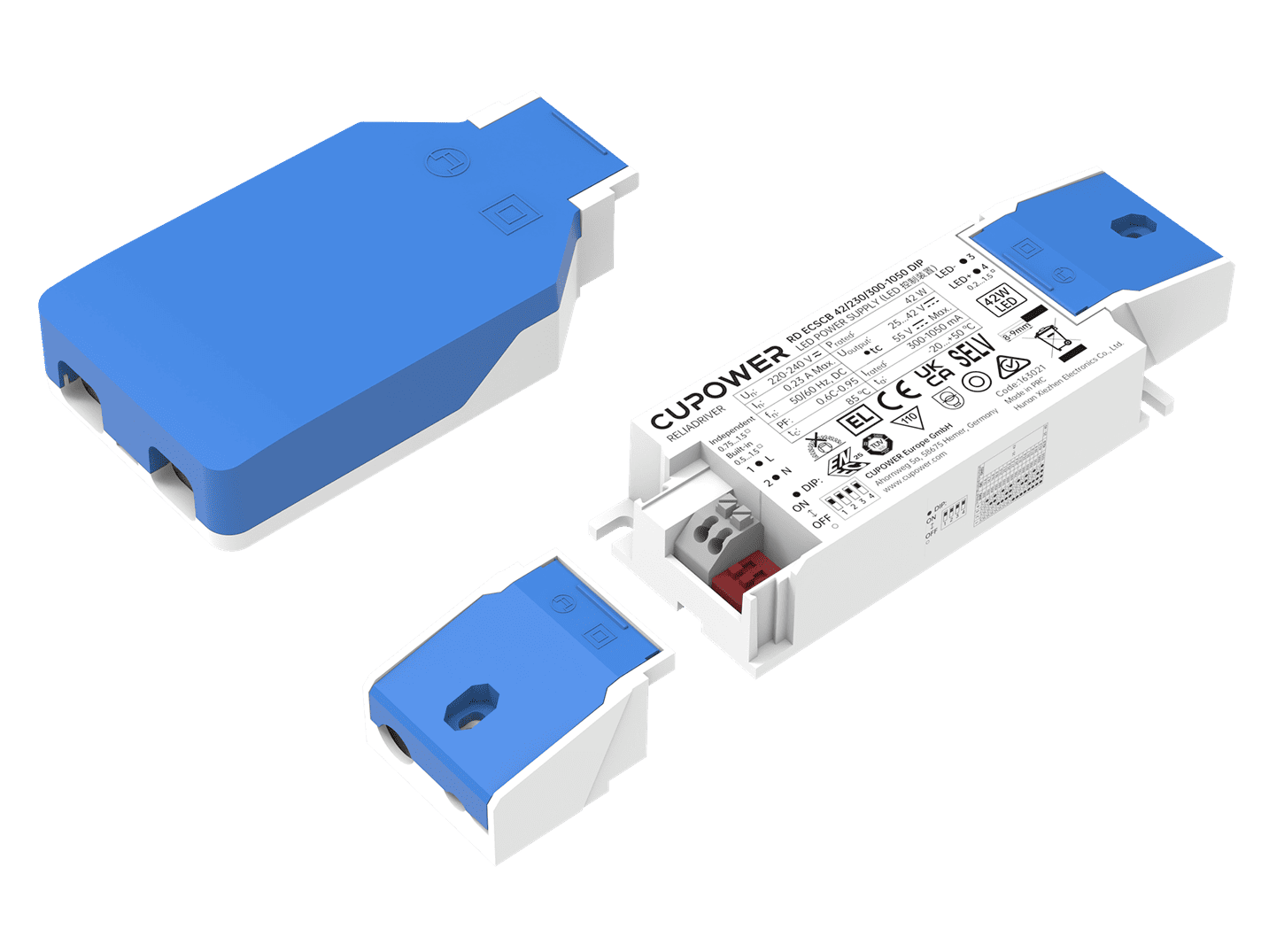

163021 RD ECSCB 42/230/300-1050 DIP

< Back

L97 x W43 x H21.4 mm

WT: 0.096 kg

Questions Order a Sample

Product description

High power factor
Flicker-free
Loop through connection comply with 2.5mm² engineering cable entry specifications
DIP switch for multi-current setting
Suitable for Class I/II luminaires

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A @ 230 Vac
THD:	< 10% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 14.6 A、Inrush current Twidth: 284 μs
MCB Quantity B10A:	15
MCB Quantity C10A:	25
MCB Quantity B16A:	24
MCB Quantity C16A:	41
Output current tolerance:	± 5%
Output voltage max:	55 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	<1 at full load @ rated input voltage
Output SVM:	<0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.75 KVac, ＜ 5 mA 60 sec

Operating temperature:	-20…+50°C
Storage temperature:	-40…+80°C
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @230 Vac
Maximum Tc temperature:	85°C

Pcs./ carton:	60 pcs
Carton size:	303 x 225 x 120 mm
Gross weight:	6.3 kg

Data sheets
Approvals
3D Drawing
Declaration

CE-LVD_RD_ECSCB_42_230_300-1050_DIP
ENEC_RD_ECSCB_42_230_300-1050_DIP
CE-EMC_RD_ECSCB_42_230_300-1050_DIP
Download all
