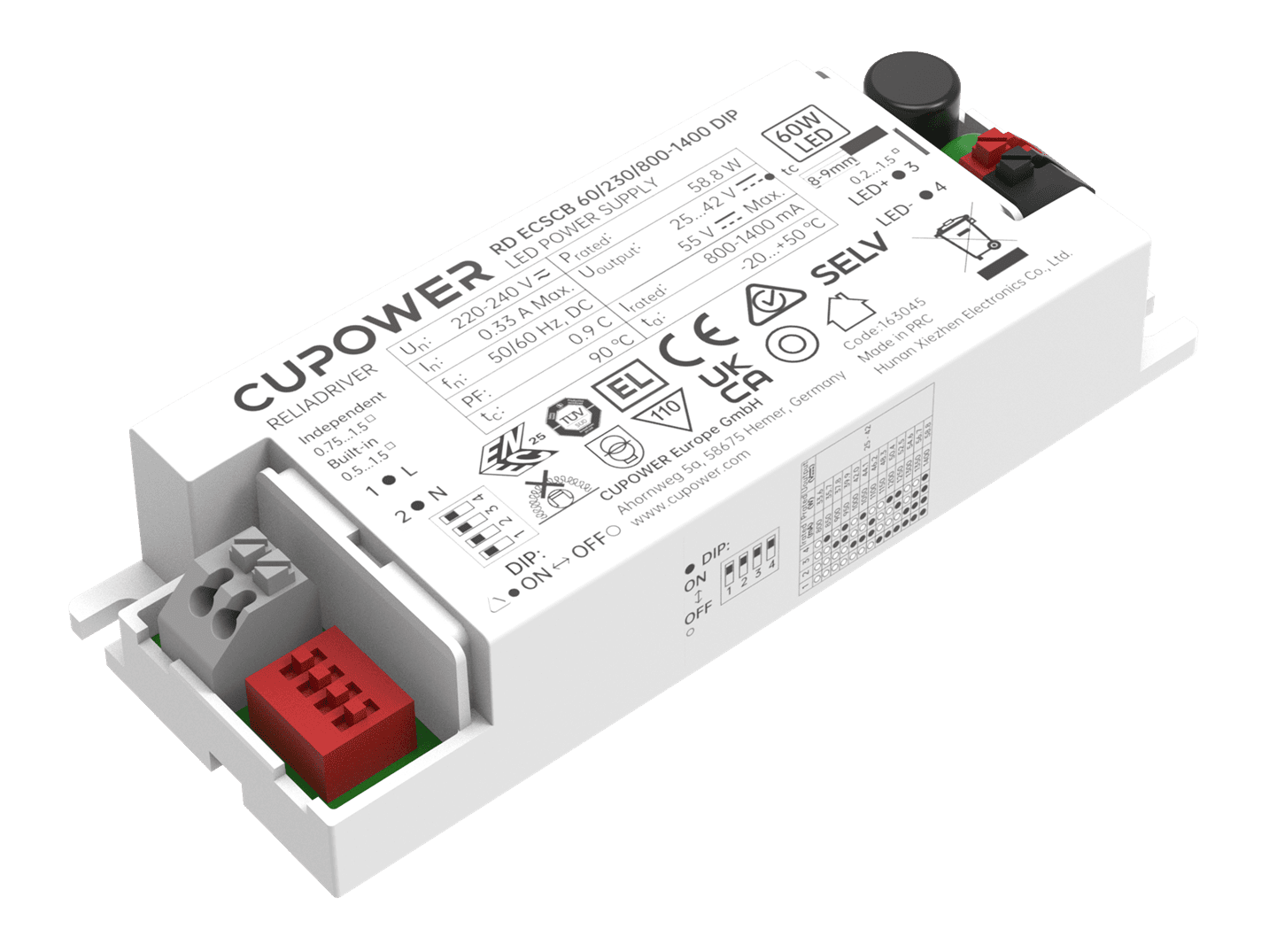

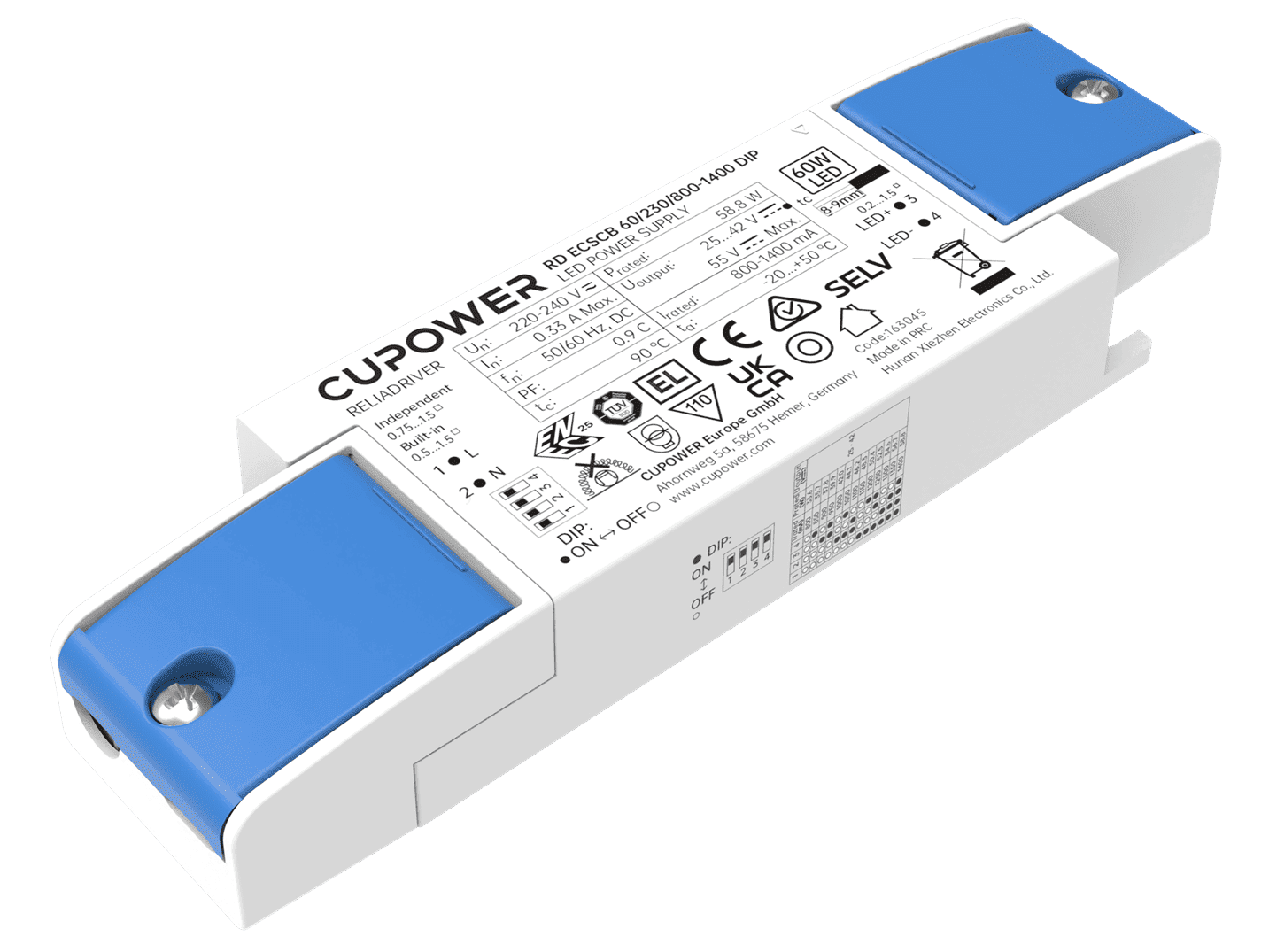

163045 RD ECSCB 60/230/800-1400 DIP

< Back

L109 x W43 x H21 mm

WT: 0.140 kg

Questions Order a Sample

Product description

High power factor
Flicker-free
Loop through connection comply with 2.5mm² engineering cable entry specifications
DIP switch for multi-current setting
Suitable for Class I/II luminaires

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
DC Rated input voltage range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A @ 230 Vac
THD:	≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 9.92 A、Inrush current Twidth: 480 μs
MCB Quantity B10A:	12
MCB Quantity C10A:	21
MCB Quantity B16A:	20
MCB Quantity C16A:	34
Output current tolerance:	± 5%
Output voltage max:	55 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	DIP control adjusts the current; 800-1400 mA
Withstand voltage:	I/P-O/P: 3 KVac, ＜ 5 mA 60 sec

Operating temperature:	-20…+50°C
Storage temperature:	-25…+85°C
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	85°C

Pcs./ carton:	60 pcs
Carton size:	271 x 230 x 140 mm
Gross weight:	9.0 kg
