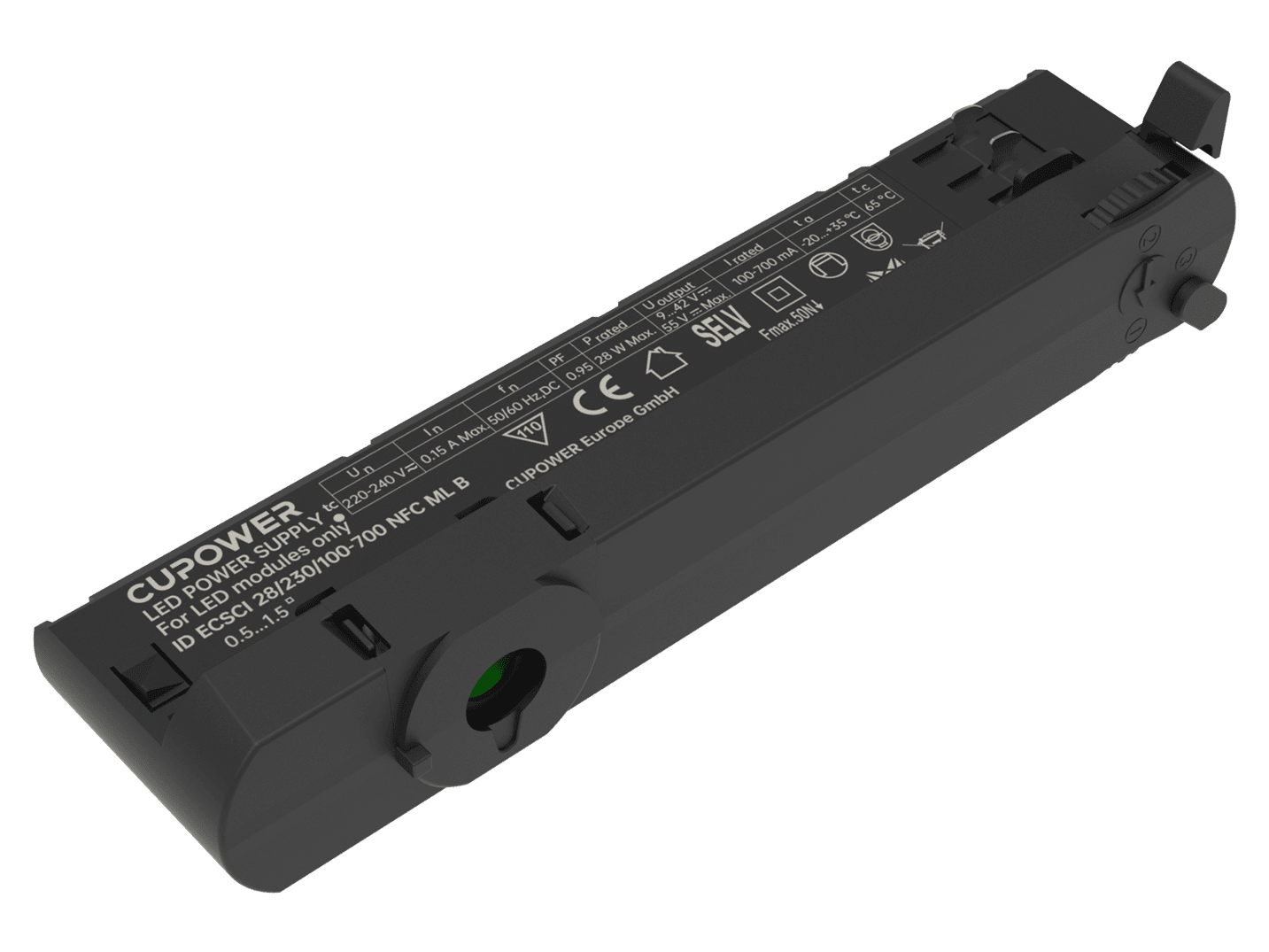

168200 ID ECSCI 28/230/100-700 NFC ML B

< Back

L181.5 x W31.1 x H42.2 mm

WT: 0.125 kg

Product description

Isolated adjustable power LED driver
Current adjustment via NFC
Constant lumen output (CLO)
Output current 100…700 mA
Max. output power 28 W
DC emergency
Flicker-free, dimming range 1...100% (amplitude dimming)
Current output default value 100%
For luminaires with protection class ll

Swipe for more

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176…280 Vdc
Rated input current:	0.15 A @ 230 Vac & 0.15 A @ 230 Vdc
THD:	≤ 10%
Inrush current [Aµs]:	23 A, 135 μs
MCB Quantity B10A:	34
MCB Quantity C10A:	57
MCB Quantity B16A:	55
MCB Quantity C16A:	91
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	≤ 55 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	< 0.4 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	AM dimming
Dimming range:	1...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product name

Output
current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCI 28/230/100-700 NFC ML B

100...700 mA

220...240 Vac

220...240 Vdc

9...42 V

89%

± 5%

0.9

Operating temperature:	-20…+35°C
Storage temperature:	-25…+85°C
Working humidity:	10…90%
Storage humidity:	5...95%
Driver lifetime:	at Tc 65°C: 50,000 h @ 230 Vac
Maximum Tc temperature:	70°C
