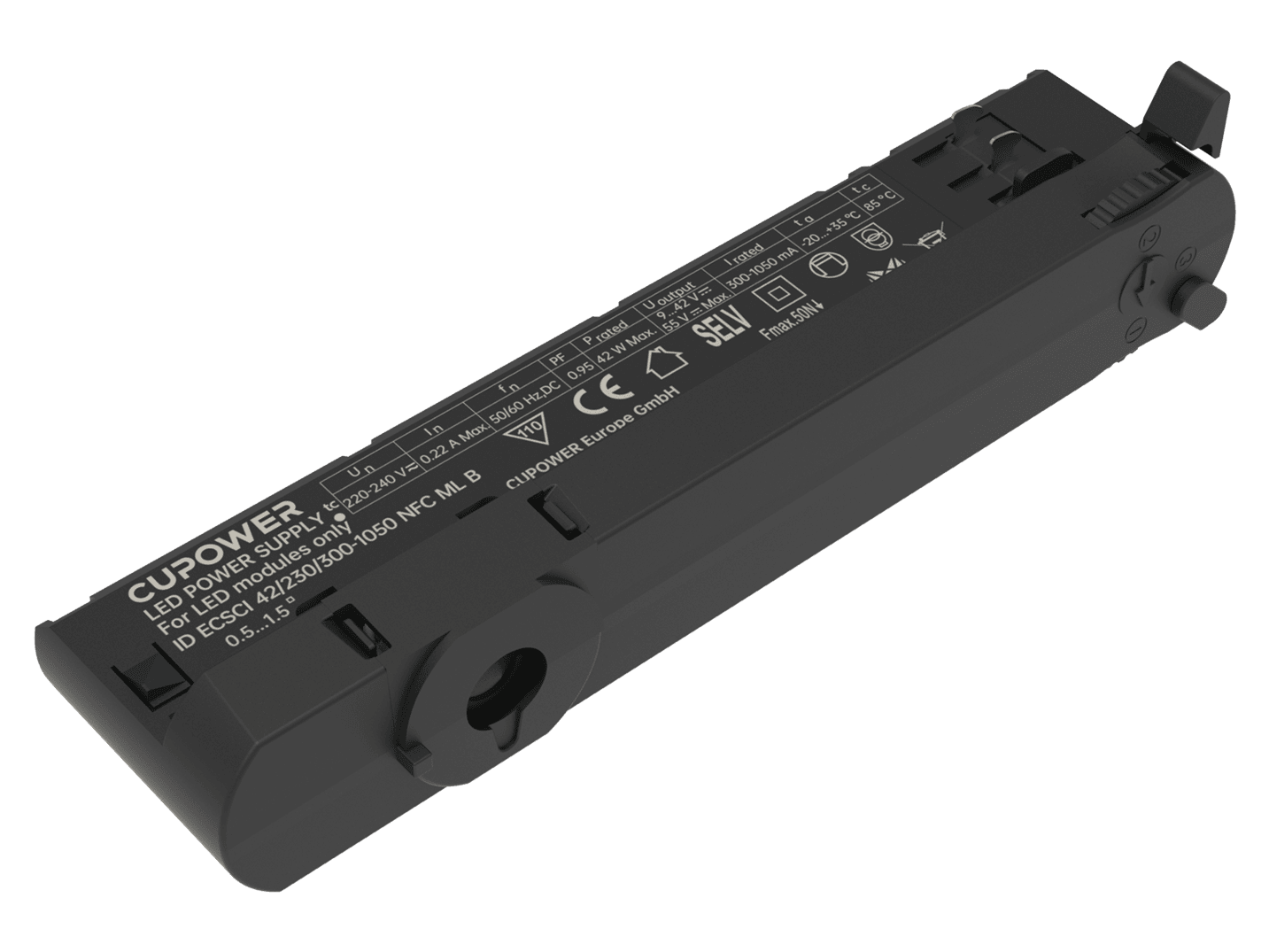

167548 ID ECSCI 42/230/300-1050 NFC ML B

< Back

L181.6 x W31.2 x H46 mm

WT:0.125 kg

Questions Order a Sample

Product description

Constant current driver with wide operating windows
Standby power consumption＜0.4 W, meets ErP energy efficiency certificat
Integrated wireless module for wireless ecosystem
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Enables reading fixture lifetime data: Data management, energy monitoring, predictive maintenance
Smooth dimming with dimming range 1-100% (amplitude dimming)

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A @ 230 Vac & 0.24 A @ 230 Vdc
THD:	≤ 10%
Inrush current [Aµs]:	TBD
MCB Quantity B10A:	TBD
MCB Quantity C10A:	TBD
MCB Quantity B16A:	TBD
MCB Quantity C16A:	TBD
Output current tolerance:	± 5%
Output voltage max.:	≤ 55 Vdc
Ripple:	≤ 5%
Standby power consumption:	< 0.4 W@230 Vac
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	AM dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-FG: 1.5 kVac, < 5 mA 60 sec

Operating temperature:	-20...+35℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	50000 hrs
Maximum Tc temperature:	110℃

Pcs./ carton:	50 Pcs
Carton size:	L339 x W200 x H290 mm
Gross weight:	6.6 Kg
