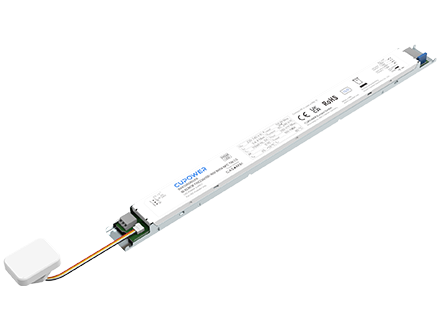

166800 ID ELNCB 110/230/100-900 SKY NFC TW

< Back

L405 x W29.5 x H16 mm

WT: 0.28 kg

Product description

Built-in non isolated adjustable power LED driver
Supports NFC readers for precise setting and control of multiple functions
Support wireless dimming and color temperature adjustable
Current adjustment via NFC
Output current 100…900 mA
Max. output power 110 W
DC emergency
Current output default value 100%
For luminaires with protection class l
With anti glow function
Flicker-free, with a dimming range of 1...100% via an Skylink.
Constant lumen output (CLO)
Packing unit programming: configure a large number of drivers in parallel via NFC
The external antenna must be ordered separately

Swipe for more

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	198...280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.6 A@ 230 Vac
THD:	10%
Inrush current [Aµs]:	29.4 A, 200 us
MCB Quantity B10A:	15
MCB Quantity C10A:	15
MCB Quantity B16A:	24
MCB Quantity C16A:	24
Output current tolerance:	± 5%
Output voltage max.:	250 V
Ripple:	5%
Standby power consumption:	≤ 0.4 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	BLE dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-FG: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELNCB 110/230/100-900 SKY NFC TW

100...900 mA

220...240 Vac

220...240 Vdc

50...240 V

93%

± 5%

0.9

Operating temperature:	-20...+55℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 75℃: 50,000 hrs @ 230 Vac
Maximum Tc temperature:	80℃
