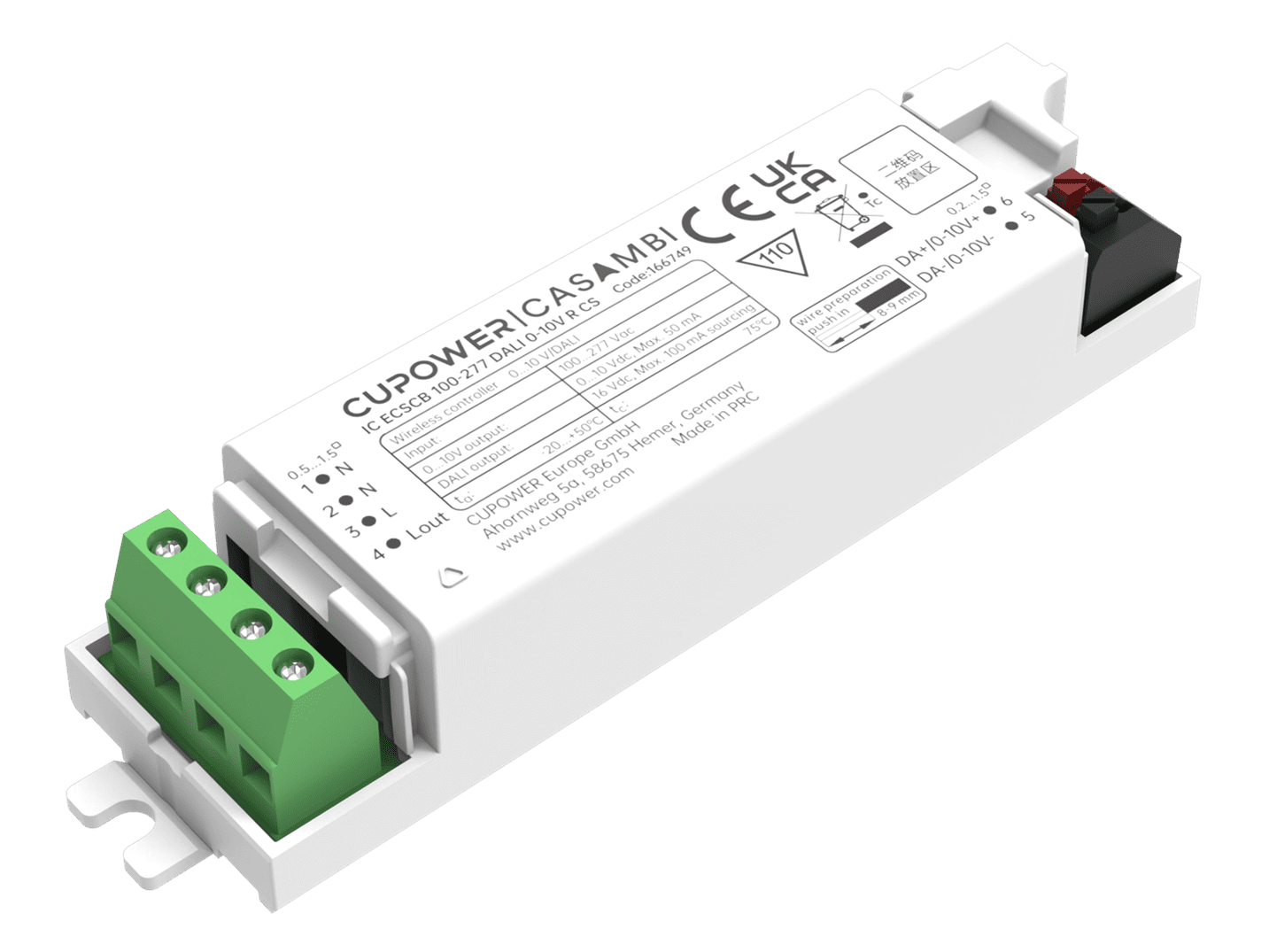

166749 IC ECSCB 100-277 DALI 0-10 V R CS

< Back

L105 x W29 x H21 mm

WT: 0.046 Kg

Product description

Bridge between DALI / 0-10 V systems and wireless solutions
Long-range, one-channel 0-10 V / DALI 2 controller
Bluetooth-controlled Casambi-enabled
Relay with zero-crossing, carries a maximum current of 10 A
5 year warranty

Swipe for more

Rated input voltage range:	100...277 Vac
Max.input voltage range:	0.06 A @ 100 Vac
RF transmit power:	+ 8 dBm
Wireless frequency:	2.4 GHz
Wireless range (open air):	50 m
Output voltage 0-10V:	0...10 Vdc
Output voltage DALI:	12...16 Vdc
Output current DALI:	100 mA
Relay control:	10 A Max

Product name	Input voltage	DALI	0-10 V
IC ECSCB 100-277 DALI 0-10 V R CS	100-277 VAC	12...16 V 100 mA	0...10 V 50 mA

Operating temperature:	-20…+50℃
Storage temperature:	-25…+85℃
Working humidity:	0%…80%
Store humidity:	0%…95%
Driver lifetime:	at Tc 75℃: 50,000 hrs @ 100 Vac
Maximum Tc temperature:	75℃

Pcs./ carton:	60 Pcs
Carton size:	313 x 177 x 147 mm
Gross weight:	2.4 kg
