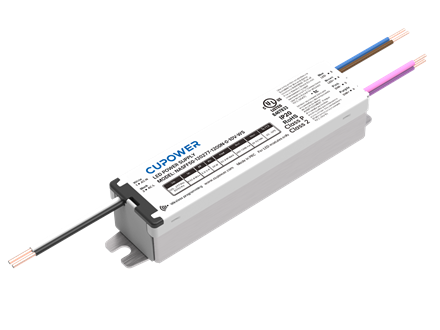

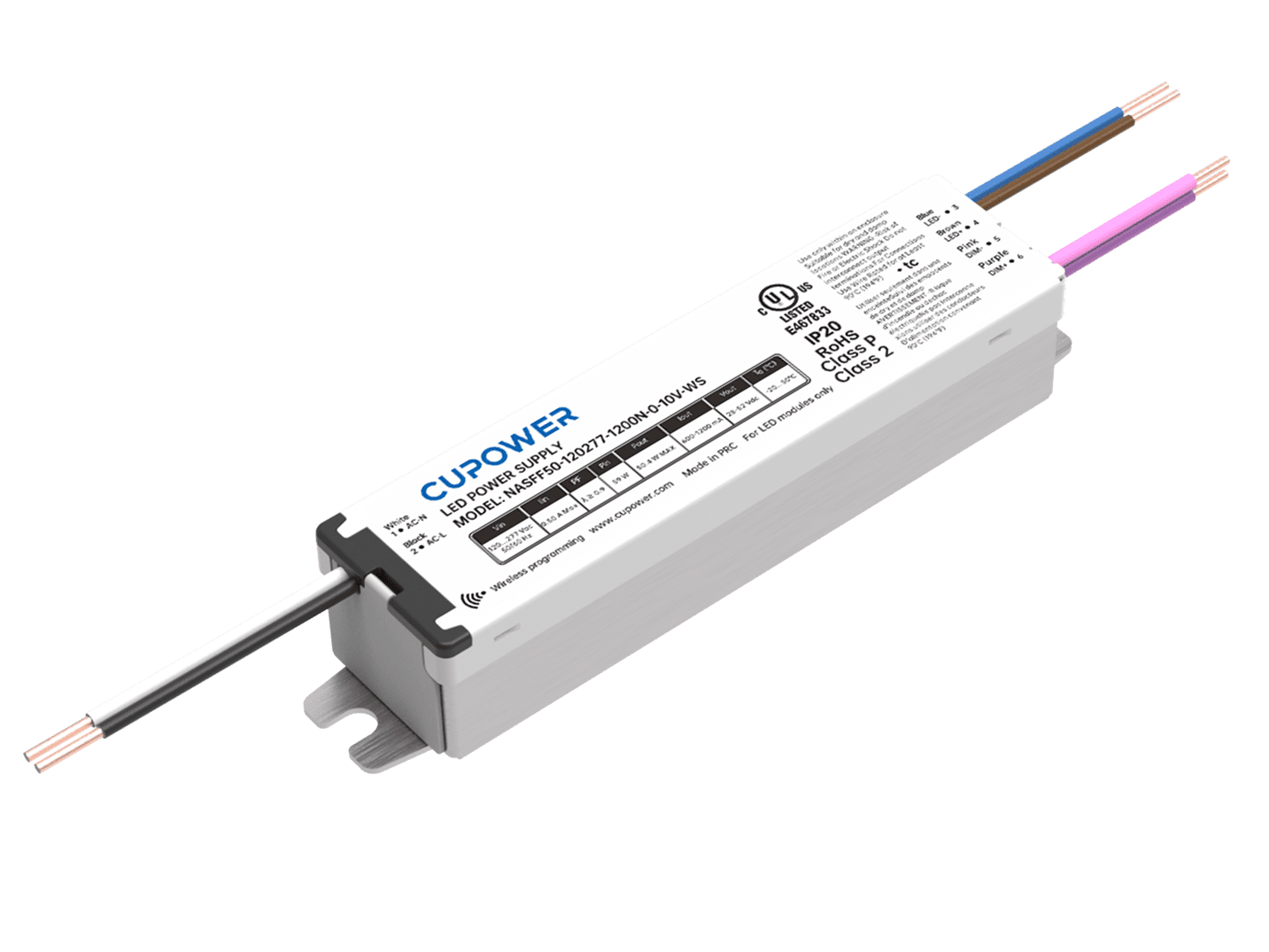

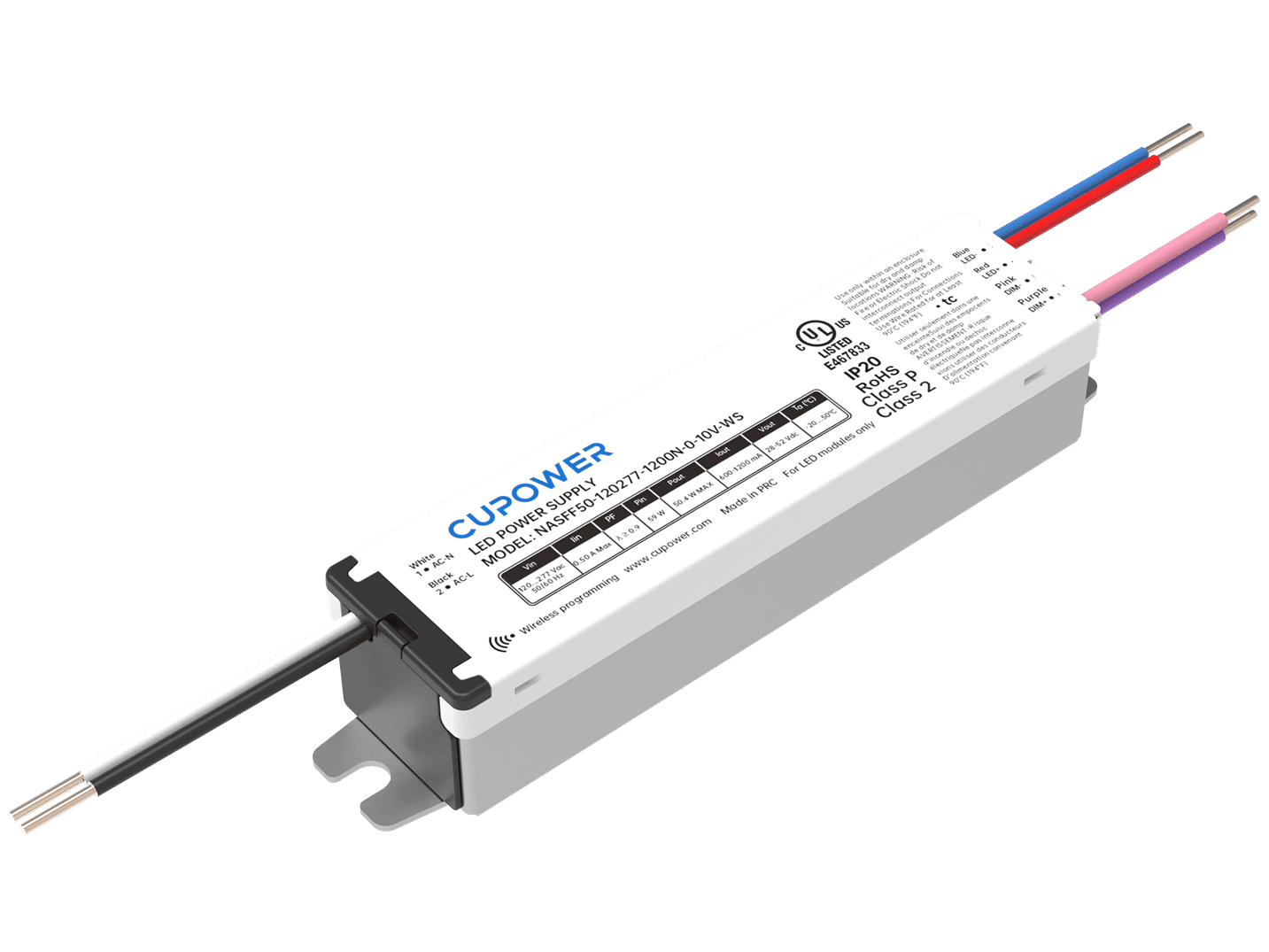

680041 NASFF50-120277-1200N-0-10V-WS

< Back

L120 x W27.4 x H22.65 mm

WT: 0.135 kg

Product description

Built-in isolated adjustable power LED driver
Current adjustment via NFC
Output current 600…1200 mA
Max. output power 50 W
Flicker-free, dimming range 1%...100% (amplitude dimming)
Current output default value 100%
For luminaires with protection class l

Swipe for more

Rated input voltage range:	120…277 Vac; performance range
Max.input voltage range:	108...305 Vac; operational safety range
Rated frequency range:	50/60 Hz
Performance / Operational safety:	47...63 Hz
Max. input current:	0.5 A @ 120 Vac
THD:	≤ 20%
Inrush current [Aµs]:	17.8 A , 128 μs
MCB Quantity B10A:	16
MCB Quantity C10A:	16
MCB Quantity B16A:	27
MCB Quantity C16A:	27
Output current range:	600…1200 mA (programmable)
Default output current.:	1200 mA
Output voltage range:	28…52 Vdc
Noise leve:	< 20 dB, at full load @ 100 cm distance

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
NASFF50-120277-1200N-0-10V-WS	600…1200 mA	120...277 Vac	28...52 V	90% (typical)	± 5%	0.9

Operating temperature:	-20… +50℃
Storage temperature:	-25… +85℃
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 75℃: 50,000 hrs @ performance range (0.2% / 1,000 h failure rate)
Maximum Tc temperature:	90℃
