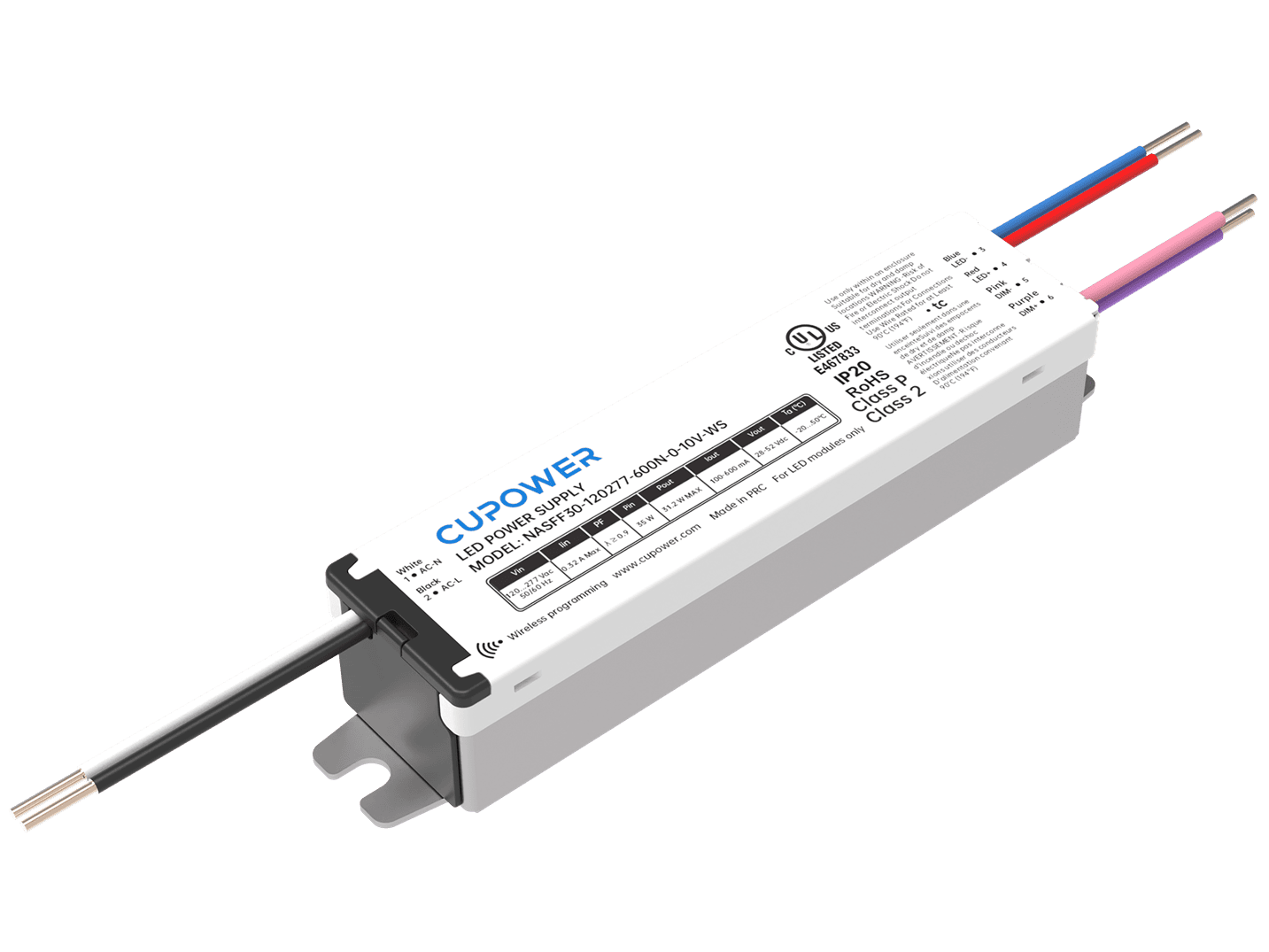

SFF Compact Drivers

Product description

UL Class P rating lets you easily transit to this driver
Compact form factor for versatile installation options
Complies with DLC and Title 24 requirements for energy efficiency
Dimming range of 1-100% (amplitude dimming) for flicker-free operation
Casambi Ready for seamless integration into smart lighting networks
Supports NFC programming for easy configuration and customization
Learn more about Casambi

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)	Data sheet (download)
165803	XNASFF50-1200S-NFC-CAS	50 W	100-277VAC 100-277VDC	28-52V	600-1200mA	90%	103.5 x 27.3 x 22.65 mm
166428	XNASFF30-600S-NFC-CAS	30 W	100-277VAC 100-277VDC	28-52V	100-600mA	88%	103.5 x 27.3 x 22.65 mm

CS = Casambi

Specifications
Downloads
Technical features

Power range:	3-62W
Adjustable output current:	NFC
Dimming interface:	CASAMBI
Dimming range:	1-100%
Flicker-free:	<5%
Input votage shock:	N/A
Operating temperature range:	-20...+50°C
Power factor:	0.9 (Output Power > 25 W)
Surge protection:	I/p-O/p: 1.6 kVac, < 5 mA 60 sec, I/p-earth: 1.6 kVac, < 5 mA 60 sec, O/p-earth: 0.5 kVac, < 5 mA 60 sec
Start up time:	750ms
Lifetime:	50,000 h
Type of Protection:	IP20
Warranty:	5 year

Data sheets
Approvals
3D Drawing
Declaration

166428_XNASFF30_600S_NFC_CAS
165803_XNASFF50_1200S_NFC_CAS
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

3D_SFF_Compact_Drivers
Download all

N/A
Download all

Supports multiple protocols and is compatible with multiple lighting fixtures

The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.

NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.

Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).

Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.

Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.

D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
