165803 XNASFF50-1200S-NFC-CAS

< Back

L4.72 x W1.08 x H0.89 in

WT: 0.135 kg

Product description

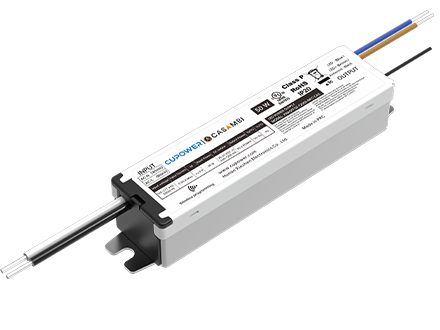

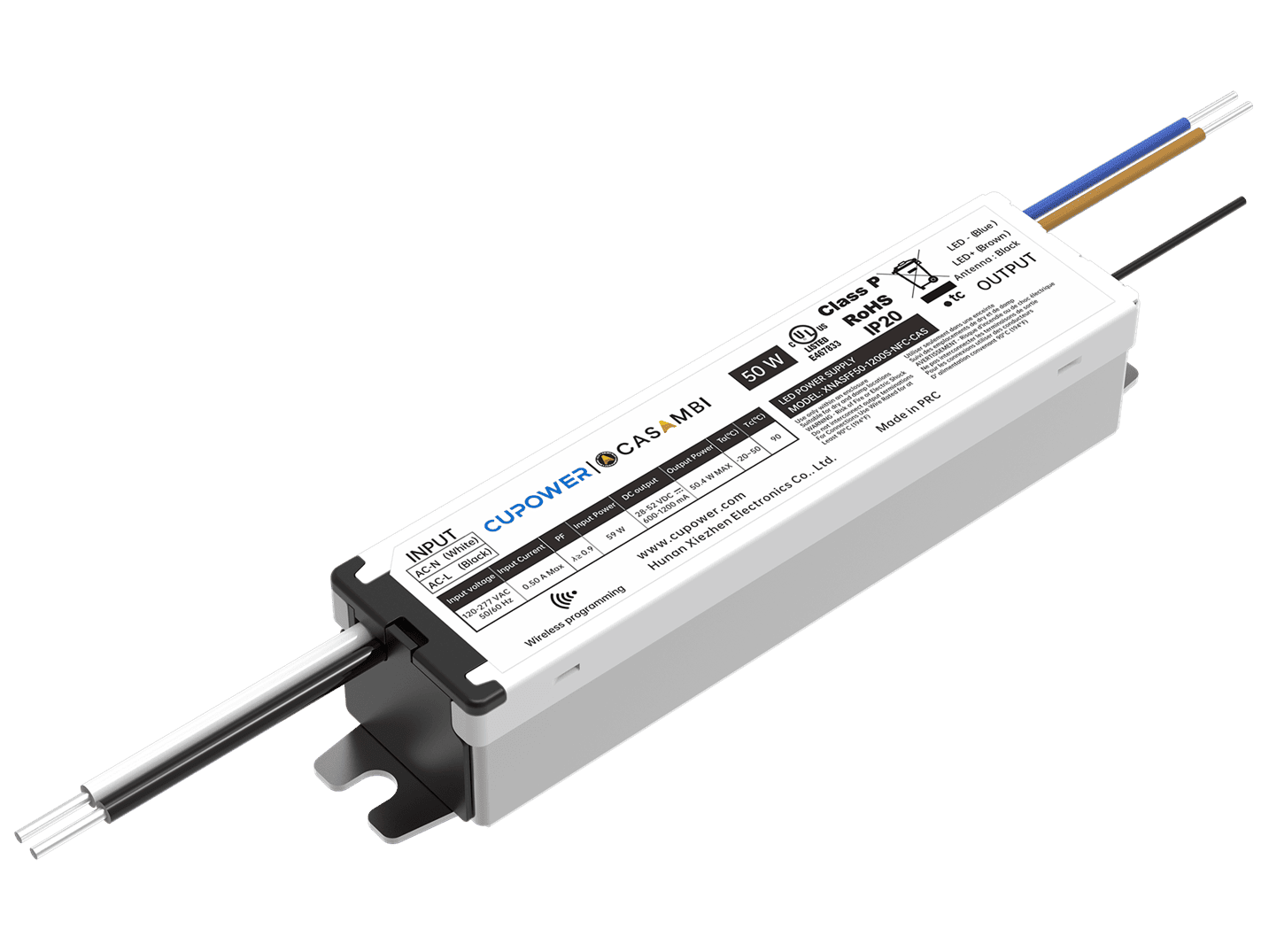

Small-sized constant current LED driver
Support Bluetooth mesh
Current adjustment via NFC
Standby power < 0.5 W
Lifetime 50,000 h
Flicker-free, meets requirements of IEEE 1789-2015
Complies with ENERGY STAR, DLC & CA Title 24 requirements
For luminaires with protection class l
Swipe for more
Rated input voltage range:120…277 Vac; performance range
Max.input voltage range:108...305 Vac; operational safety range
Rated frequency range:50/60 Hz
Performance / Operational safety:47...63 Hz
Max. input current:0.5 A @ 120 Vac
THD:≤ 20%
Inrush current [Aµs]:/
MCB Quantity B10A:/
MCB Quantity C10A:/
MCB Quantity B16A:/
MCB Quantity C16A:/
Output current range:NFC control adjusts the current: 600…1200 mA
Default output current.:1,200 mA
Output voltage range:28 … 52 Vdc
Noise leve:< 20 dB, at full load @ 100 cm distance


Product nameOutput currentInput
               voltage
Output
               voltage
Efficiency                @full loadCurrent accuracyPower factor
XNASFF50-1200S-NFC-CAS

600…1200 mA

120...277 Vac

   28...52 V90 % (@ 277 VAC)89 % (@ 120 VAC)± 5%0.9


Operating temperature:-20 … +50 ℃
Storage temperature:-25 … +85 ℃
Working humidity:10 … 90 %
Storage humidity:5 … 95 %
Driver lifetime:at Tc 75 ℃: 50,000 h @ performance range (0.2 % / 1,000 h failure rate)
Maximum Tc temperature:90 ℃
Pcs./ carton:64 Pcs
Carton size:

11.97 x 11.26 x 6.30 in

(304 x 286 x 160 mm)

Gross weight:9.6 kg
