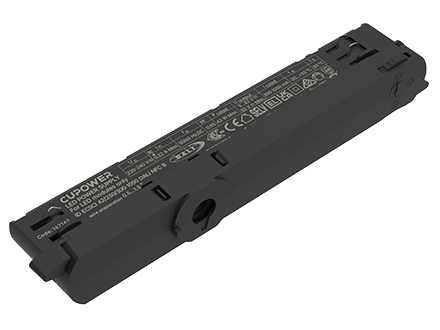

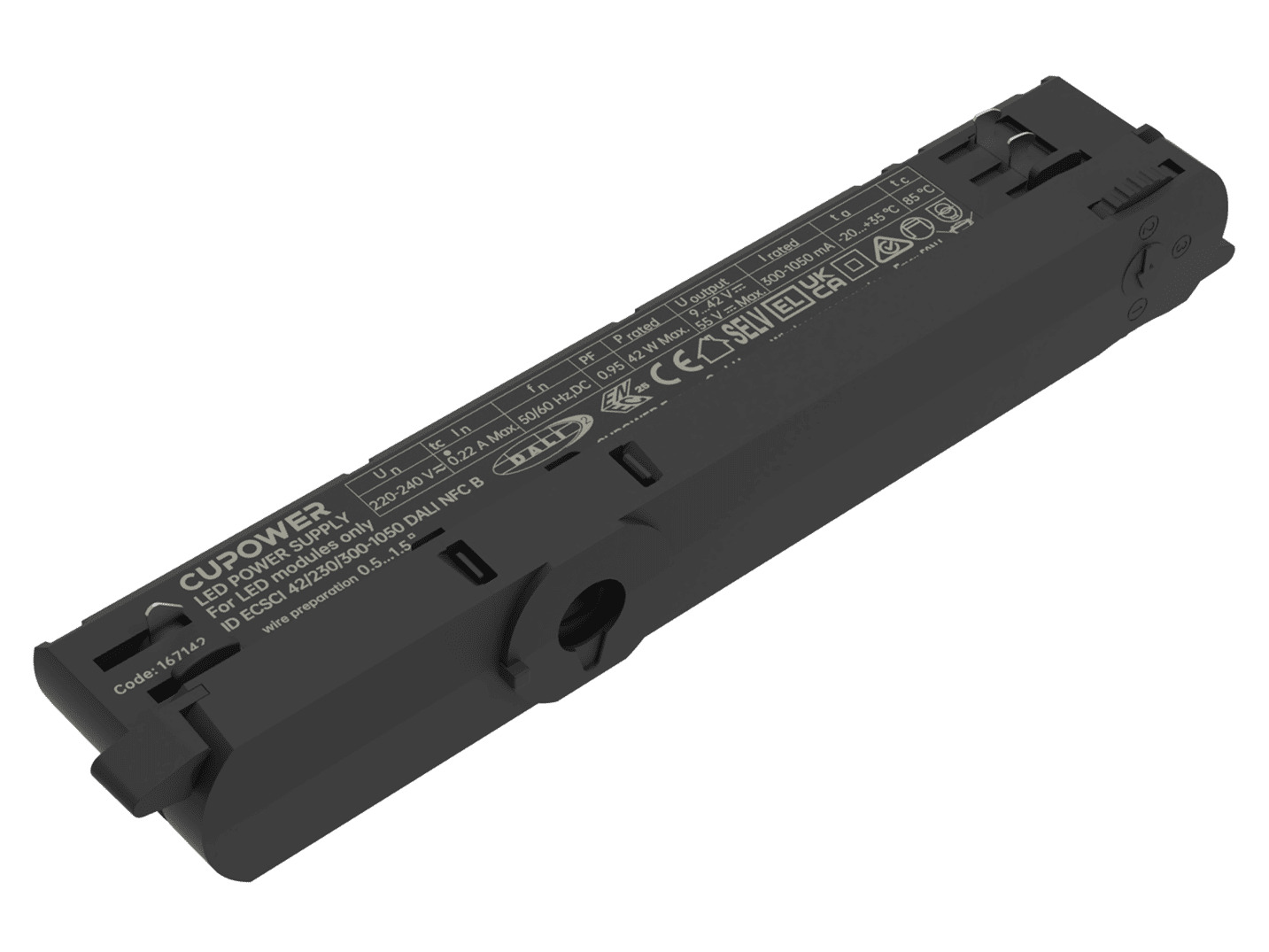

167142 ID ECSCI 42/230/300-1050 DALI NFC B

< Back

L208.2 x W31.1 x H42.2 mm

WT: 0.14 kg

Questions Order a Sample
Product description
  • Standby power consumption: < 0.3 W
  • Dimming range 1-100% (amplitude dimming), Flicker-free
  • Equipped with i-Data: enabling data managament according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
  • Supports NFC readers for precise setting and control of multiple functions
  • The DC emergency mode adjusts the currents to 15% by default (adjustable)
  • Packing unit programming: configure a large number of drivers in parallel via NFC
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.24 A @ 230 Vac & 0.24 A @ 230 Vdc
THD:10%
Inrush current:135 μs
MCB Quantity B10A:28
MCB Quantity C10A:37
MCB Quantity B16A:46
MCB Quantity C16A:59
Output current tolerance:± 5%
Output voltage max.:≤ 55 V
Ripple:5%
Standby power consumption:≤ 0.3 W
Output PstLM:≤ 1
Output SVM:≤ 0.4
Dimming mode:DALI-2, push dimming
Dimming range:1%...100%
Adjustable output current:NFC
Withstand voltage:I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec
