DALI-2 NFC > ID series

Product description

Standby power consumption: < 0.3 W
Dimming range 1-100% (amplitude dimming), Flicker-free
Equipped with i-Data: enabling data managament according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the currents to 15% by default (adjustable)
Packing unit programming: configure a large number of drivers in parallel via NFC
3 colours available: black, white, grey

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)

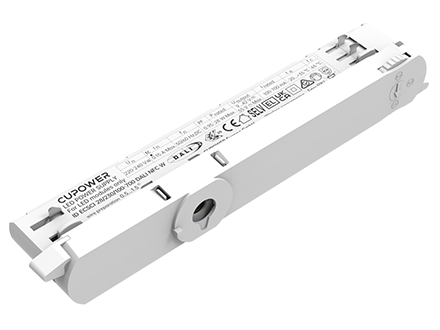

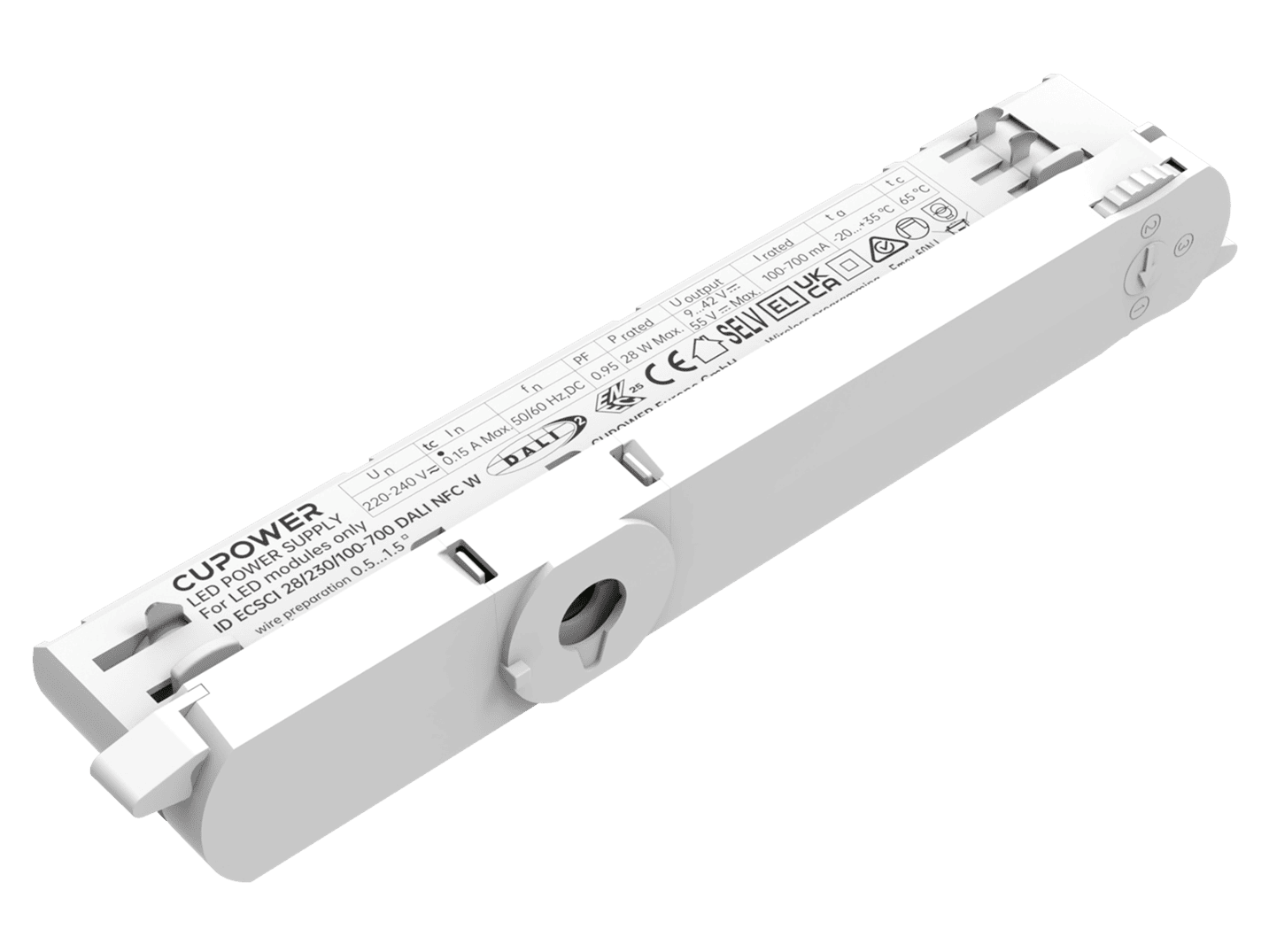

164189	ID ECSCI 28/230/100-700 DALI NFC W	28 W	220-240VAC 220-240VDC	9-42V	100-700mA	89%	208 x 31 x 45 mm
167128	ID ECSCI 28/230/100-700 DALI NFC B	28 W	220-240VAC 220-240VDC	9-42V	100-700mA	89%	208 x 31 x 45 mm

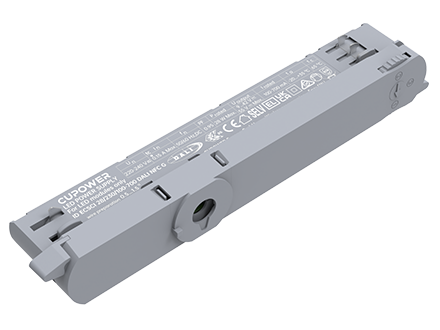

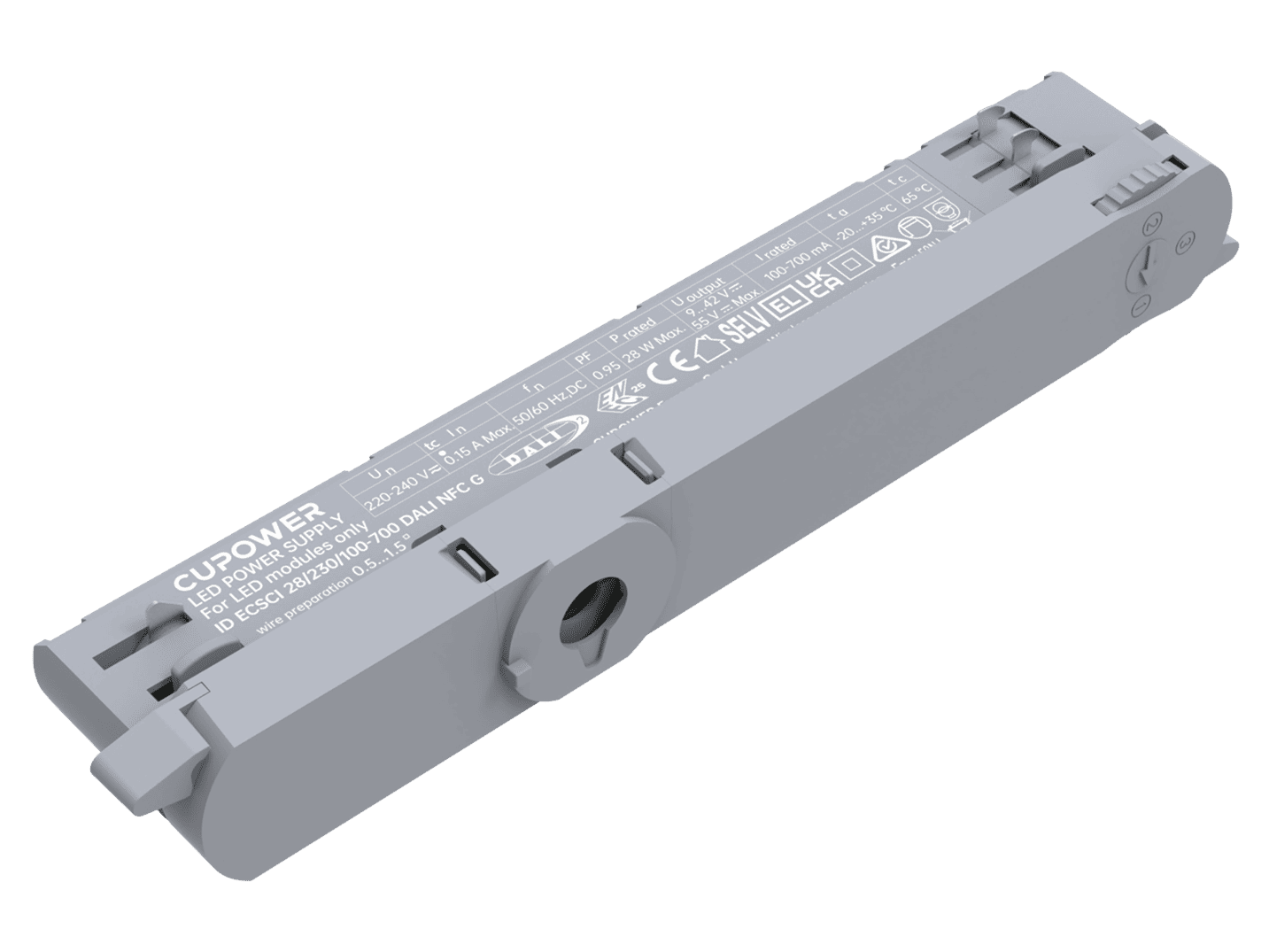

167135	ID ECSCI 28/230/100-700 DALI NFC G	28 W	220-240VAC 220-240VDC	9-42V	100-700mA	89%	208 x 31 x 45 mm
164196	ID ECSCI 42/230/300-1050 DALI NFC W	42 W	220-240VAC 220-240VDC	9-42V	300-1050mA	88%	208.2 x 31.1 x 42.2 mm
167142	ID ECSCI 42/230/300-1050 DALI NFC B	42 W	220-240VAC 220-240VDC	9-42V	300-1050mA	88%	208.2 x 31.1 x 42.2 mm
167159	ID ECSCI 42/230/300-1050 DALI NFC G	42 W	220-240VAC 220-240VDC	9-42V	300-1050mA	88%	208.2 x 31.1 x 42.2 mm

Specifications
Downloads
Technical features

Power range:	1-42W
Adjustable output current:	NFC
Dimming interface:	DALI-2, push DIM
Dimming range:	1...100%
Flicker-free:	PstLM≤1，SVM≤0.4
Input votage shock:	350 VAC, 2 h
Operating temperature range:	Ta -20…+35°C
Power factor:	＞ 0.9
Surge protection:	L-N: 1 kV
Start up time:	＜ 700 ms @ 230 V
Lifetime:	50,000 h
Type of Protection:	IP20
Warranty:	5 year

Data sheets
Approvals
3D Drawing
Declaration

164196_ID_ECSCI_42_230_300_1050_DALI_NFC_W
167142_ID_ECSCI_42_230_300_1050_DALI_NFC_B
167159_ID_ECSCI_42_230_300_1050_DALI_NFC_G
Download all

CE-LVD_DALI-2_NFC_ID_series
ENEC+EL_DALI-2_NFC_ID_series
Download all

3D_DALI-2_NFC_ID_series_28W_42W
Download all

CE_Declaration_of_Conformity_DALI-2_NFC_ID_series
Download all

Supports multiple protocols and is compatible with multiple lighting fixtures

The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.

NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.

Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).

Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.

Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.

D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
