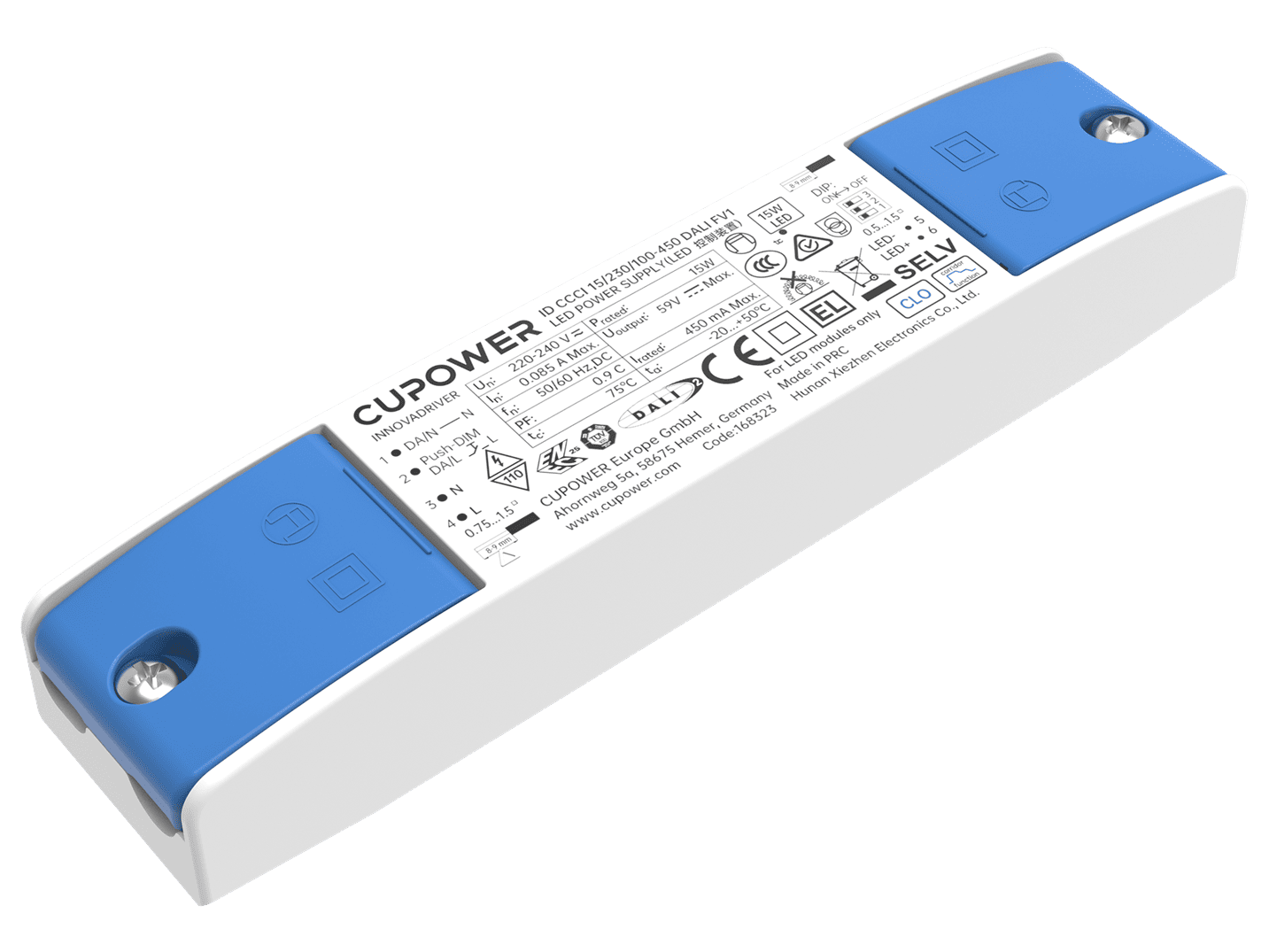

168323 ID CCCI 15/230/100-450 DALI FV1

< Back

L145 x W33 x H21 mm

WT: 0.08 kg

Questions Order a Sample
Product description
  • Constant current driver with wide operation windows
  • Supports DALI-2 and push DIM
  • Smooth, flicker free dimming with dimming range 1-100% (amplitude dimming)
  • DIP switch for multi-current setting
  • Standby power consumption＜0.5 W, meets ErP energy efficiency certification
  • For 1.5 mm2 wiring on primary and secondary side
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.085 A @ 230 Vac
THD:≤ 20%
Inrush current [Aµs]:Inrush current lpeak: 1.55 A Inrush current Twidth: 30 μs
MCB Quantity B10A:122
MCB Quantity C10A:122
MCB Quantity B16A:196
MCB Quantity C16A:196
Output current tolerance:

± 5%

Output voltage max.:59 Vdc
Ripple:≤ 5%
Standby power consumption:≤ 0.5 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2，Push Dimming
Dimming range:1％...100％
Adjustable output current:DIP
Withstand voltage:

I/P-O/P: 3.0 kVac, < 5 mA 60 sec; I/P-DA/P: 1.5 kVac, < 5 mA

60 sec;O/P-DA/P: 1.5 kVac, < 5 mA 60 sec
