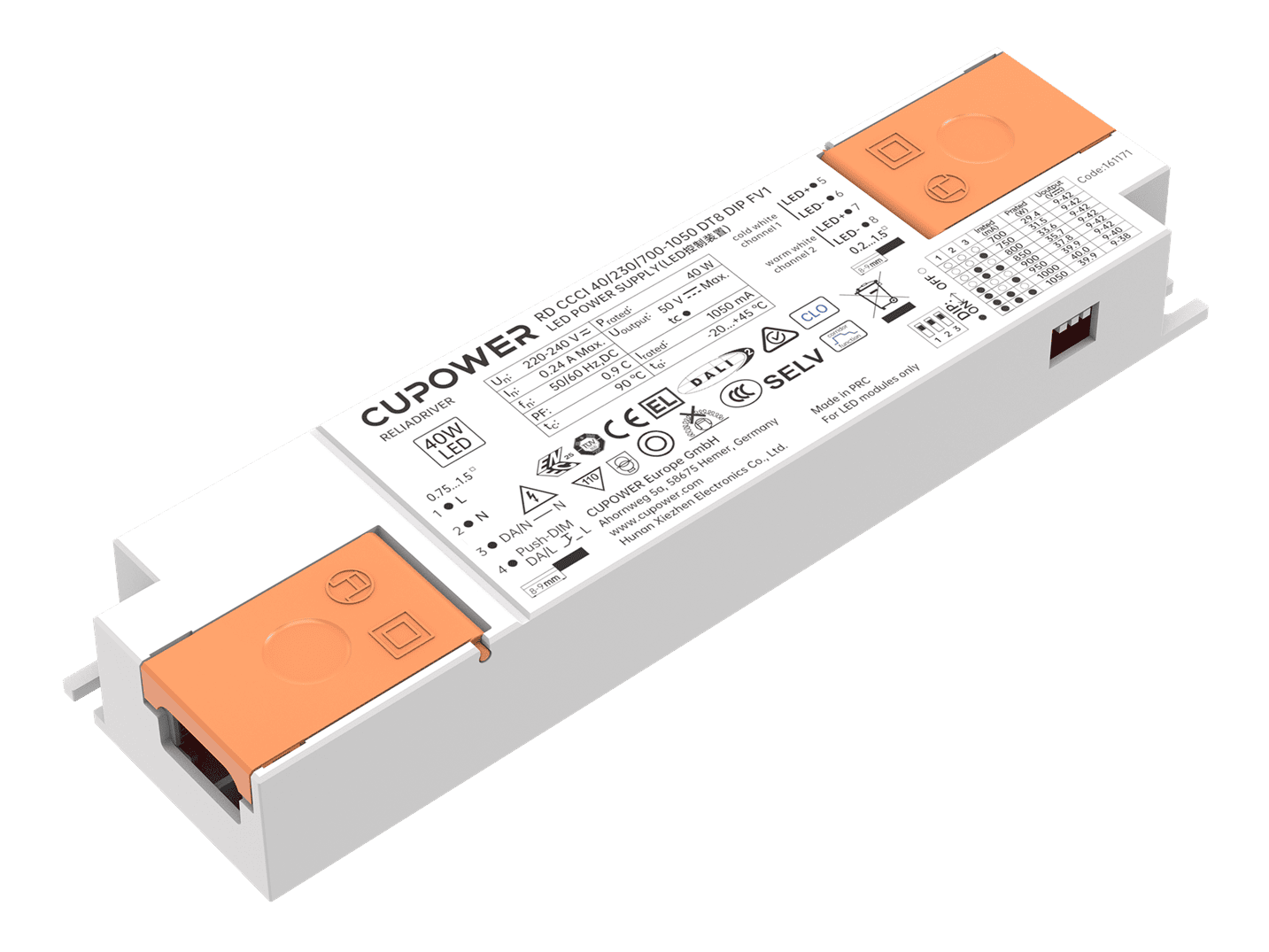

161171 RD CCCI 40/230/700-1050 DT8 DIP FV1

< Back

L156 x W43 x H21 mm

WT: 0.12 kg

Questions Order a Sample

Product description

Constant current driver with wide operation windows
Supports DALI-2, push DIM and push CCT
Smooth dimming with dimming range 0.1-100%
Fine color temperature adjustment
DIP switch for multi-current setting
Standby power consumption ≤ 0.5 W, meets ErP energy efficiency certification
For 1.5 mm² wiring on primary and secondary side

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	198...278 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A @ 230 Vac
THD:	≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 5.33 A Inrush current Twidth: 40 μs
MCB Quantity B10A:	46
MCB Quantity C10A:	46
MCB Quantity B16A:	73
MCB Quantity C16A:	73
Output current tolerance:	± 5%
Output voltage max:	50 Vdc
Ripple:	≤ 5%
Standby power consumption:	≤ 0.5 W
Output PstLM:	≤1 at full load @ rated input voltage
Output SVM:	≤0.4 at full load @ rated input voltage
Dimming mode:	DALI-2，Push Dimming
Dimming range:	0.1％...100％
Adjustable output current：	DIP
Withstand voltage:	I/P-O/P: 3.75 KVac, ＜ 5 mA 60 sec, I/P-DA: 1.5 KVac,＜ 5 mA 60 sec; O/P-DA: 1.5 KVac, ＜ 5 mA 60 sec

Operating temperature:	-20…+45°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc < 90°C: 50,000 hrs; at Tc 80°C: 100,000 hrs @230V ac
Maximum Tc temperature:	90°C

Pcs./ carton:	86 pcs
Carton size:	397 x 322 x 138 mm
Gross weight:	11 kg
