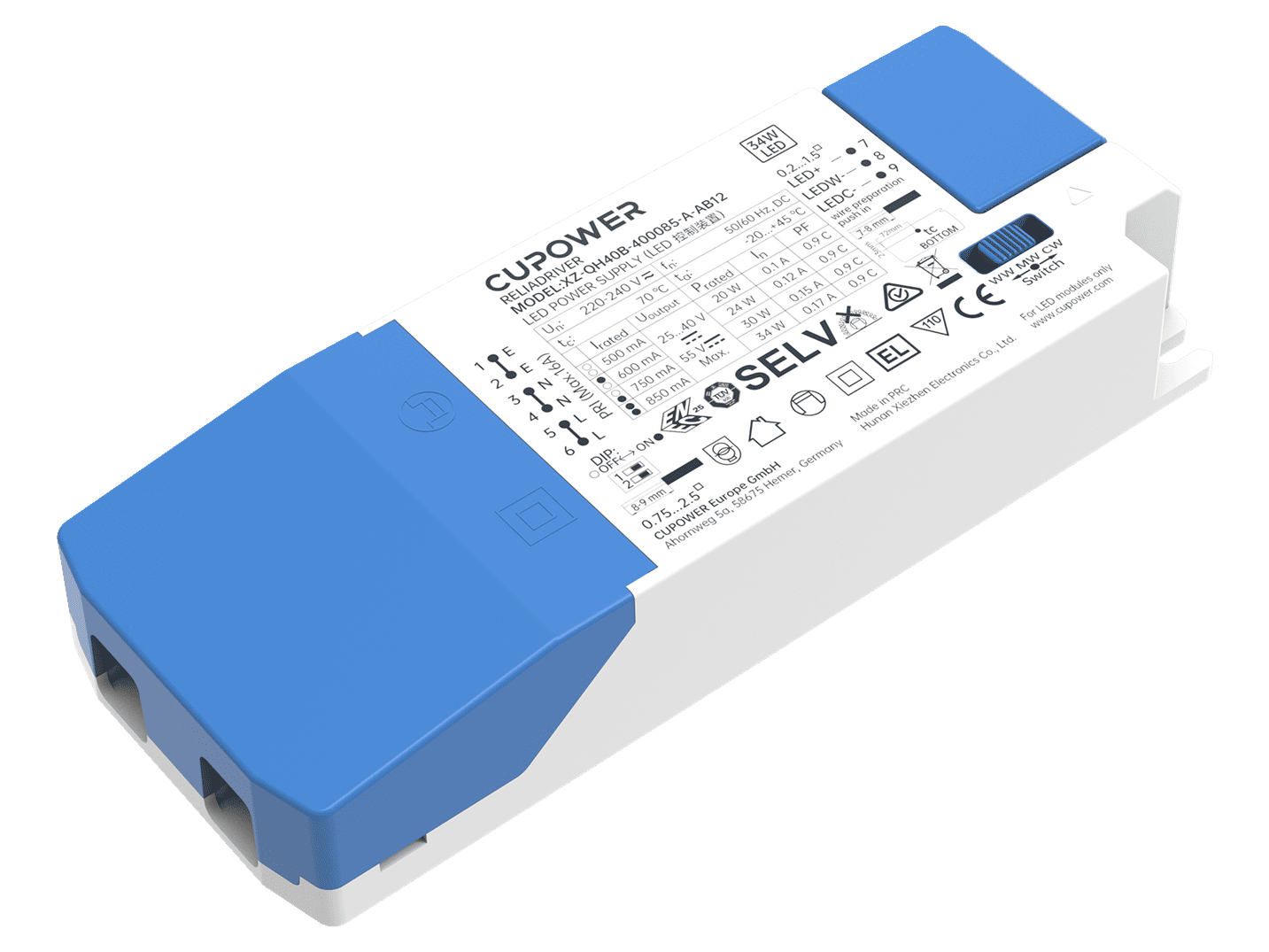

161669 XZ-QH40B-400XXX-A-AB

< Back

L170 x W65 x H30 mm

WT: 0.153 kg

Questions Order a Sample

Product description

SELV power supply
High power factor
Flicker-free
Loop through connection comply with 2.5mm² engineering cable entry specifications
Supports 3-step color temperature selection via sliding switch (CCT selection)
Complies with IEC/EN 60598-1, including cotton cover test requirements (maximum current 850 mA)
Suitable for Class I/II luminaires
Suitable for DC operation

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	198...278 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.3 A @ 230 Vac
THD:	≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 16.2 A、Inrush current Twidth: 294 μs
MCB Quantity B10A:	14
MCB Quantity C10A:	24
MCB Quantity B16A:	23
MCB Quantity C16A:	39
Output current tolerance:	± 5%
Output voltage max:	55 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	<1 at full load @ rated input voltage
Output SVM:	<0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.75 KVac, ＜ 5 mA 60 sec

Operating temperature:	-20…+45°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 70°C: 50,000 hrs; at Tc 60°C: 100,000 hrs @230 Vac
Maximum Tc temperature:	70°C

Pcs./ carton:	57 pcs
Carton size:	353 x 335 x 220 mm
Gross weight:	9.95 kg

Data sheets
Approvals
3D Drawing
Declaration

CE-LVD_XZ_QH40B_400XXX_A_AB
SAA_XZ_QH40B_400XXX_A_AB
Download all

New products

ID ECSCB 200/230/150-1050 NFC OUT

NAPPK PWM5CH-CAS

NALNR54-1400D-NFC-CAS

NALNR54-1400D-010V-NFC

*mandatory information

I would like to receive the CUPOWER Light News and personal information. I consent to the use of my provided personal data for the purpose of sending the newsletter. I acknowledge the information on data processing and the right to withdraw my consent, as outlined in the CUPOWER data protection information.

> More about CUPOWER data protection

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-QH40B-400XXX-A-AB	500...1050 mA	220...240 Vac	25...40 Vdc	89%	± 5%	＞0.9
