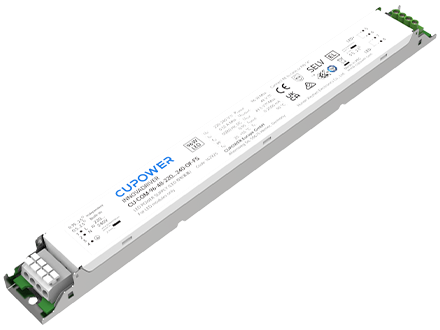

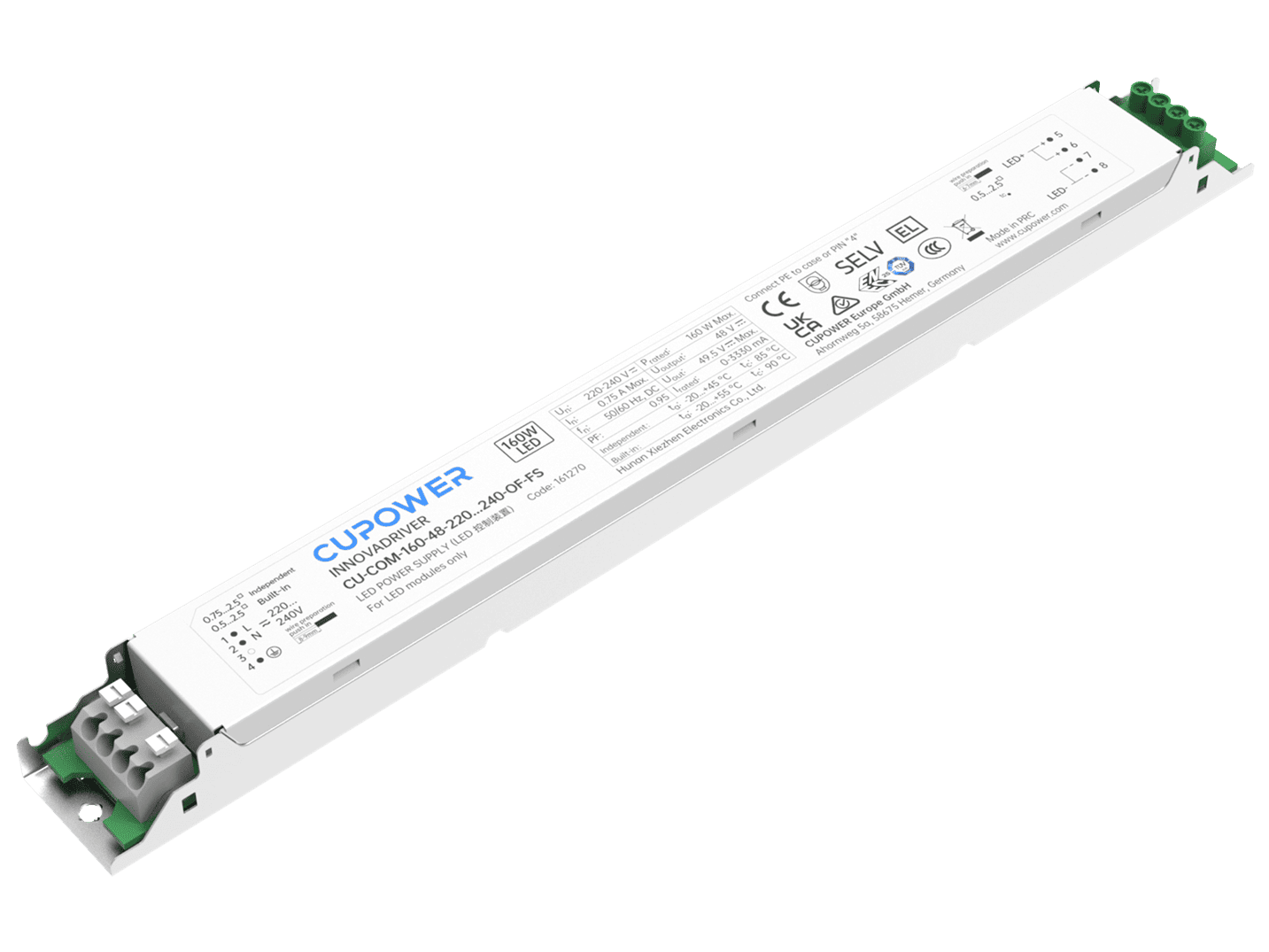

161270 CU-COM-160-48-220...240-OF-FS

< Back

L302 x W30 x H21 mm

WT: 0.3 kg

Questions Order a Sample

Product description

Suitable for parallel output current
Removable cord grips available
Flicker-free
Built-in power factor correction function, high power factor, low THD
With AC power failure detection, meets the hard reset of smart products (optional)

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	50/60 Hz
Rated input current:	0.75 A @ 230 Vac
THD:	≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 29 A, Inrush current Twidth: 680 μs
MCB Quantity B10A:	3
MCB Quantity C10A:	5
MCB Quantity B16A:	4
MCB Quantity C16A:	8
Output current tolerance:	± 5%
Output voltage max:	49.5 Vdc
Ripple:	≤ 5%
Standby power consumption:	0.3
Output PstLM:	<1 at full load @ rated input voltage
Output SVM:	<0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	N/A
Withstand voltage:	I/P-O/P: 3.75 KVac,＜5 mA 60 sec;I/P-FG: 1.5 kVac, < 5 mA 60 sec

Operating temperature:	-20…+55°C
Storage temperature:	-40…+80°C
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 90°C: 50,000 hrs; at Tc 80°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	90°C

Pcs./ carton:	40 pcs
Carton size:	352 x 277 x 185 mm
Gross weight:	12.65 kg

Data sheets
Approvals
3D Drawing
Declaration

3C_CU-COM-160-48-220-240_OF_FS
CE-LVD_CU-COM-160-48-220-240_OF_FS
EMC_CU-COM-160-48-220-240_OF_FS
ENEC_CU-COM-160-48-220-240_OF_FS
RCM_CU-COM-160-48-220-240_OF_FS
SAA_CU-COM-160-48-220-240_OF_FS
Download all

New products

ID ECSCB 200/230/150-1050 NFC OUT

NAPPK PWM5CH-CAS

NALNR54-1400D-NFC-CAS

NALNR54-1400D-010V-NFC

*mandatory information

I would like to receive the CUPOWER Light News and personal information. I consent to the use of my provided personal data for the purpose of sending the newsletter. I acknowledge the information on data processing and the right to withdraw my consent, as outlined in the CUPOWER data protection information.

> More about CUPOWER data protection

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
CU-COM-160-48-220...240-OF-FS	3330 mA	220...240 Vac	48 V	93%	± 5%	＞0.9
