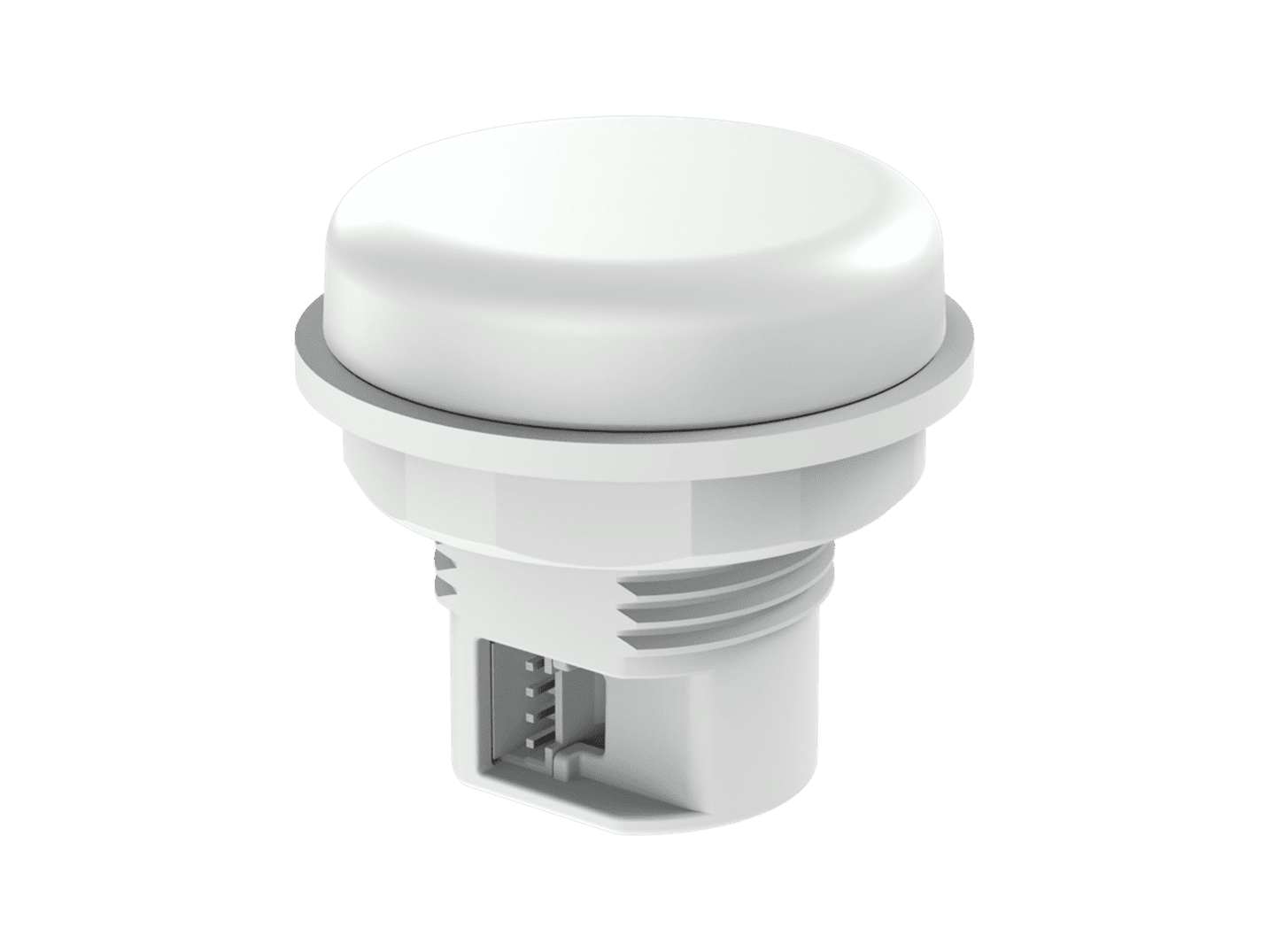

110410 IC-A528-B-DA/0-10V-CW-CS

< Back

Ø33 x H33 mm

WT: 21 g


Questions Order a Sample
Product description
Supports switching between D4i/DALI, 0-10V by changing profile
Supports single or dual-channel 0-10V dimming
Supports 0-10V tunable white
Wireless transmission range up to 100 meters (open air)
Maximum 10 mA static current
Conforms to Zhaga Book 20 standards
Swipe for more
Operating voltage:9.5…22.5 Vdc, 12...24 Vdc
Standby current:

10 mA

Battery type:

N/A

RF transmit power:

+4 dBm @ Normal Mode, +8 dBm @ Long Range Mode

Wireless protocol:Casambi, 2.4 GHz BLE-based Mesh
Wireless range (open field):Up to 100 m
Control output:DALI, 0-10V
Control interface:BLE
Reset / Unpair:

Casambi App

Product nameInput voltagePower supply

Dimensions  (L x W x H)

IC-A528-B-DA/0-10V-CW-CS9.5-24 VDC

DALI BUS PS or D4i or Auxiliary supply

Ø33 x 33 mm


Operating temperature:-20...+60℃
Storage temperature:-20...+70℃
Working humidity:10%...+90%
Store humidity:5%...95%
Operating environment:N/A
Maximum Tc temperature:N/A
Pcs./ carton:50 pcs
Carton size:222 × 222 × 163 mm
Gross weight:2 kg


  • Download
