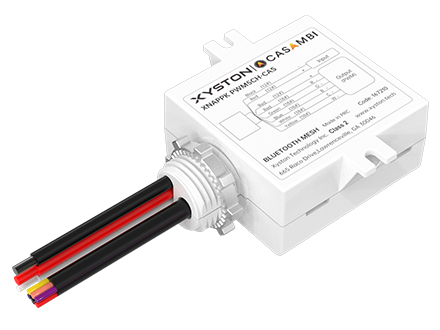

CV 5 Channel Dimmer

Product description

12 V...48 V input/output range for flexibility in various LED applications
5-channel PWM control for precise dimming and customization
Supports up to 9 A per channel for high-performance LED management
Up to 330 W per channel, ensuring powerful and efficient operation
Casambi Ready for seamless integration with smart lighting systems
Sensor input for automated, responsive lighting control
Learn more about Casambi

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)	Data sheet (download)
167210	NAPPK PWM5CH-CAS	N/A	220-240VAC	12-48V	6000mA	N/A	69.9 x 67.9 x 27 mm

CS = Casambi

Specifications
Downloads
Technical features

Power range:	N/A
Adjustable output current:	N/A
Dimming interface:	N/A
Dimming range:	N/A
Flicker-free:	N/A
Input votage shock:	N/A
Operating temperature range:	-20...+50°C
Power factor:	N/A
Surge protection:	N/A
Start up time:	N/A
Lifetime:	50,000 h
Type of Protection:	IP20
Warranty:	5 year

Data sheets
Approvals
3D Drawing
Declaration

167210_NAPPK_PWM5CH_CAS
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

3D_CV _5_Channel_Dimmer
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

Supports multiple protocols and is compatible with multiple lighting fixtures

The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.

NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.

Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).

Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.

Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.

D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
