ON/OFF NFC > ID series

Product description

Constant current drivers with wide operating windows
Easy and fast wireless luminaire programming via NFC
Supports NFC readers for precise control of multiple functions
Flicker-free

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)
164141	ID ECSCB 200/230/150-1050 NFC OUT	200 W	220-240VAC 220-240VDC	100-290V	150-1050mA	94%	170 x 100 x 40 mm
163670	ID ECSCB 165/230/150-1050 NFC OUT	165 W	220-240VAC 220-240VDC	100-290V	150-1050mA	94%	150 x 85 x 37.5 mm
164134	ID ECSCB 110/230/150-1050 NFC OUT	110 W	220-240VAC 220-240VDC	65-230V	150-1050mA	93%	150 x 85 x 37.5 mm
163687	ID ECSCB 75/230/150-1050 NFC OUT	75 W	220-240VAC 220-240VDC	35-150V	150-1050mA	91.5%	133 x 77 x 31 mm

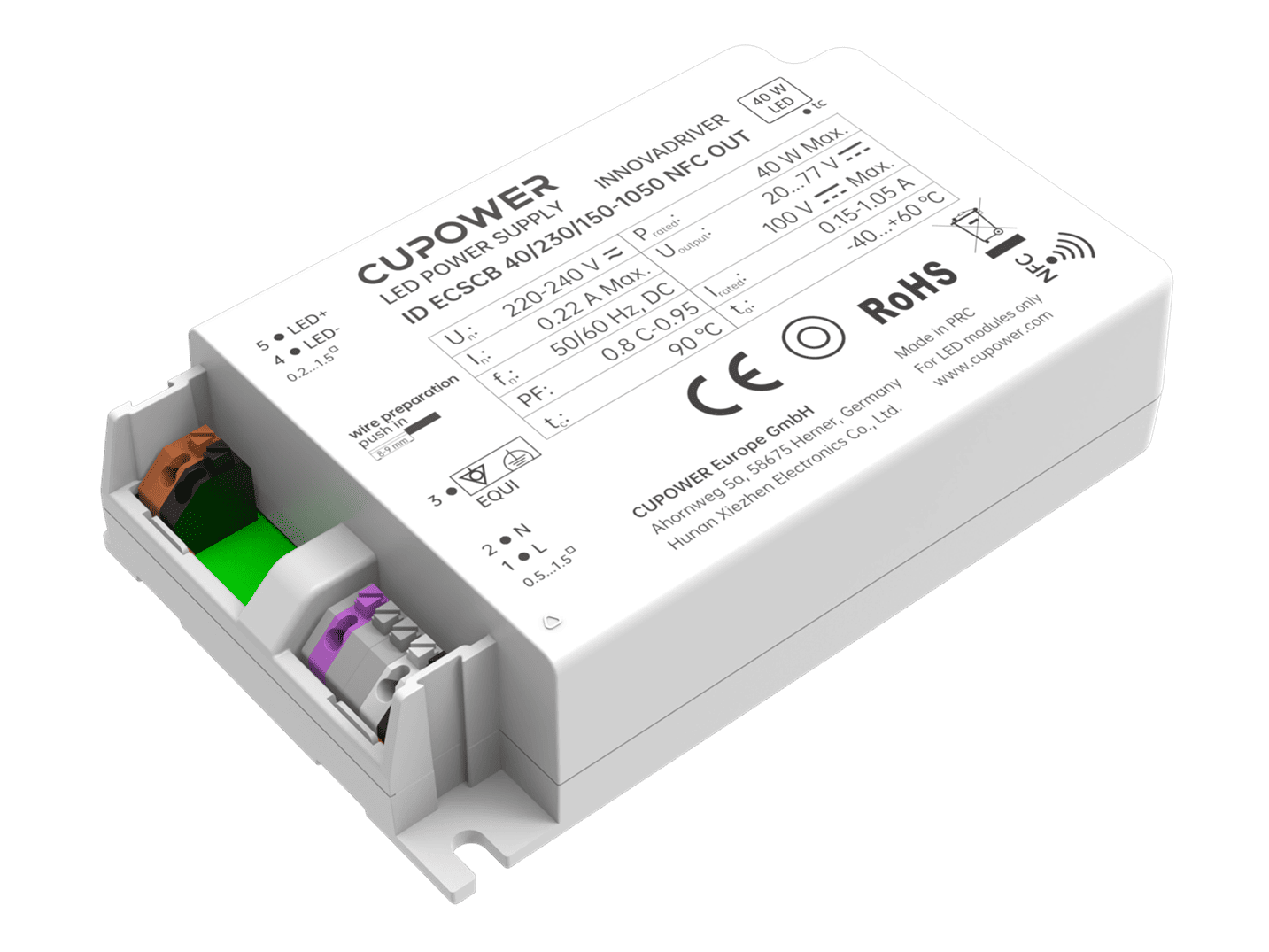

164127	ID ECSCB 40/230/150-1050 NFC OUT	40 W	220-240VAC 220-240VDC	20-77V	150-1050mA	90%	123 x 77 x 31 mm
164110	ID ECSCB 24/230/150-1050 NFC OUT	24 W	220-240VAC 220-240VDC	8-48V	150-1050mA	88.5%	123 x 77 x 31 mm
164103	ID ECSCB 14/230/100-550 NFC OUT	14 W	220-240VAC 220-240VDC	12-42V	100-550mA	87%	122.8 x 76.3 x 31 mm

Specifications
Downloads
Technical features

Power range:	14-200 W
Adjustable output current:	NFC
Dimming interface:	/
Dimming range:	/
Flicker-free:	PstLM≤1，SVM≤0.4
Input votage shock:	350 VAC, 1 h
Operating temperature range:	Ta -40…+60°C
Power factor:	＞ 0.9
Surge protection:	L-N: 6 kV, L/N-GND: 10 kV
Start up time:	＜ 700 ms @ 230 V
Lifetime:	50,000 h
Type of Protection:	IP20
Warranty:	5 year

Data sheets
Approvals
3D Drawing
Declaration

164103_ID_ECSCB_14_230_100_550_NFC_OUT
164110_ID_ECSCB_24_230_150-1050_NFC_OUT
164127_ID_ECSCB_40_230_150-1050_NFC_OUT
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

3D_ON/OFF_NFC_ID_series_75W
3D_ON/OFF_NFC_ID_series_110W_165W
Download all

CE_Declaration_of_Conformity_ON/OFF_NFC_ID_series
Download all

Supports multiple protocols and is compatible with multiple lighting fixtures

The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.

NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.

Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).

Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.

Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.

D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
