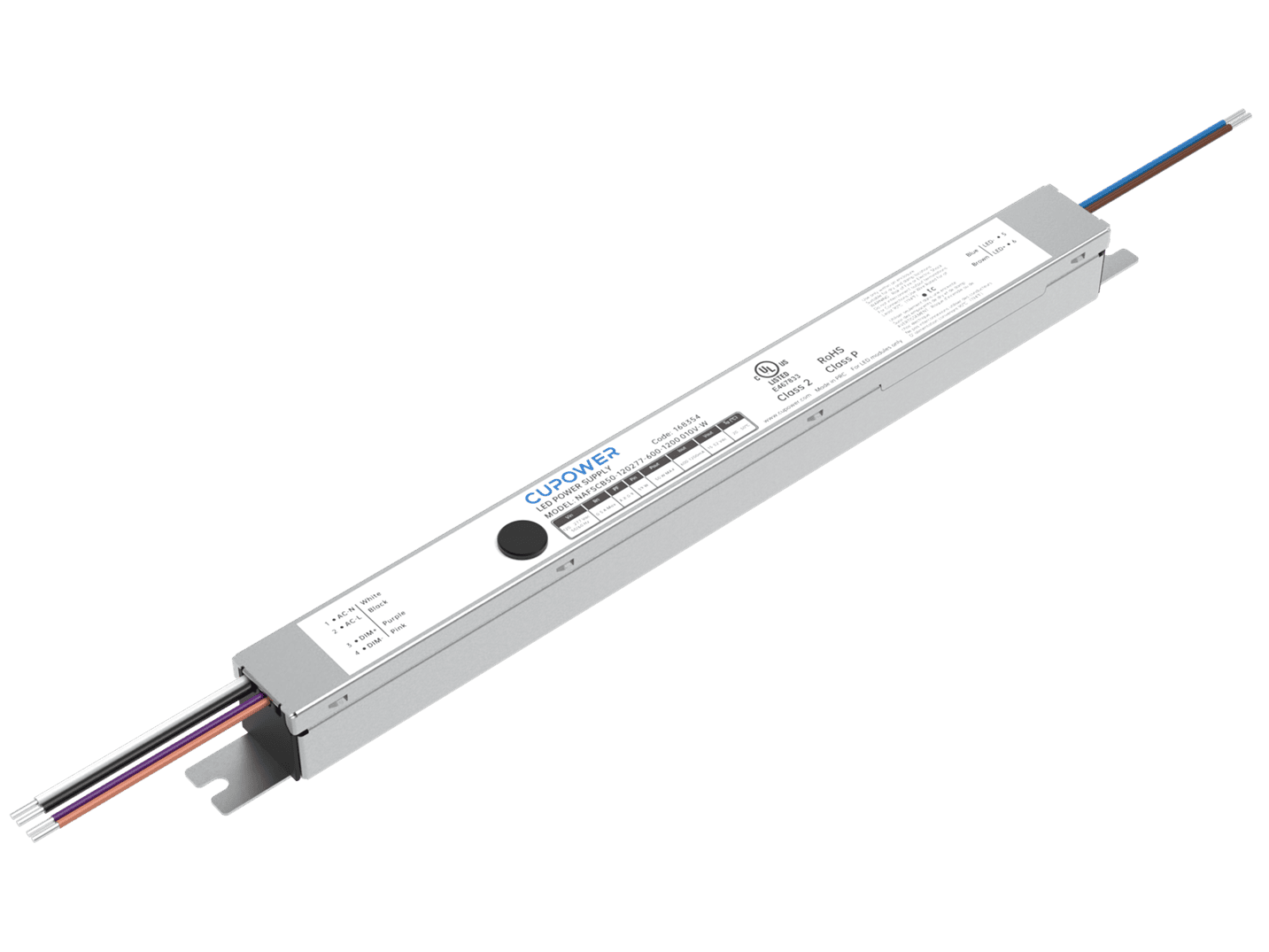

168354 NAFSCB50-120277-600-1200 010V-W

< Back

L8.09 x W0.72 x H0.72 in

WT: 0.135 kg

Product description

Rated input voltape range:	120…277 Vac; performance range
Max.input voltage range:	108...305 Vac; operational safety range
Rated frequency range:	50/60 Hz
Performance/Operational safety:	47...63 Hz
Rated input current:	0.5 A @ 120 Vac
THD:	≤ 15%
Inrush current [Aµs]:	17.8 A 128 μs
MCB Quantity B10A:	16
MCB Quantity C10A:	16
MCB Quantity B16A:	27
MCB Quantity C16A:	27
Output current tolerance:	± 5% at rated input voltage performance range
Output voltage max.:	≤ 60 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	0...10 V
Dimming range:	0.1%...100%
Adjustable output current:	N/A
Withstand voltage:	I/p-O/p: 1.6 kVac, < 5 mA 60 sec, I/p-earth: 1.6 kVac, < 5 mA 60 sec, O/p-earth: 0.5 kVac, < 5 mA 60 sec

Operating temperature:	-20… +50℃
Storage temperature:	-25… +85℃
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 75℃: 50,000 hrs @ performance range (0.2% / 1,000 h failure rate)
Maximum Tc temperature:	90℃
