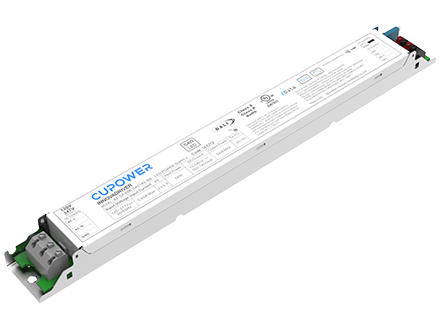

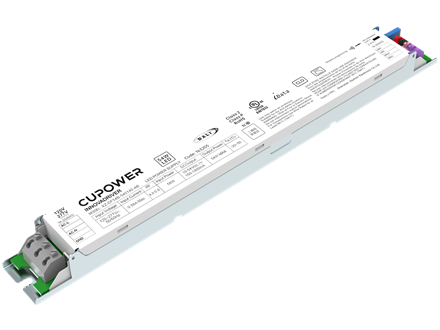

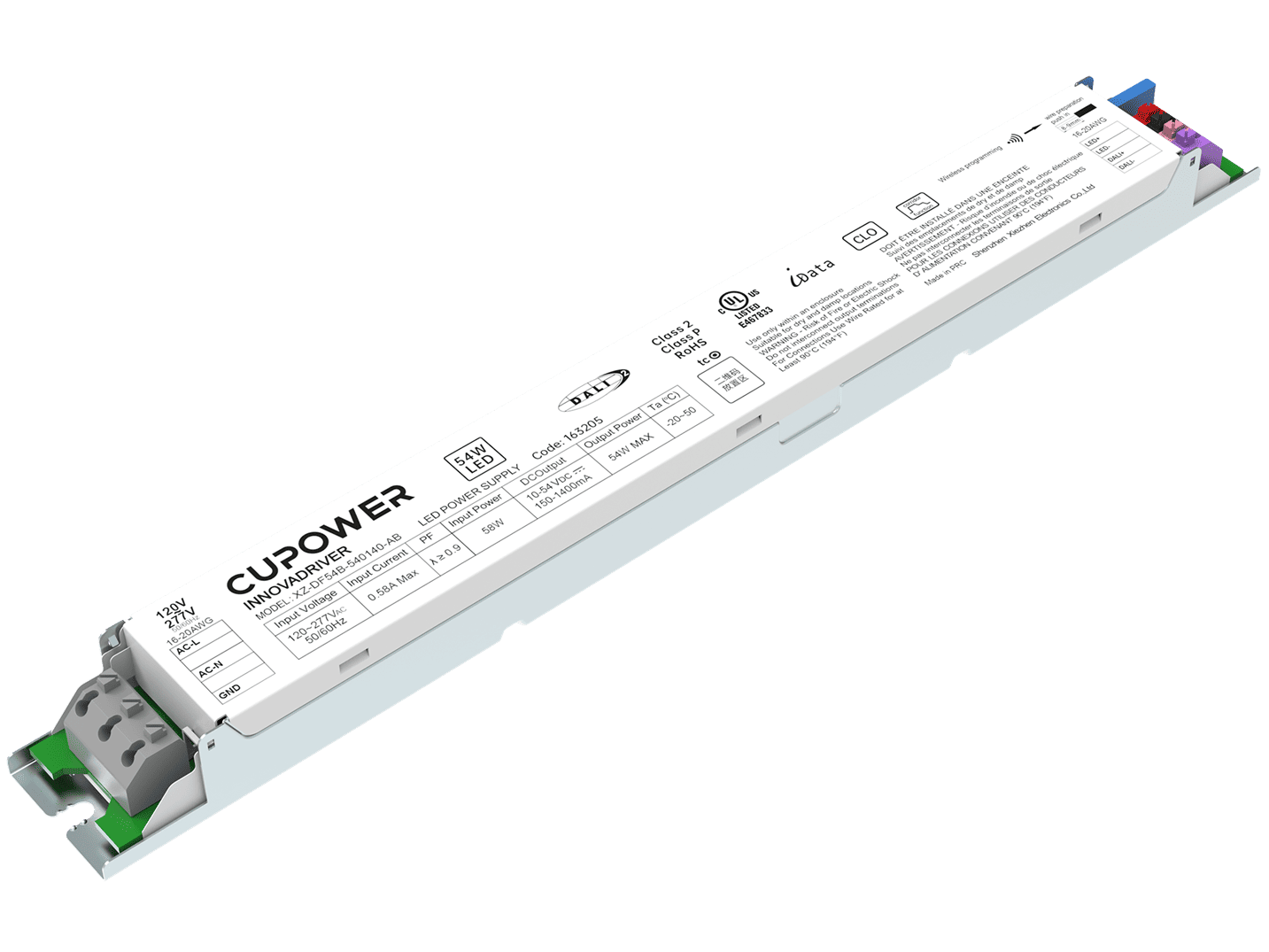

163205 XZ-DF54B-540140-AB (NFC)

< Back

L278 x W30 x H21 mm

WT: 0.205 kg

Product description
  • Constant current drivers with wide operating windows
  • Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
  • Supports NFC readers for precise control of multiple functions
  • Smooth, flicker free dimming with dimming range 1-100% (amplitude dimming)
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:120...277 Vac
Max.input voltage range:108...305 Vac
Safety frequency range:50/60 Hz
Rated input current:0.58 A @ 120 Vac
THD:≤ 20%
Output current tolerance:± 5%
Output voltage max.:60 Vdc
Ripple:≤ 5%
Standby power consumption:< 0.5 W @ 120 Vac
Output PstLM:<1 at full load @ rated input voltage
Output SVM:<0.4 at full load @ rated input voltage
Dimming mode:DALI2
Dimming range:1%...100%
Adjustable output current:NFC
Withstand voltage:I/P-FG:1.8KVac,<5mA 60s;I/P-DA:1.8KVac,<5mA 60s;O/P-FG:1.8KVac,<5mA 60s;O/P-DA:1.8KVac,<5mA 60s;DA-FG:0.6KVac,<5mA 60S
SELV DALI DT6 > DF series
