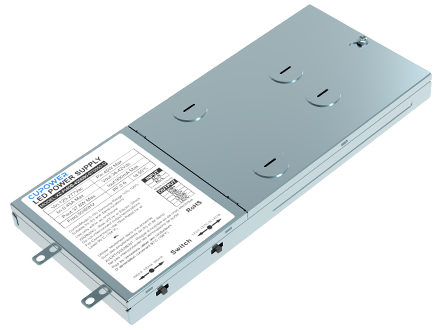

162567 XZ-PD35B-420080-B

< Back

L260 x W105 x H22 mm

WT: N/A

Questions Order a Sample
Product description
  • Input voltage coverage of 120-277 V/120-347 V
  • Power and color temperature, low flicker, Flicker-free, multiple combinations available
  • Various housing combinations: standard, large wiring space, ultra-large wiring space optional
  • Input interface: wire, terminal optional
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:120 Vac
Max.input voltage range:108...132 Vac
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:50/60 Hz
Rated input current:
THD:≤ 20%
Inrush current [Aµs]:N/A
MCB Quantity B10A:N/A
MCB Quantity C10A:N/A
MCB Quantity C10A:N/A
MCB Quantity B16A:N/A
Output current tolerance:± 5%
Output voltage max:
Ripple:≤ 30%
Standby power consumption:
Output PstLM:
Output SVM:
Dimming mode:triac
Dimming range:7%...100%
Adjustable output current:Fixed
Withstand voltage:I/P-O/P:1.8KVac,<5mA 60 sec;I/P-FG:1.8KVac,<5mA 60 sec;I/P-DIM:1.8KVac,<5mA 60sec;O/P-FG:0.6KVac,<5mA 60sec;DIM-FG:0.6KVac,<5mA 60sec
