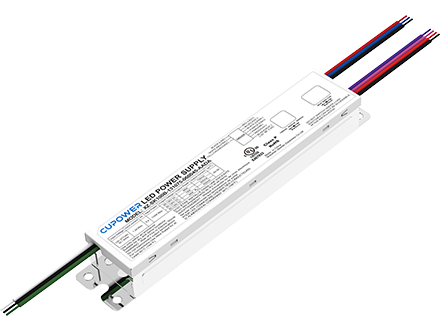

164431 XZ-SK100B-130XXX-VVVWWW-TTTT
< BackL242 x W44.5 x H31 mm
WT: 0.581 kg
Product description
- Input voltage coverage of 120-277 V/120-347 V
- SELV 0/1-10 V dimming solution
- 12 V/24 V auxiliary power supply optional, expandable for various sensors and controllers
- Power and color temperature, low flicker, flicker-free, multiple combinations available
- High surge protection L-N: 4 kV, L/N-GND: 4 kV
- General Data
- Electrical Operating Data
- Environmental Data
- Packaging Information
- Downloads
| Rated input voltape range: | 120...347 Vac |
|---|---|
| Max.input voltage range: | 108...380 Vac |
| Safety frequency range: | 50/60 Hz |
| Rated input current: | 1.2 A @ 230 Vac |
| THD: | ≤ 20% |
| Output current tolerance: | ± 5% |
| Output voltage max: | 160 Vdc |
| Ripple: | ≤ 5% |
| Standby power consumption: | |
| Output PstLM: | <1 at full load @ rated input voltage |
| Output SVM: | <0.4 at full load @ rated input voltage |
| Dimming mode: | 0-10 Vdc |
| Dimming range: | 5%...100% |
| Adjustable output current: | DIP |
| Withstand voltage: | I/p-FG: 1.5 KVac, < 5 mA 60 S; O/p-DIM: 1.8 KVac, < 5 mA 60 S I/p-DIM: 1.8 KVac, < 5 mA 60 S; DIM-FG: 0.6 KVac, < 5 mA 60 S O/p-FG: 1.5 KVac, < 5 mA 60 S |
