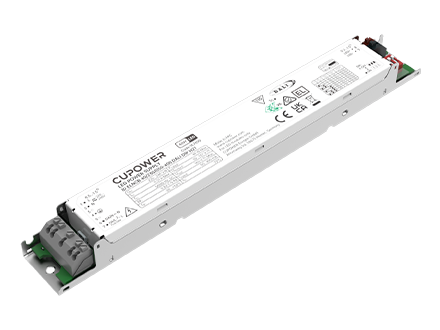

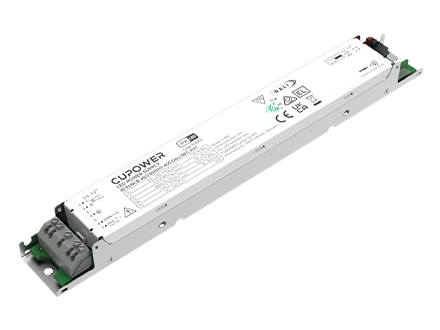

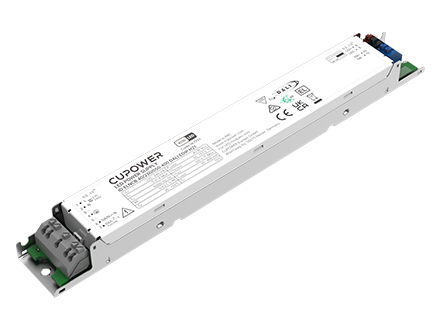

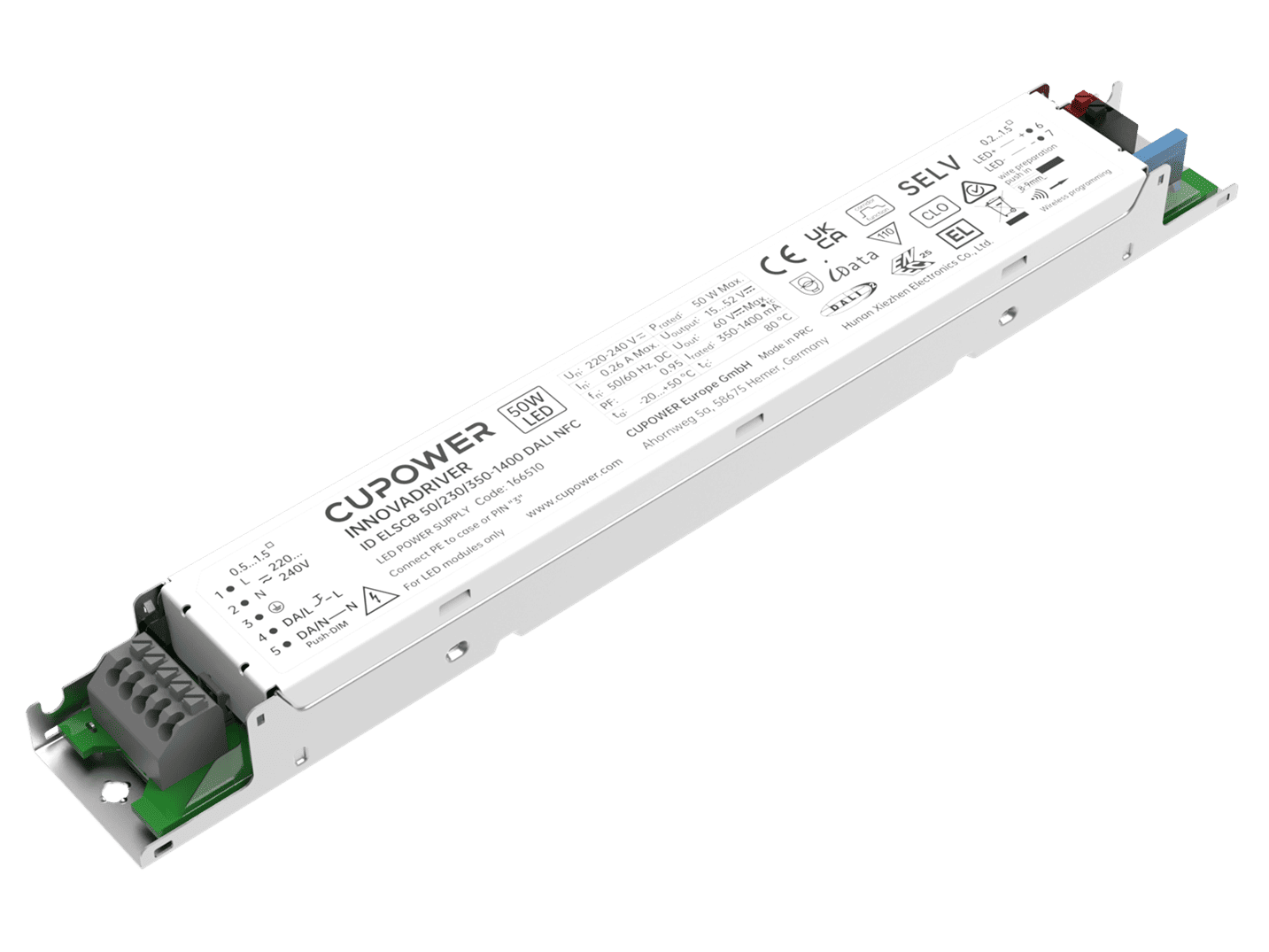

166510 ID ELSCB 50/230/350-1400 DALI NFC

< Back

L238 x W30 x H21 mm

WT: 0.17 kg

Product description

Constant current drivers with wide operating windows
Supports DALI-2 and push DIM
Equipped with i-Data: enabling data managament according to DALI parts 251, 252 and 253
(luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Smooth dimming with dimming range 1-100% (amplitude dimming)
Standby power consumption ≤ 0.3 W, meets ErP energy efficiency certification
Packing unit programming: configure a large number of drivers in parallel via NFC

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176…276 Vdc; operational safety range
Safety frequency range:	0/50/60 Hz
Rated input current:	0.26 A @ 230 Vac & 0.26 A @ 230 Vdc
THD:	≤ 10%
Inrush current:	24.4 A / 242μs
MCB Quantity B10A:	17
MCB Quantity C10A:	29
MCB Quantity B16A:	28
MCB Quantity C16A:	47
Output current tolerance:	± 5% at rated input voltage range
Output voltage max.:	≤ 60 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	˂ 0.3 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2, push dimming
Dimming range:	1%...100% （3.5...1400 mA)
Adjustable output current:	NFC
Withstand voltage:	l/p-FG: 1.5 kVac, < 5 mA 60 s; I/p-DA: 1.5 kVac, < 5 mA 60 s l/p-O/p: 3.75 kVac, < 5 mA 60 s, O/p-DA: 1.5 kVac, < 5 mA 60 s O/p-FG: 1.5 kVac, < 5 mA 60 s, DA-FG: 1.5 kVac, < 5 mA 60 s

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELSCB 50/230/350-1400 DALI NFC

350...1400 mA

220...240 Vac

220...240 Vdc

15...54 V

90%

± 5%

0.9 (Output Power > 20 W)

Operating temperature:	-20…+50℃
Storage temperature:	-25…+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 75℃: 50,000 hrs; at Tc 65℃: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	80℃
