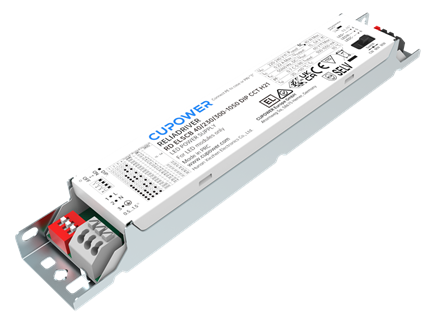

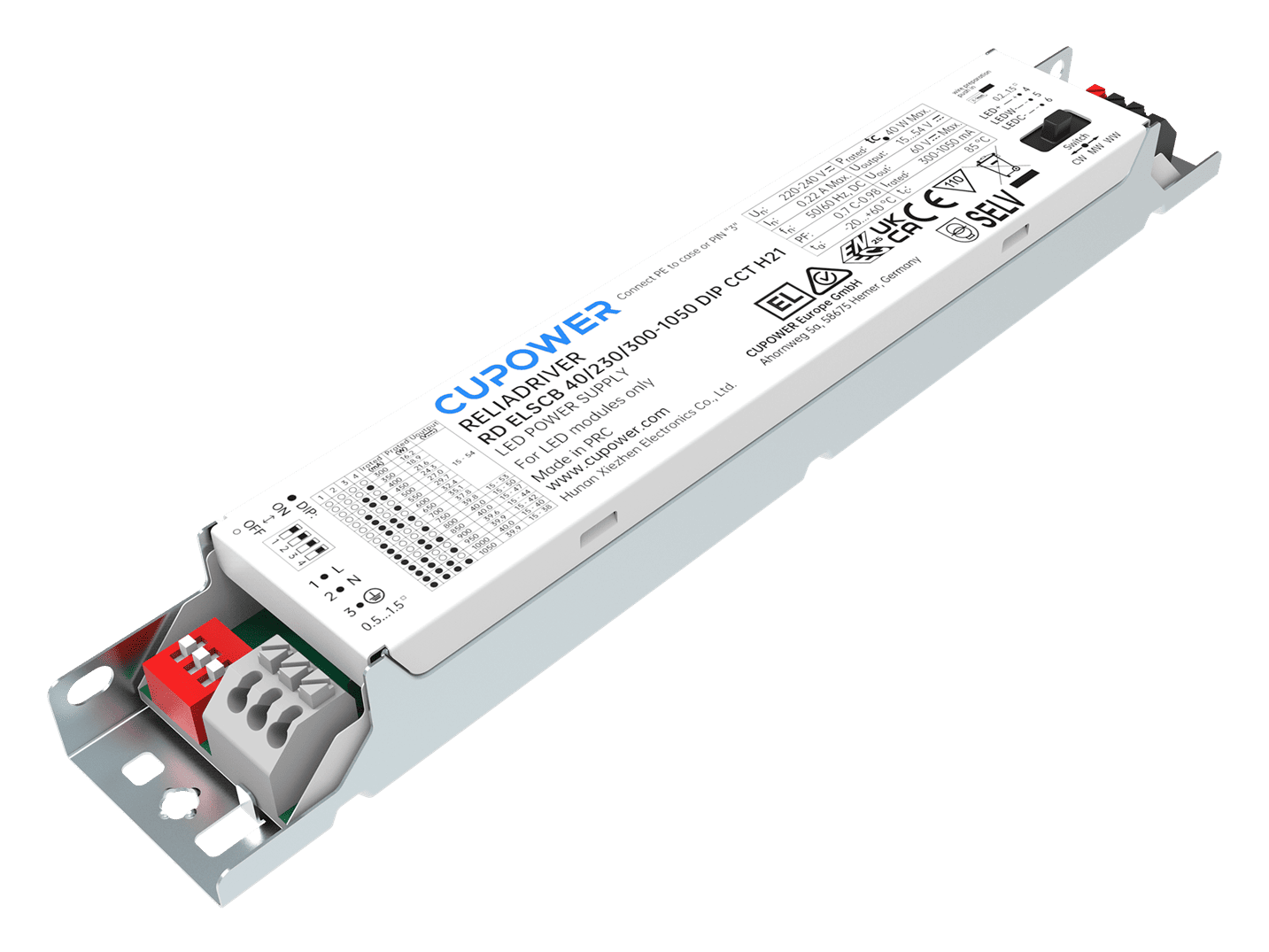

110328 RD ELSCB 40/230/300-1050 DIP CCT H21

< Back

L193 x W30 x H21 mm

WT: 0.135 kg

Questions Order a Sample
Product description
Built-in isolated adjustable power LED driver
Current adjustment via DlP
Flicker free LED driver
Output current: 300 mA, 350 mA, 400 mA, 450 mA , 500 mA, 550mA, 600mA, 650mA, 700mA,750mA, 800mA, 850mA, 900mA,950mA, 1000mA, 1050mA
Max. output power 40 W
Nominal life-time up to 50,000 h
Adjustable color temperature function
For luminaires with protection class l
DC emergency
5-year warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:198…280 Vdc
Safety frequency range:N/A
Rated input current:0.22 A @ 230 Vac & 0.22 A @ 230 Vdc
THD:< 10%
Inrush current [Aµs]:26.8 A, 120 µs
MCB Quantity B10A:33
MCB Quantity C10A:40
MCB Quantity B16A:53
MCB Quantity C16A:64
Output current tolerance:± 5% at rated input voltage range
Output voltage max:≤ 60 Vdc
Ripple:5% (ripple = peak/average total 100 Hz)
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP switch
Withstand voltage:

l/p-O/p: 3 kVac, < 5 mA 60 sec, l/p-FG: 1.5 kVac, < 5 mA 60 sec, O/p-FG: 1.5 kVac, < 5 mA 60 sec

Product nameOutput
                 current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
RD ELSCB 40/230/300-1050 DIP CCT H21300...1050 mA

220...240 Vac

220...240 Vdc

15...54 V91%± 5%> 0.95


Operating temperature:-20…+60°C
Storage temperature:-40…+80°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 85°C: 30,000 hrs @ 230 Vac; at Tc 75°C: 50,000 hrs;
Maximum Tc temperature:85°C
Pcs./ carton:60 pcs
Carton size:317 x 203 x 160 mm
Gross weight:8.8 kg
