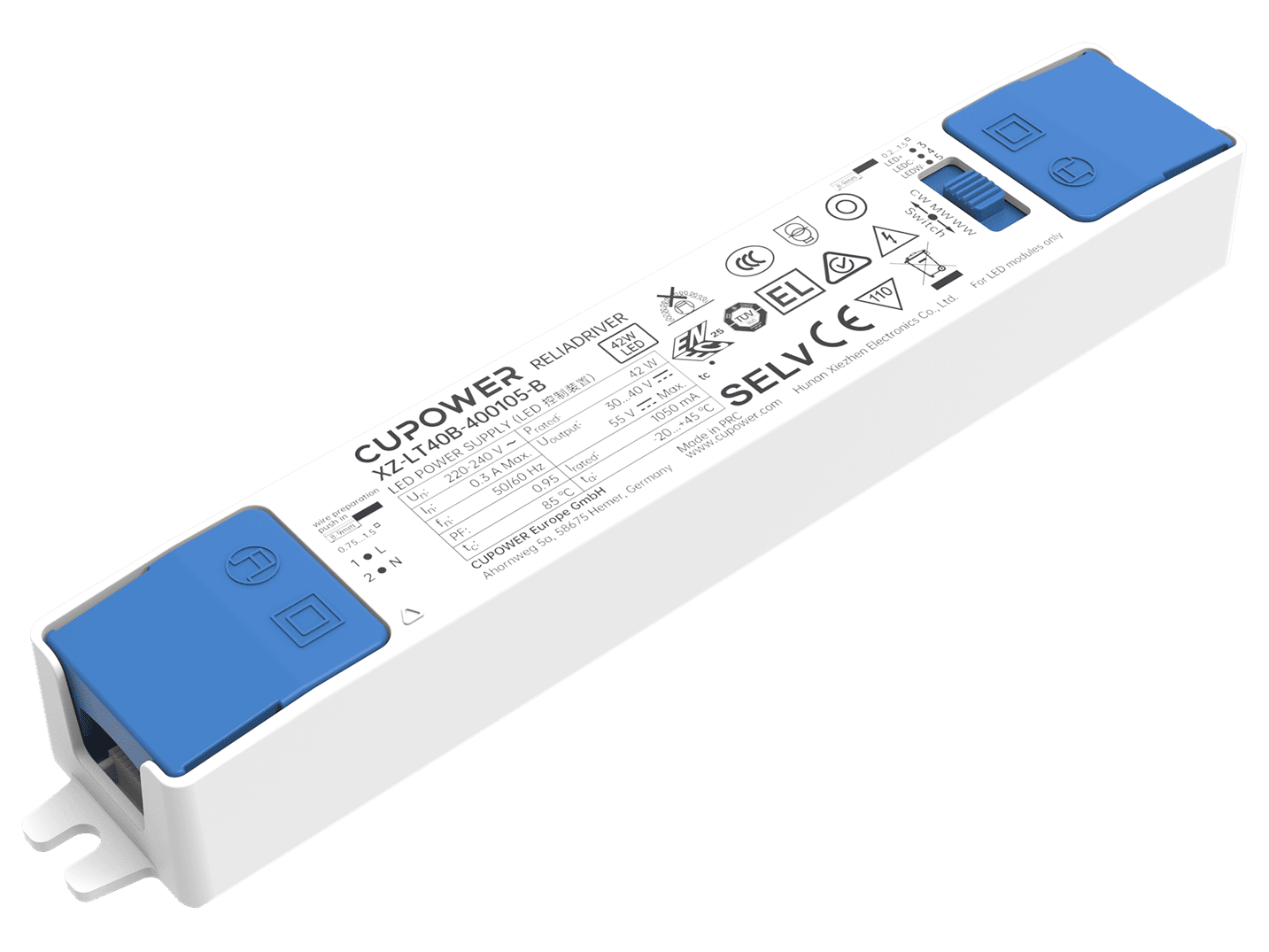

163069 XZ-LT40B-400XXX-B

< Back

L176 x W30 x H21 mm

WT: 0.072 kg

Questions Order a Sample
Product description
  • High power factor
  • Flicker-free
  • Supports 3-step color temperature selection via sliding switch
  • High efficiency of 92%
  • Suitable for Class I/II luminaires
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:

220…240 Vac

Max.input voltage range:

198...264 Vac

Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:

50/60 Hz

Rated input current:

0.23 A @ 230 Vac

THD:

10% at 38 Vdc load @ rated input voltage range

Inrush current [Aµs]:

Inrush current lpeak: 37.4A、Inrush current Twidth: 105 μs

MCB Quantity B10A:

17

MCB Quantity C10A:

28

MCB Quantity B16A:27
MCB Quantity C16A:45
Output current tolerance:

± 5% at rated input voltage range

Output voltage max:

55 Vdc

Ripple:

5% (ripple = peak/average total 100 Hz)

Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:

≤ 0.4 at full load @ rated input voltage

Dimming mode:N/A
Dimming range:N/A
Adjustable output current:N/A
Withstand voltage:

l/p-O/p: 3.75 kVac, < 5 mA 60 sec
