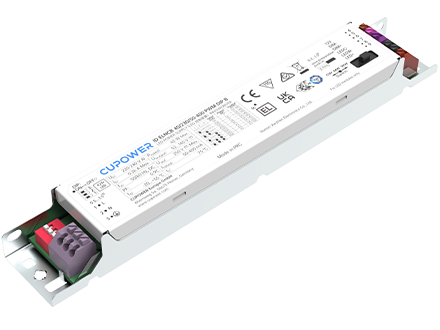

163120 ID ELNCB 20/230/50-400 0-10V PWM DIP X

< Back

L193 x W30 x H21 mm

WT: 0.11 kg

Questions Order a Sample
Product description
  • High power factor
  • DIP switch, multi-current setting
  • Supports 3-step color temperature selection via sliding switch
  • 12V auxiliary power supply optional, expandable for various sensors and controllers
  • Smooth dimming with dimming range 1-100% (amplitude dimming)
  • Standby power consumption＜0.5W, meets ErP energy efficiency certification
  • Electrical Operating Data
  • Environmental Data
  • Packaging Information
  • Downloads
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.2 A @ 230 Vac
THD:≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 22 A; Inrush current Twidth: 140 μs
MCB Quantity B10A:21
MCB Quantity C10A:35
MCB Quantity B16A:34
MCB Quantity C16A:57
Output current tolerance:

50-100-150-200-250mA ± 15 mA

300-350-400mA ± 5% at rated input voltage range

Output voltage max:160 Vdc
Ripple:≤ 5%
Standby power consumption:<0.5 W
Output PstLM:< 1 at full load @ rated input voltage
Output SVM:< 0.4 at full load @ rated input voltage
Dimming mode:0-10V / PWM
Dimming range:1％...100％
Adjustable output current:DIP
Withstand voltage:

I/p-FG:1.5kVac,<5mA 60 sec; DIM-FG:1.5kVac,<5mA 60 sec

I/p-DIM:1.5kVac,<5mA 60 sec
