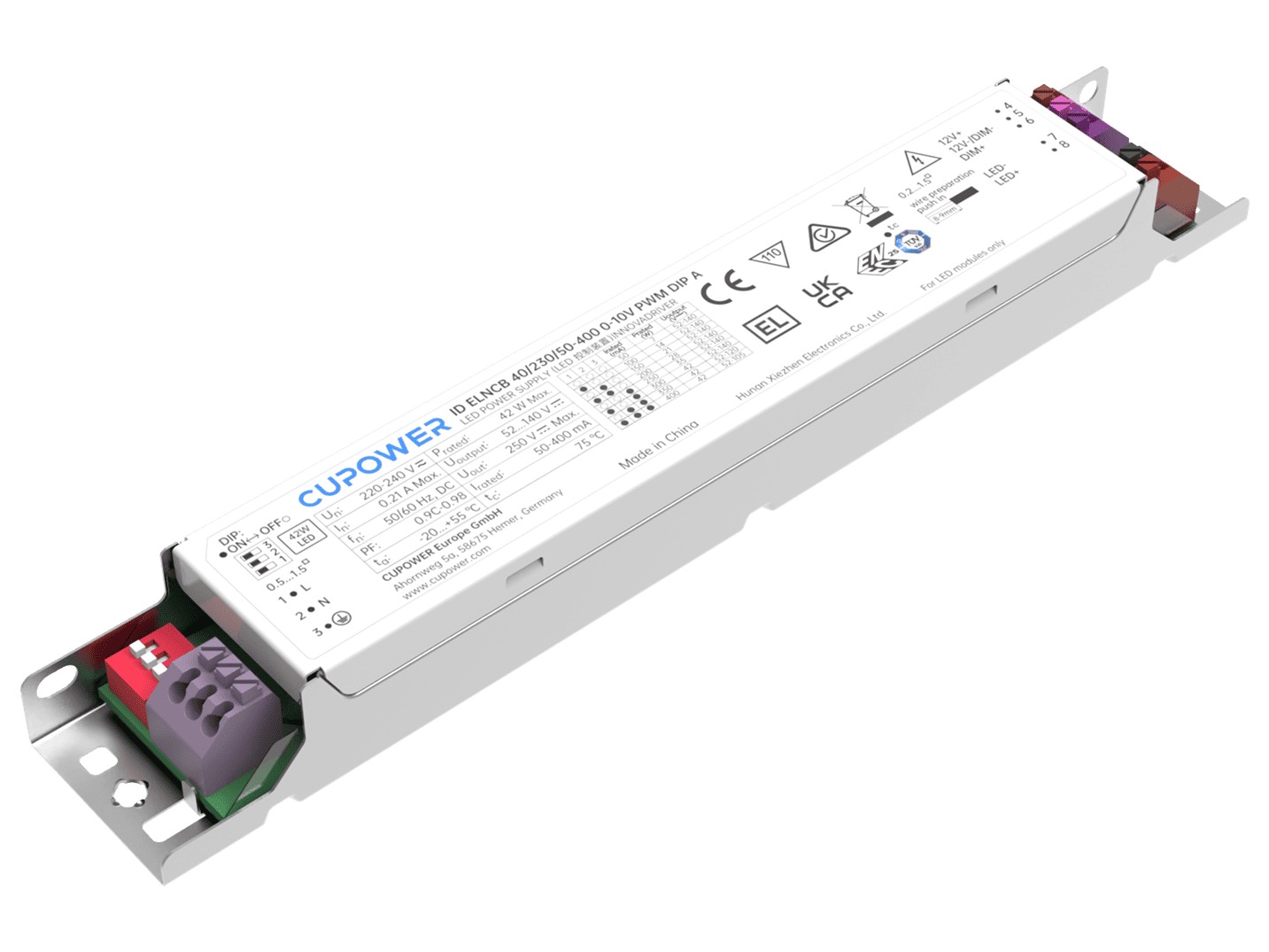

163144 ID ELNCB 40/230/50-400 0-10V PWM DIP X

< Back

L193 x W30 x H21 mm

WT: 0.114 kg

Questions Order a Sample
Product description
• High power factor
• DIP switch, multi-current setting
• Supports 3-step color temperature selection via sliding switch
• 12V auxiliary power supply optional, expandable for various sensors and controllers
• Smooth dimming with dimming range 1-100% (amplitude dimming)
• Standby power consumption＜0.5W, meets ErP energy efficiency certification
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:198...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.26 A @ 230 Vac
THD:≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 24 A; Inrush current Twidth: 142 μs
MCB Quantity B10A:19
MCB Quantity C10A:32
MCB Quantity B16A:31
MCB Quantity C16A:52
Output current tolerance:

50-100-150-200-250mA± 15 mA

300-350-400mA ± 5% at rated input voltage range

Output voltage max:250 Vdc
Ripple:≤ 5%
Standby power consumption:<0.5 W
Output PstLM:< 1 at full load @ rated input voltage
Output SVM:< 0.4 at full load @ rated input voltage
Dimming mode:0-10V / PWM
Dimming range:1％...100％
Adjustable output current:DIP
Withstand voltage:

I/p-FG: 1.5 kVac, < 5 mA 60 sec; DIM-FG: 1.5 kVac, < 5 mA 60 sec

I/p-DIM: 1.5 kVac, < 5 mA 60 sec

Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID ELNCB 40/230/50-400 0-10V PWM DIP X50...400 mA

220...240 Vac

220...240 Vdc

52...140 V91%± 5%> 0.9



Operating temperature:Ta-20…+55°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%-95%
Driver lifetime:at Tc < 70°C: 50,000 hrs; @230 Vac
Maximum Tc temperature:75°C
Pcs./ carton:60 pcs
Carton size:317 x 203 x 160 mm
Gross weight:7.5 kg
