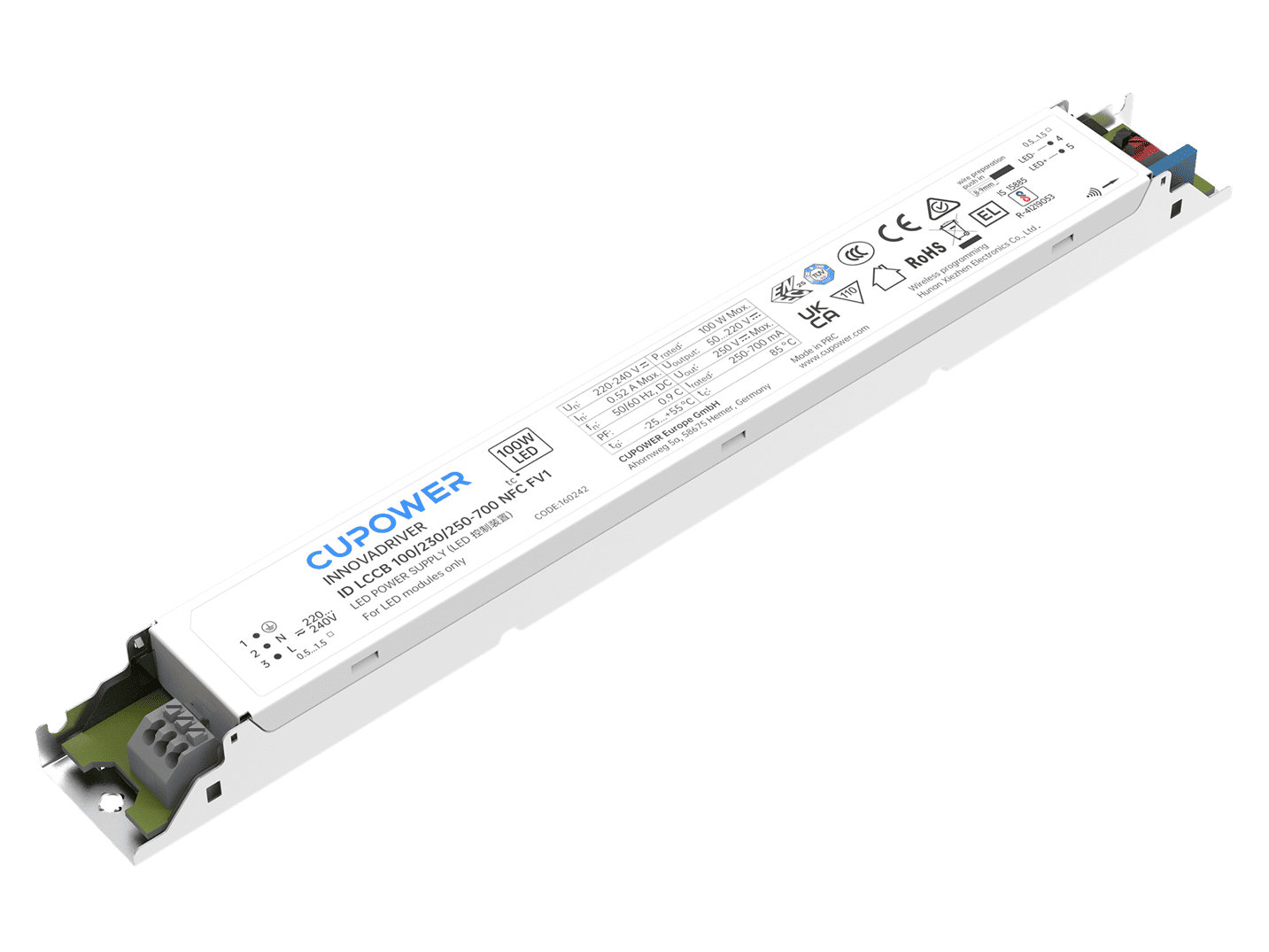

160242 ID LCCB 100/230/250-700 NFC FV1

< Back

L278 x W30 x H21 mm

WT: 0.196 kg

Questions Order a Sample

Product description

Constant current driver with wide operating windows
High power factor
Flicker-free
Supports NFC readers for precise setting and control of multiple functions

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/ 50 / 60 Hz
Rated input current:	0.52 A @ 230 Vac
THD:	≤ 20 % at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 25.4 A、Inrush current Twidth:148 μs
MCB Quantity B10A:	17
MCB Quantity C10A:	17
MCB Quantity B16A:	27
MCB Quantity C16A:	27
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	250 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	/
Dimming range:	/
Adjustable output current:	NFC control adjusts the current; 250...700 mA
Withstand voltage:	I/P-FG: 1.5 kVac, < 5 mA 60 sec

Operating temperature:	-25…+55°C
Storage temperature:	-40…+80°C
Working humidity:	10%…90%
Store humidity:	5%…90%
Driver lifetime:	at tc 85°C: 50,000 hrs; at tc 75°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	85°C

Pcs./ carton:	56 pcs
Carton size:	375 x 325 x 185 mm
Gross weight:	11.5 kg

Data sheets
Approvals
3D Drawing
Declaration

3C_ID_LCCB_100_230_250-700_NFC_FV1
BIS_ID_LCCB_100_230_250-700_NFC_FV1
Download all
