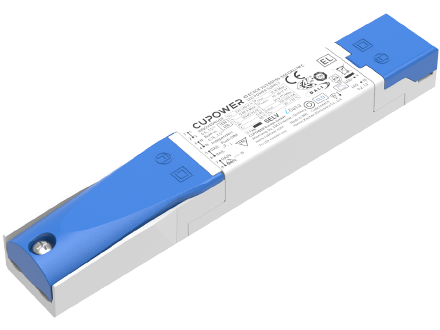

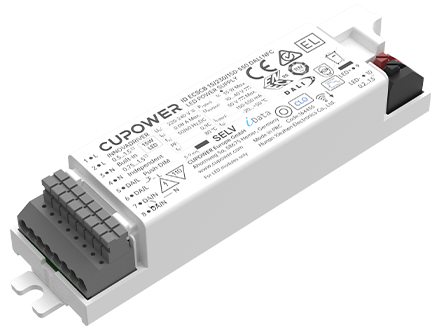

164455 ID ECSCB 15/230/150-550 DALI NFC

< Back

L112 x W29 x H21 mm

WT: 0.059 kg

Product description

Constant current driver with wide operating windows
Supports DALI-2 and push DIM
Supports NFC readers for precise setting and control of multiple functions
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
The DC emergency mode adjusts the current to 15% by default (adjustable)
Smooth dimming with dimming range 1-100% (amplitude dimming)
Loop through connection comply with 2.5mm² engineering cable entry specifications
Standby power consumption ≤ 0.3 W, meets ErP energy efficiency certification
Packing unit programming: configure a large number of drivers in parallel via NFC

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.08 A @ 230 Vac & 0.08 A @ 230 Vdc
THD:	≤ 20%
Inrush current:	155 μs
MCB Quantity B10A:	72
MCB Quantity C10A:	106
MCB Quantity B16A:	115
MCB Quantity C16A:	170
Output current tolerance:	± 5%
Output voltage max.	≤ 50 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	≤ 0.5 W
Output PstLM:	≤1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2, Push Dimming
Dimming range:	1％...100％
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac,< 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Model Number

(Full Model)

output

Current

Input

voltage

Output

voltage

Efficiency
@full load

Current ACCURACY

Power Factor

ID ECSCB 15/230/150-550 DALI NFC

150...550 mA

220...240 Vac

220...240 Vdc

10...40 V

87%

± 5%

> 0.9

Operating temperature	-20…+50°C
Storage temperature:	-25…+85°C
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc < 80°C: 50,000 hrs @ 230 Vac
Maximum Tc temperature:	85°C

Pcs./ carton	32 pcs
carton size	174 x 117 x 137 mm
Gross weight	2.04 kg
