160310 XZ-CH15B-420035-D

< Back

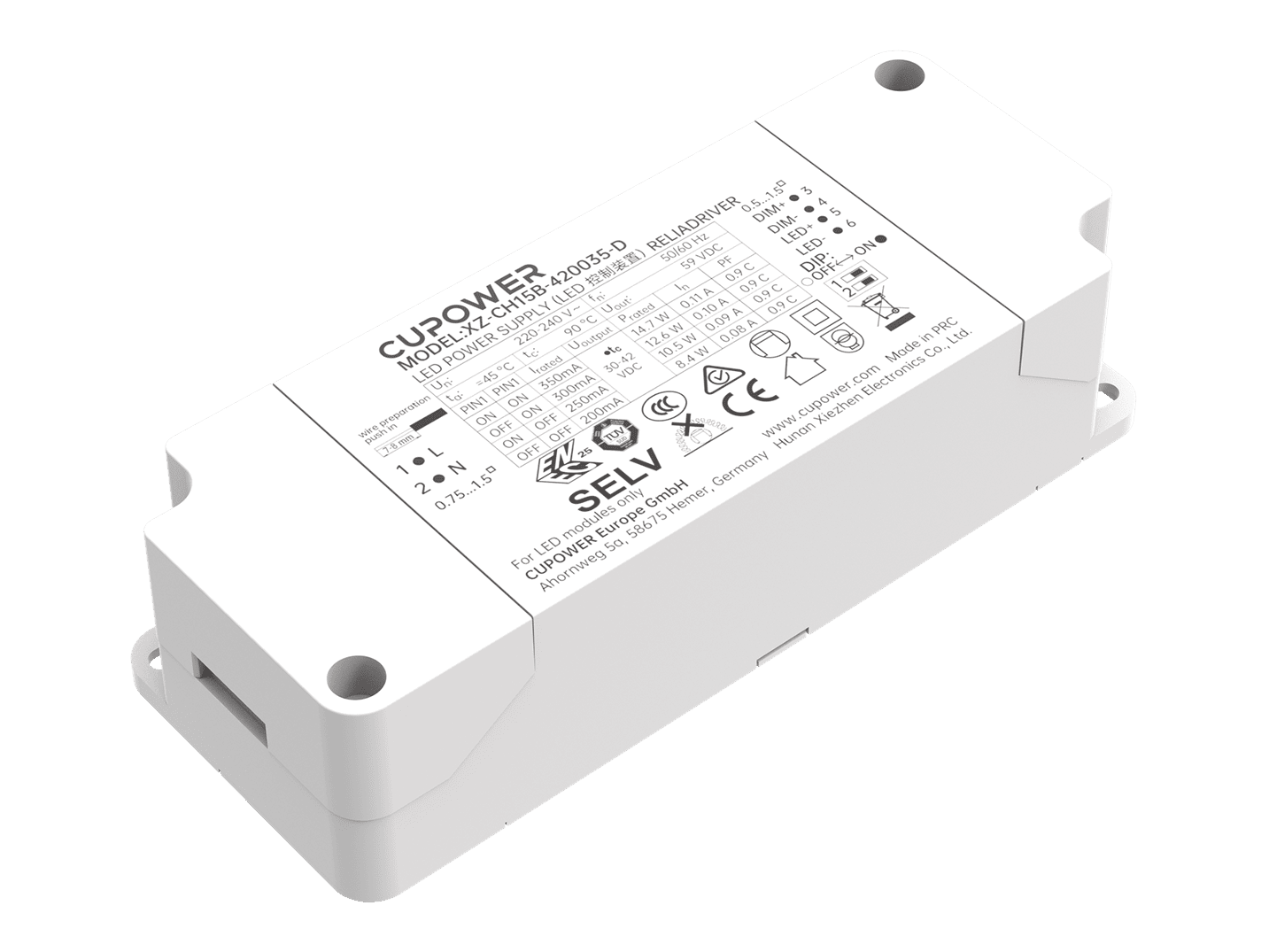

L115 x W45 x H29 mm

WT: 0.109 kg

Questions Order a Sample

Product description

Push terminal design, easy to install
High power factor, suitable for Class II luminaires
SELV 1-10 V dimming solution
Smooth dimming with dimming range 5-100% (amplitude dimming)
DIP switch for multi-current setting
Suitable for Class II luminaires
For 1.5 mm² wiring on primary and secondary side

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.11 A @ 230 Vac
THD:	≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 8.1 A、Inrush current Twidth: 106 μs
MCB Quantity B10A:	72
MCB Quantity C10A:	105
MCB Quantity C10A:	115
MCB Quantity B16A:	168
Output current tolerance:	± 5%
Output voltage max:	59 Vdc
Ripple:	≤ 5%
Standby power consumption:	< 0.5 W
Output PstLM:	<1 at full load @ rated input voltage
Output SVM:	<0.4 at full load @ rated input voltage
Dimming mode:	1-10V
Dimming range:	1％...100％
Adjustable output current：	DIP
Withstand voltage:	I/P-O/P: 3.75 KVac,＜ 5 mA 60 sec, I/P-DA: 1.5 KVac,＜ 5 mA 60 sec; O/P-DA: 1.5 KVac,＜ 5 mA 60 sec

Operating temperature:	-20…+45°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 75°C: 30,000 hrs; at Tc 65°C: 50,000 hrs @230 Vac
Maximum Tc temperature:	75°C

Pcs./ carton:	48 pcs
Carton size:	280 x 240 x 151 mm
Gross weight:	5.7 kg

Data sheets
Approvals
3D Drawing
Declaration

CB_XZ_CH15B_420035_D
CE-EMC_XZ_CH15B_420035_D
3C_XZ_CH15B_420035_D
SAA_XZ_CH15B_420035_D
Download all

New products

ID ECSCB 200/230/150-1050 NFC OUT

NAPPK PWM5CH-CAS

NALNR54-1400D-NFC-CAS

NALNR54-1400D-010V-NFC

*mandatory information

I would like to receive the CUPOWER Light News and personal information. I consent to the use of my provided personal data for the purpose of sending the newsletter. I acknowledge the information on data processing and the right to withdraw my consent, as outlined in the CUPOWER data protection information.

> More about CUPOWER data protection

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-CH15B-420035-D	200...350 mA	220...240 Vac	30...42 V	83%	± 5%	＞0.9
