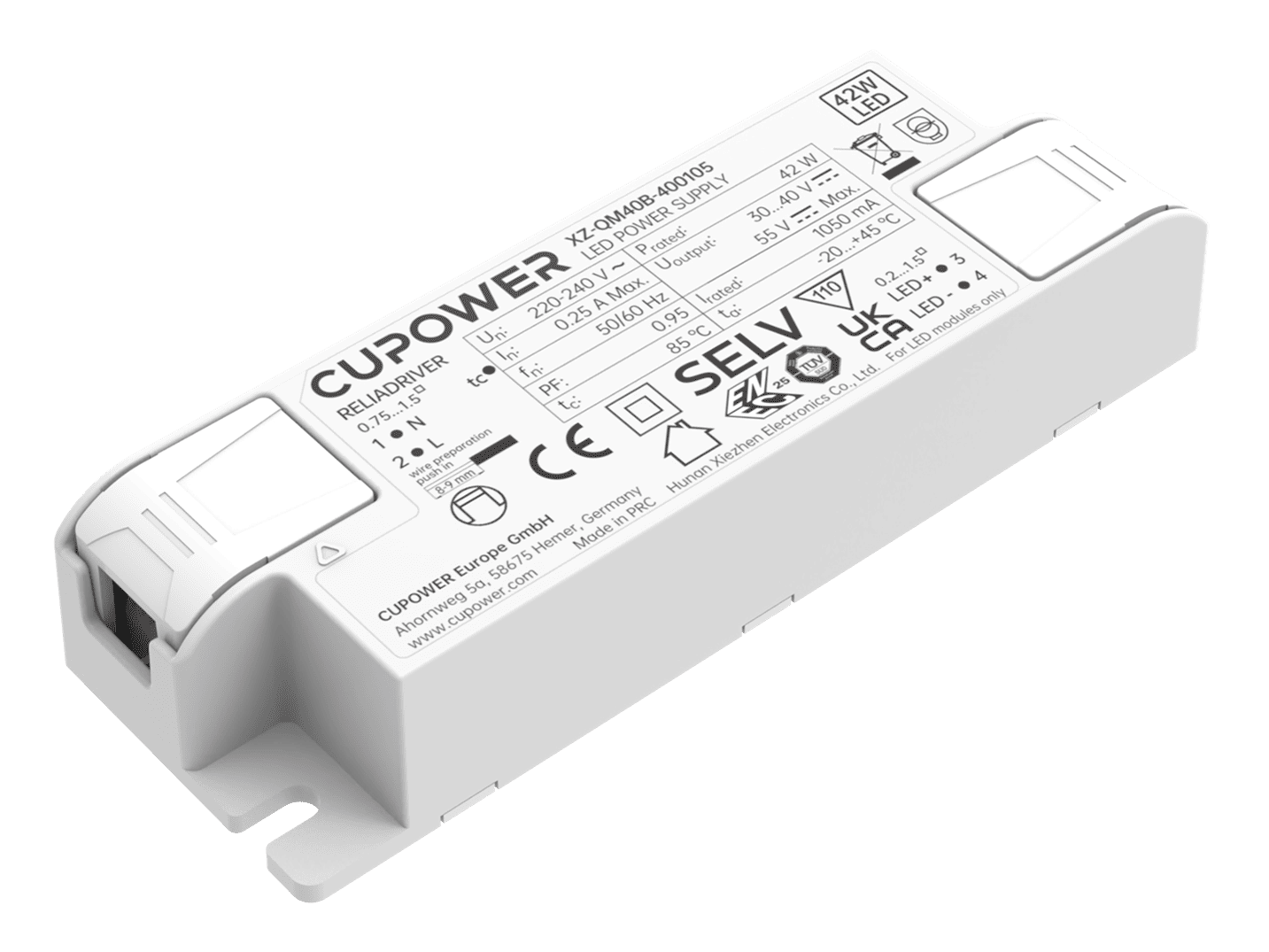

162994 XZ-QM40B-400XXX

< Back

L112 x W38.5 x H21 mm

WT: 0.062 kg

Questions Order a Sample

Product description

High power factor
Flicker-free
Push terminal design, easy to install
High efficiency, up to 92%
Suitable for Class II luminaires
For 1.5 mm2 wiring on primary and secondary side

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.23 A @ 230 Vac
THD:	10% at 38 Vdc load @ rated input voltage range
Inrush current [Aµs]:	Inrush current lpeak: 37.4A、Inrush current Twidth: 105 μs
MCB Quantity B10A:	17
MCB Quantity C10A:	28
MCB Quantity B16A:	27
MCB Quantity C16A:	45
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	55 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	N/A
Withstand voltage:	l/P-O/P: 3.75 KVac, < 5 mA 60 sec

Operating temperature:	-20…+45°C
Storage temperature:	-25…+85°C
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 75°C: 50,000 hrs @ 230 Vac
Maximum Tc temperature:	80°C

Pcs./ carton:	120 pcs
Carton size:	395 x 235 x 167 mm
Gross weight:	8.1 kg

Data sheets
Approvals
3D Drawing
Declaration

ENEC_XZ_QM40B_400XXX
CE-LVD_XZ_QM40B_400XXX
Download all

New products

ID ECSCB 200/230/150-1050 NFC OUT

CU-DT8-24-240-220...240-TW

ID ELSCB 50/230/350-1400 DALI NFC

ID ELSCB 42/230/300-1050 DALI NFC

*mandatory information

I would like to receive the CUPOWER Light News and personal information. I consent to the use of my provided personal data for the purpose of sending the newsletter. I acknowledge the information on data processing and the right to withdraw my consent, as outlined in the CUPOWER data protection information.

> More about CUPOWER data protection

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-QM40B-400XXX	750...1050 mA	220...240 Vac	30...40 V	92%	± 5%	> 0.95
