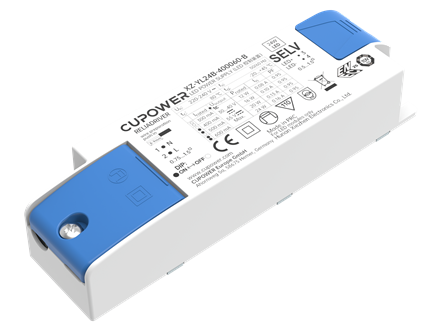

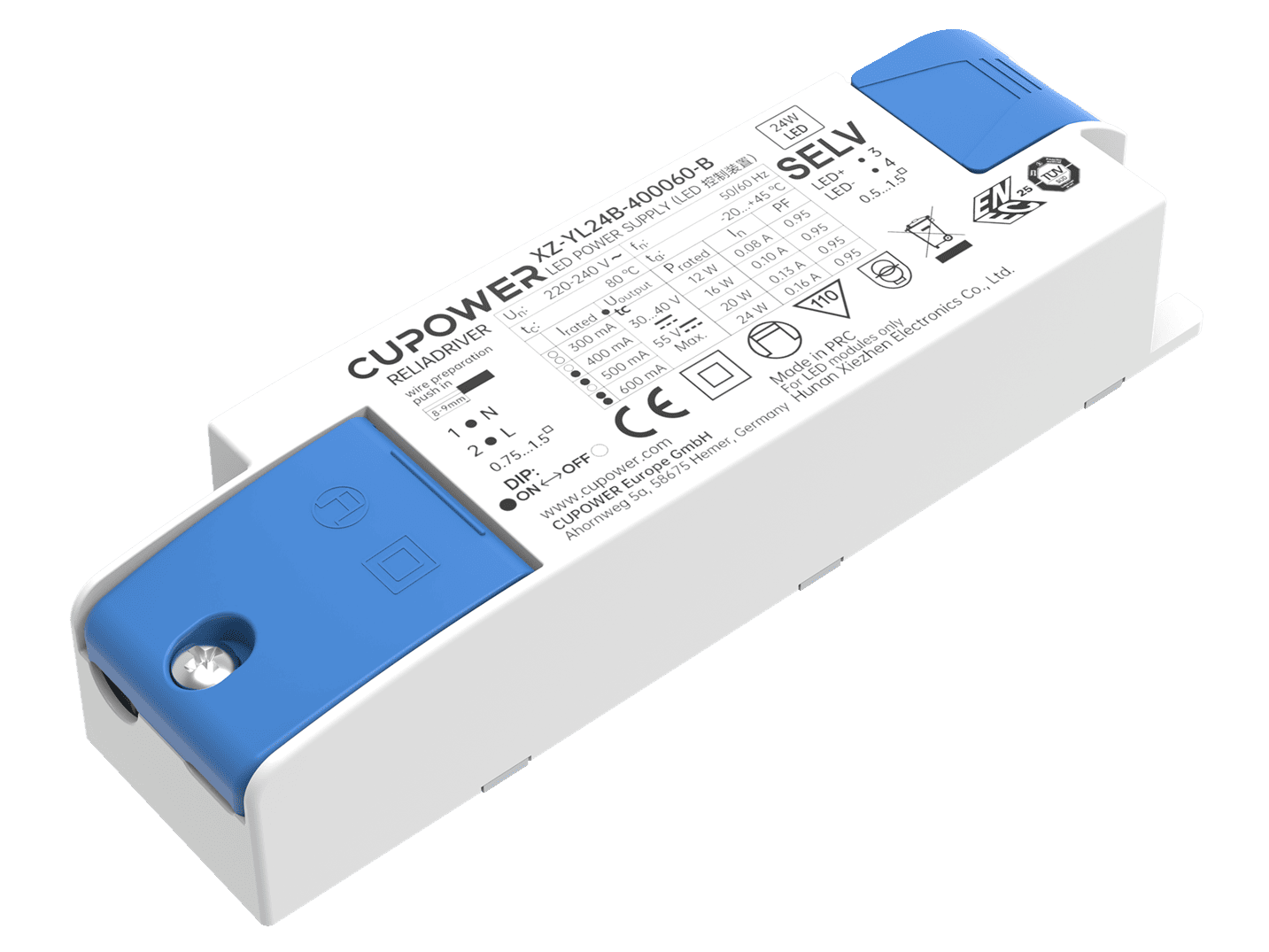

161805 XZ-YL24B-400060-B

< Back

L126 x W38 x H25 mm

WT: 0.72 kg

Questions Order a Sample

Product description

SELV power supply
Suitable for Class II luminaires
Flicker-free
DIP switch for multi-current setting
Supports 3-step color temperature selection via sliding switch (optional)
For 1.5 mm² wiring on primary and secondary side

General Data
Electrical Operating Data
Environmental Data
Packaging Information
Downloads

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.17 A @ 230 Vac
THD:	≤ 15%
Inrush current [Aµs]:	Inrush current lpeak: 14.2 A、Inrush current Twidth: 230 μs
MCB Quantity B10A:	19
MCB Quantity C10A:	32
MCB Quantity B16A:	31
MCB Quantity C16A:	52
Output current tolerance:	± 5%
Output voltage max:	55 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	< 1 at full load @ rated input voltage
Output SVM:	< 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.75 KVac,＜ 5 mA 60 sec

Operating temperature:	-20…+45°C
Storage temperature:	-25…+85℃
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 80°C: 30,000 hrs; at Tc 70°C: 50,000 hrs @230 Vac
Maximum Tc temperature:	80°C

Pcs./ carton:	100 pcs
Carton size:	390 x 262 x 158 mm
Gross weight:	8.4 kg

Data sheets
Approvals
3D Drawing
Declaration

CE-LVD_XZ_YL24B_400060_B
ENEC_XZ_YL24B_400060_B
CE-EMC_XZ_YL24B_400060_B
Download all

New products

ID ECSCB 200/230/150-1050 NFC OUT

NAPPK PWM5CH-CAS

NALNR54-1400D-NFC-CAS

NALNR54-1400D-010V-NFC

*mandatory information

I would like to receive the CUPOWER Light News and personal information. I consent to the use of my provided personal data for the purpose of sending the newsletter. I acknowledge the information on data processing and the right to withdraw my consent, as outlined in the CUPOWER data protection information.

> More about CUPOWER data protection

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-YL24B-400060-B	300...400...500...600 mA	220...240 Vac	30-40 V	87%	± 5%	> 0.9
